NEC PA703W Projector
NEC PA703W Key Features
- LCD Display Technology
- 7000 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- Wide XGA Resolution
- 4,000 hour lamp life (typical)
- 8,000:1 Contrast Ratio
- 10.2kg (22.5lb.)
- Native Widescreen
- Lens Shift
- Seamless Switching
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Mouse Emulation Remote
- Portrait Mode
- HDBaseT
- Picture-In-Picture
- Picture-and-Picture
- Interchangeable Lens System
- Lens-centred Design
- Logo capture and display
- PIN Code Security
- Edge Blending
- DICOM Simulation Mode
- 3D Projection Ready
- Stacking Function
- Monitor Out
- Network Control
NEC PA703W Downloads
- 3D Projection
- Church Projectors
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Portrait Mode Applications
- School Halls
NEC PA703W Specifications
Categories | 3D Ready Conference / Large Venue HDBaseT Interchangeable Lens Lens Shift |
Manufacturer | NEC (Click for rest of range) |
NEC PA703W Optical Features |
|
System | 3 * LCD |
Resolution | WXGA (1280*800) |
Aspect Ratio | 16:10 |
Lumens | 7,000 |
ECO Mode Lumens | 5,600 |
Colour Light Output | 7000 Lumens |
Eco Mode CLO | 5600 Lumens |
Contrast | 8,000:1 |
Lamp | 370W UHP AC |
Lamp Life | 4,000hrs. (5,000hrs. ECO mode) |
Interchangeable | Yes |
Image Size | 30"-300" diagonal |
Lens Shift | Vertical: +0.5 max/-0.1 Horizontal: 0.3 |
Keystone |
±40° (Vertical) |
±40° (Horizontal) | |
NEC PA703W Compatibility |
|
Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, 4k |
Video Resolutions | PAL, SECAM, NTSC, 4k, 1080p, 1080i, 720p |
Horizontal Freq. | 15-100kHz |
Vertical Freq. | 15-153Hz |

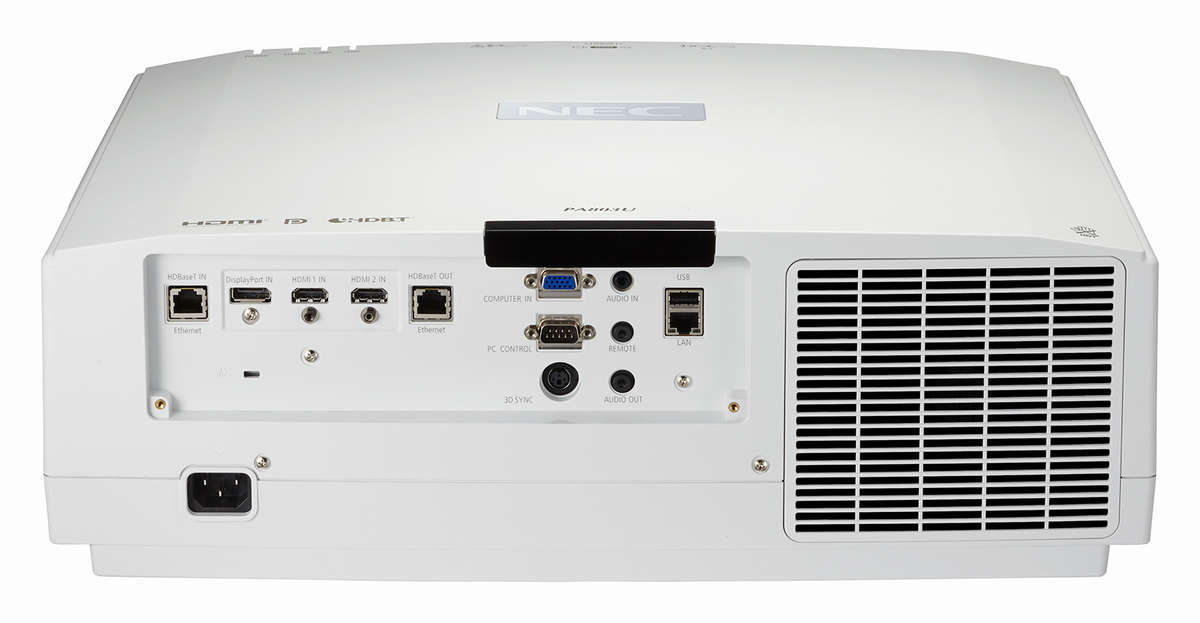

NEC PA703W Terminals |
|
HDMI | 2 |
DisplayPort | 1 |
RGBHV (15-pin HD) | 1 |
Monitor Out | Yes |
Audio In | 2 |
Audio Out | 1 |
USB | 1 |
RS-232 | 1 |
HDBaseT | 1 |
Network Ready | Yes |
NEC PA703W General |
|
Speakers | No |
Remote Control | NEC PA703W + Mouse Emulation |
Noise | 39db (33db ECO mode) |
Dimensions | 499*164*406mm (W*H*D) |
Weight | 10.20kg |
Power Supply | 100-240 V AC; 50 - 60 Hz |
Power Consumption | 482Watts |
Manufacturers Warranty | 3 year loan support |
Light Source Warranty | 6 months/1000 hours (whichever first) |
NEC PA703W Package Contents |
|
Accessories | IR Remote Control (RD - 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC PA703W Optional Lenses
![Projector lens](images/projector-lens.gif)
Description | Price | Inc. VAT |
NEC NP30ZL Ultra Short Throw Zoom Lens | £1306 | £1567.20 |
NEC NP40ZL Motorized Ultra Short Throw Zoom Lens | £972 | £1166.40 |
NEC NP11FL Fixed wide angle for NEC PA series Lens | Discontinued | |
NEC NP12ZL Short zoom for the NEC PA series Lens | £815 | £978.00 |
NEC NP41ZL Motorized Mid to Semi Long Throw Lens | £393 | £471.60 |
NEC NP13ZL Middle zoom for the NEC PA series Lens | £183 | £219.60 |
NEC NP14ZL Middle zoom for the NEC PA series Lens | Discontinued | |
NEC NP42ZL Mid to Long Throw Zoom Lens | Discontinued | |
NEC NP43ZL Motorized Semi Long Throw Zoom Lens | £756 | £907.20 |
NEC PA703W Accessories
Description | Price | Inc. VAT |
Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
