Christie DWU23-HS Projector &
Christie 900-300349-01 Projector Lens

Christie DWU23-HS projector lens image

Christie DWU23-HS

  • 21000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 6000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 41.6kg (91.7lb.)
  • 5 years parts and labour on the projector warranty
  • Christie DWU23-HS
Christie DWU23-HS & Christie 900-300349-01
£35452 (£42542.40 inc. VAT)
Availability:
Christie 900-300349-01 projector lens image

Christie 900-300349-01
Suitable For

Christie 900-300349-01 Lens Only
£11933 (£14319.60 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
0.76m 0.76m 780.39
Throw Chard for Christie DWU23-HS fitted with Christie 900-300349-01

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.19 0.19 0.14 sq.m. 13873.52
1.00 0.56 1.15 0.38 0.38 0.56 sq.m. 3468.38
1.50 0.84 1.72 0.57 0.57 1.27 sq.m. 1541.50
2.00 1.12 2.29 0.76 0.76 2.25 sq.m. 867.10
2.50 1.41 2.87 0.95 0.95 3.52 sq.m. 554.94
3.00 1.69 3.44 1.14 1.14 5.06 sq.m. 385.38
4.00 2.25 4.59 1.52 1.52 9.00 sq.m. 216.77
5.00 2.81 5.74 1.90 1.90 14.06 sq.m. 138.74

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

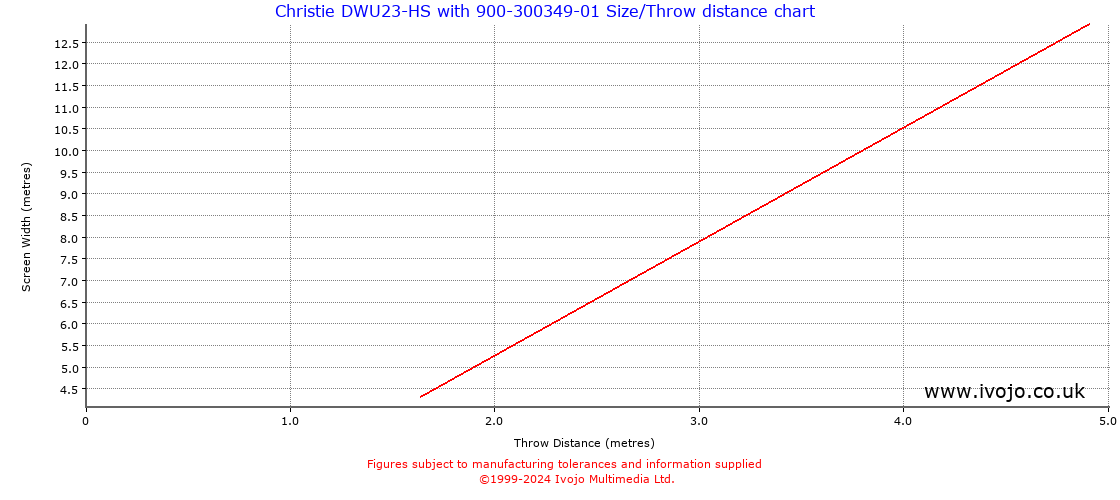

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 2.63 2.63
2 5.26 5.26
3 7.89 7.89
4 10.53 10.53
5 13.16 13.16
6 15.79 15.79
7 18.42 18.42
8 21.05 21.05

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
