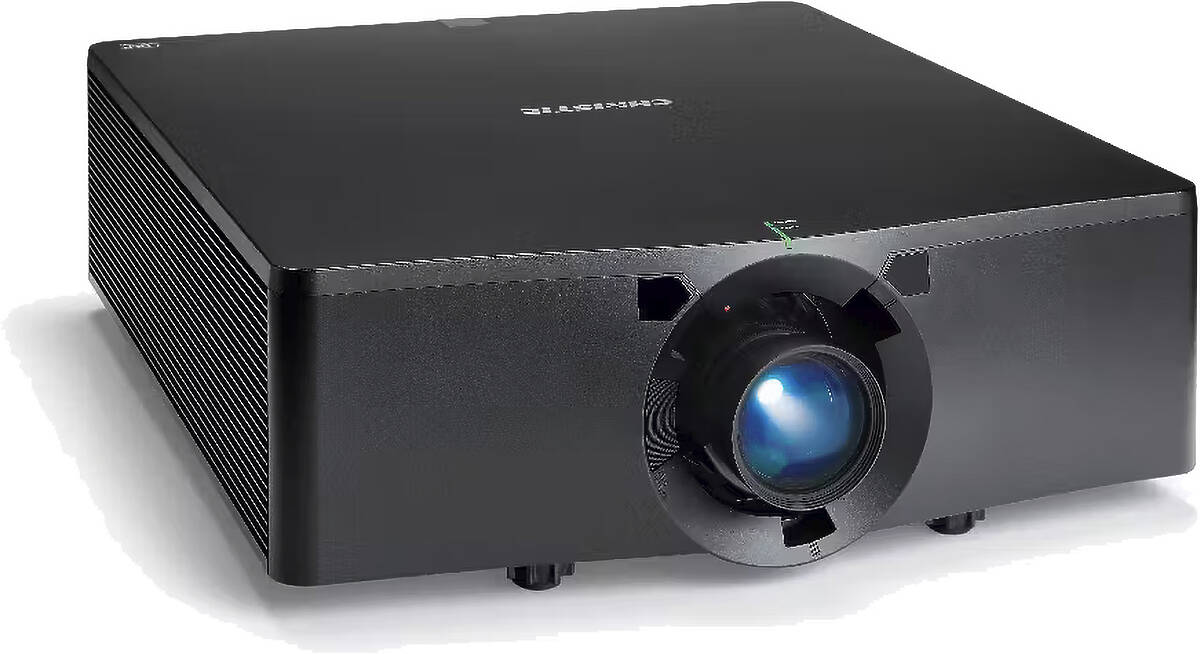

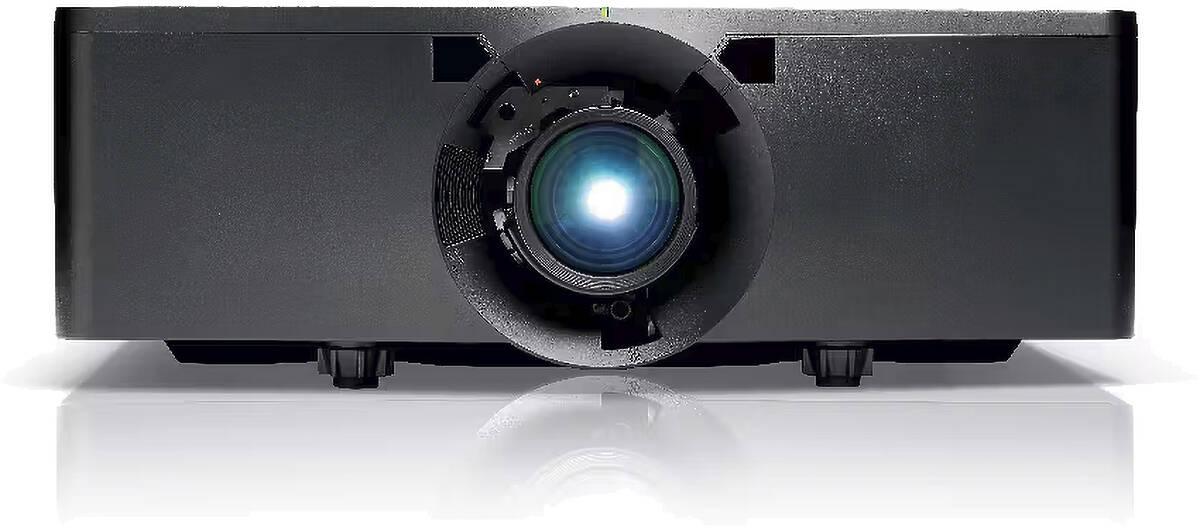

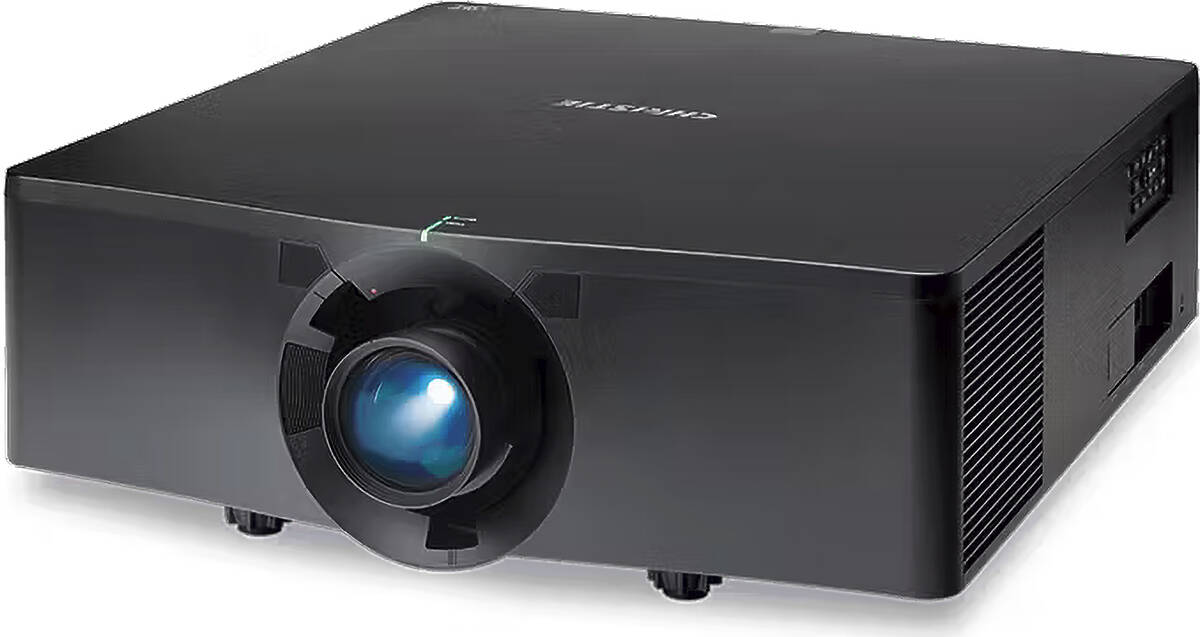

Christie DWU23-HS Projector
£23519 (£28222.80 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Christie DWU23-HS Key Features
- DLP Display Technology
- 21,000 Lumens
- 7 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 6,000:1 Contrast Ratio
- 41.6kg (91.7lb.)
- 3 Segment 3 Speed Colour Wheel
- 360° Installation
- Native Widescreen
- Lens Shift
- 12v Trigger
- Portrait Mode
- HDBaseT
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Warrantied for 24/7 use
- DICOM Simulation Mode
- 3D Projection Ready
- Monitor Out
- Network Control
- 3D Projection
- Exhibitions and large venues
- Horizontal Surface Projection
- Lecture Theatres
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
- Post production and screening
- Super bright applications
Christie DWU23-HS Specifications
| Categories | 3D Ready Conference / Large Venue HDBaseT Interchangeable Lens LED/Laser HD |
| Manufacturer | Christie (Click for rest of range) |
Christie DWU23-HS Optical Features |
|
| System | 1 × 0.96" DMD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 21,000 |
| Contrast | 6,000:1 |
| Lamp | Laser phosphor with Christie BoldColor |
| Lamp Life | 20,000hrs. |
| Lens | Click for optional lenses |
| Interchangeable | Yes |
| Image Size | 30"-300" diagonal |
| Lens Shift | No |
Christie DWU23-HS Compatibility |
|
| Computer Resolutions | UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Resolutions | 4K, UHD, HD, 720p, PAL, SECAM, NTSC |
| Horizontal Freq. | 15-91kHz |
| Vertical Freq. | 24-120Hz |
Christie DWU23-HS Terminals |
|
| HDMI | 2 |
| DisplayPort | 1 |
| RGBHV (15-pin HD) | 1 |
| HD-SDI | 1 |
| Monitor Out | Yes |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| 12v Trigger | Yes |
| Network Ready | Yes |
Christie DWU23-HS General |
|
| Speakers | No |
| Remote Control | Christie DWU23-HS only |
| Noise | 44db (36db ECO mode) |
| Dimensions | 596*203*677mm (W*H*D) |
| Weight | 41.60kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 1270Watts |
| Manufacturers Warranty | 5 years parts and labour on the projector |
| Light Source Warranty | 5 Year/20,000 Hours (Whichever first) |
Christie DWU23-HS Package Contents |
|
| Accessories | Standard: IR remote w/ wired remote jack (wire not included) AC line cord for projector Product Safety Guide |
Additional Specs |
|
| Contrast Ratio | 4,000,000:1 (Dynamic) |
| Pixel Clock Rate | 600MHz |
| Heat Dissipation | Normal mode: 3071 BTU/hr Eco mode: 2474 BTU/hr Eco2 mode: 1590 BTU/hr |
| Input Details | HDMI 2.0b × 2 (HDCP 1.4/2.2) (one on rear panel, one on bottom) 3G-SDI × 1 (BNC) DisplayPort × 1 USB × 1 (Type A) HDBaseT (RJ45) × 1 Signals: HDTV formats VGA through to WUXGA (1920 × 1200) - Horizontal & vertical scaling while maintaining aspect ratio (all inputs) |
| Output Connectivity | 3GSDI × 1 (BNC) HDMI × 1 (HDMI out) |
| Control/Networking | HDBaseT (RJ45 × 1) RJ45 × 1 (Ethernet Control over wired network connection) RS232 × 1 Built-in backlit keypad IR Remote Remote in: 3.5mm stereo female (provides serial communications and power) Loop out available for daisy chaining DC JACK 12VDC, 200 mA |
| Shipping Weight | 117.7lbs (53.3kg) |
| Shipping Dimensions | 965 × 795 × 365mm |
| Optional Accessories | Christie One Mount Plus (140-117100-XX), One Mount Extender Rod (121-125109-XX), One Mount Rigging Kit (used with One Mount, One Mount Plus Extender Rod) (121-126100-XX) , Christie One Rigging Frame (140-113106-XX), Fog Filter with Frame (003-005714-XX), Fog Filter module (003-005715-XX) |
Ivojo Multimedia are approved Christie dealers and supply only UK products with full UK warranties.
Christie DWU23-HS Optional Lenses
| Description | Price | Inc. VAT |

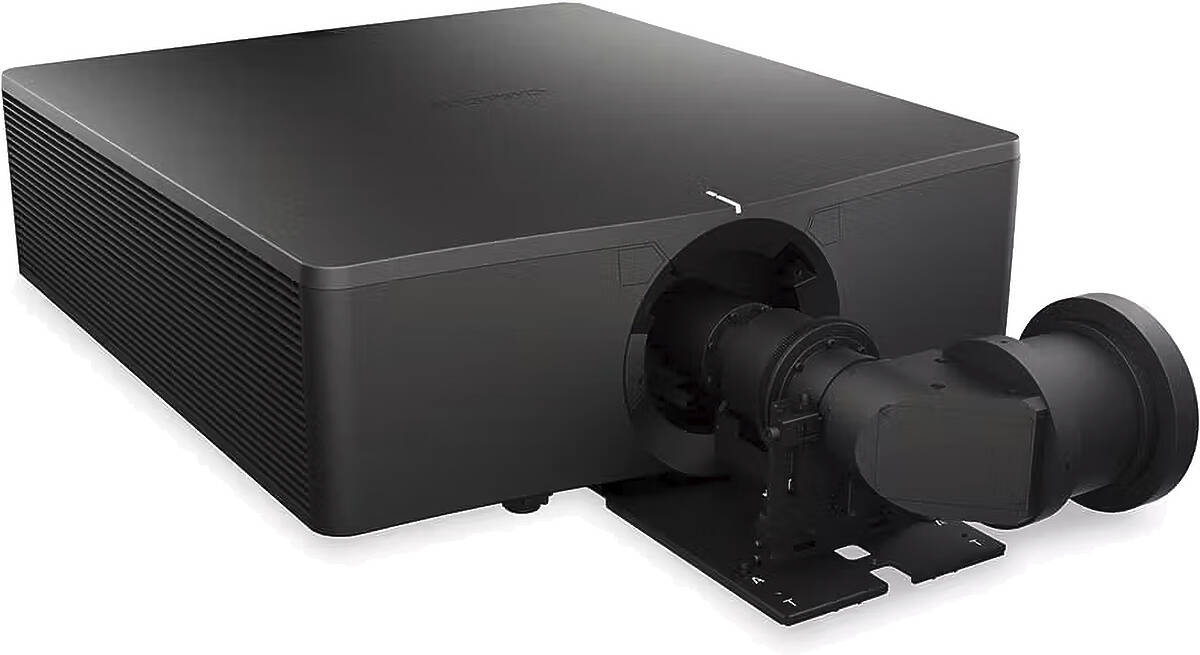

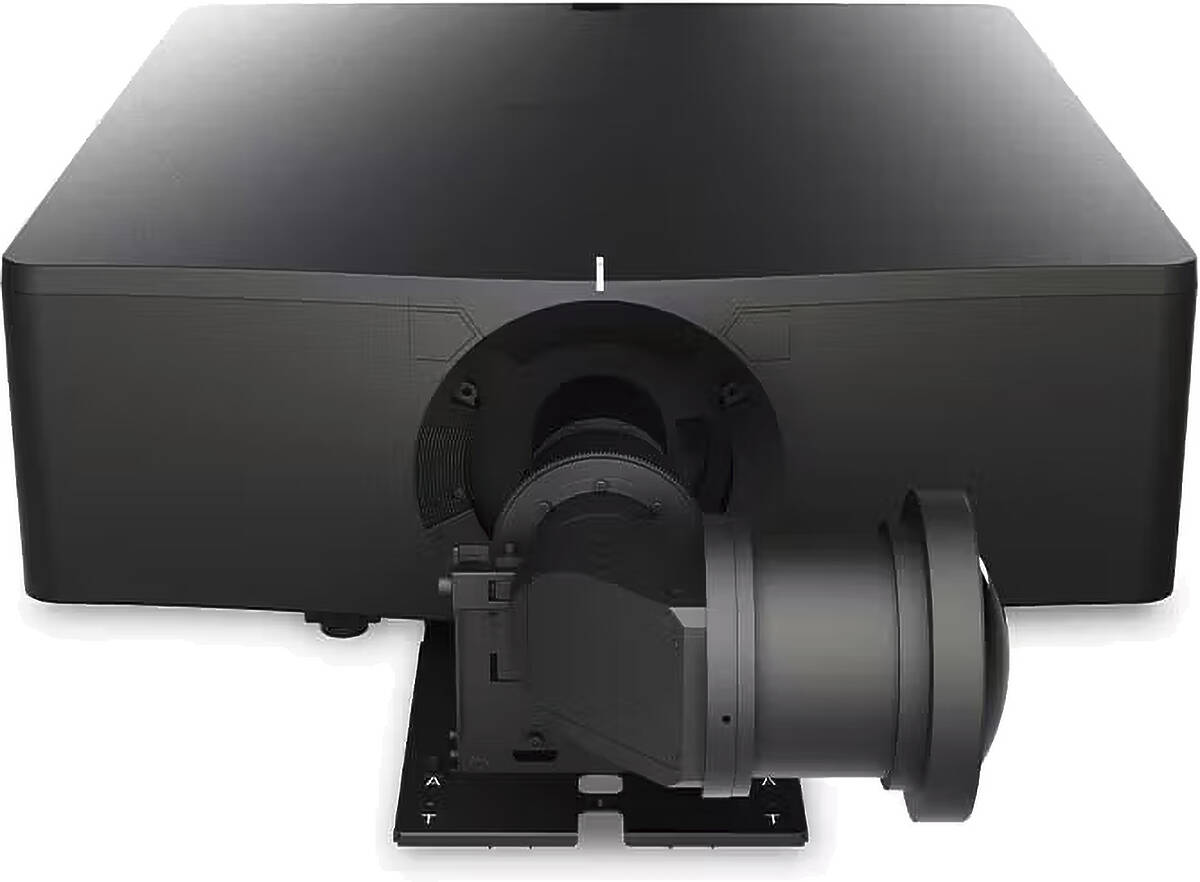

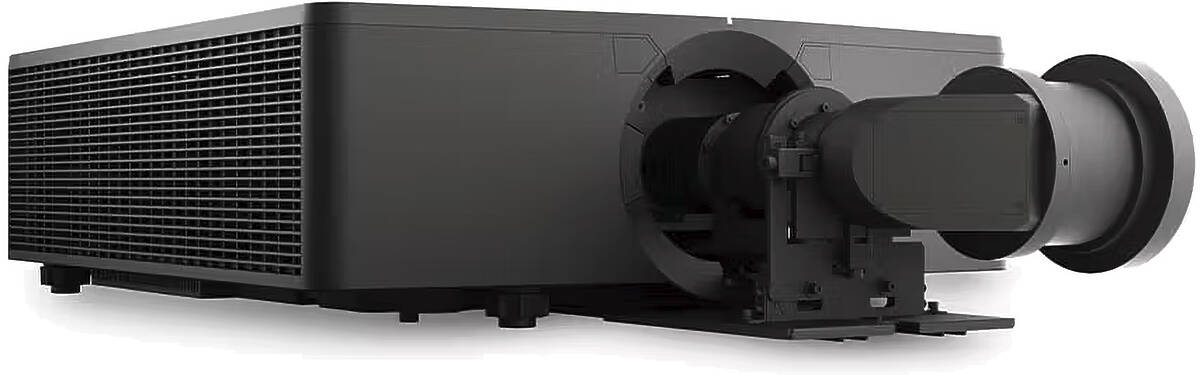

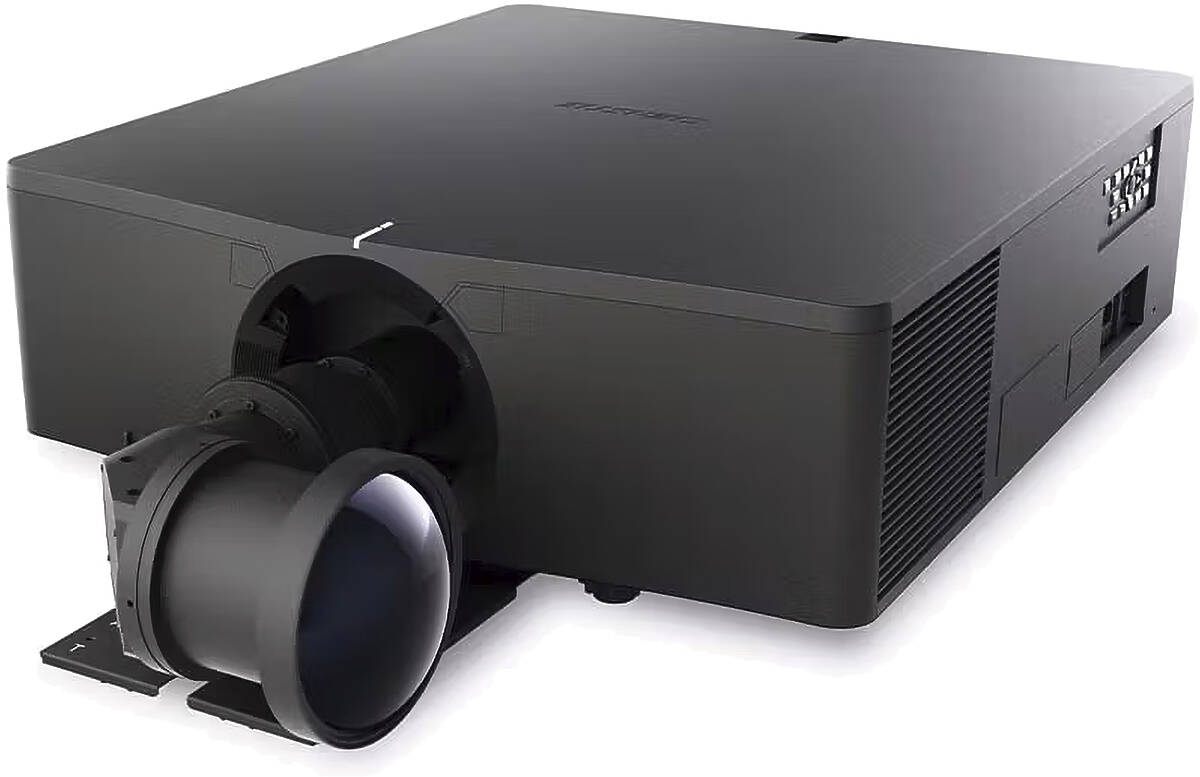

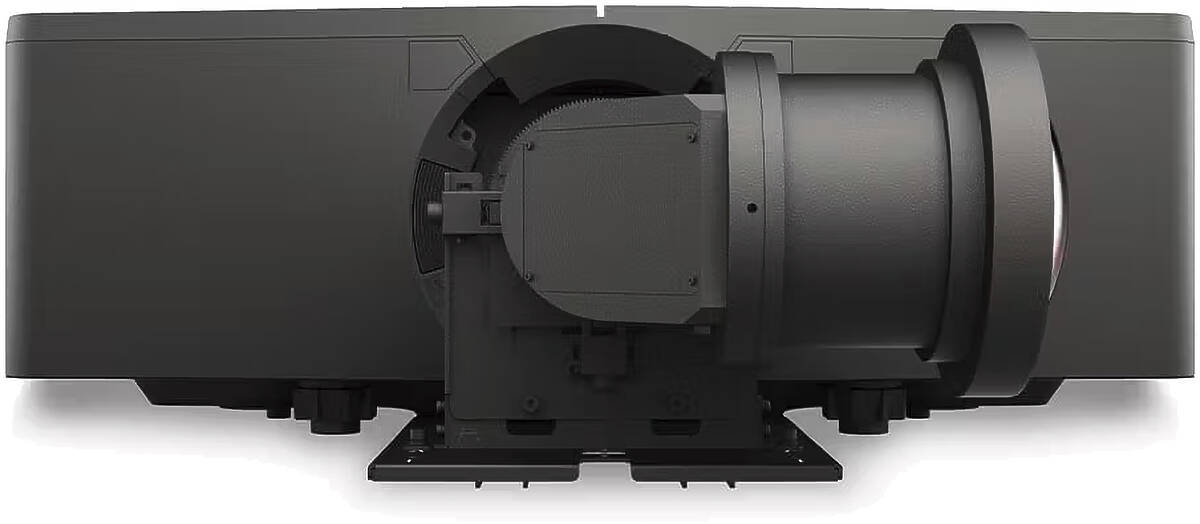

| Christie 900-300349-01 Ultra Short Throw Fixed (HD/WUXGA) Lens | £11933 | £14319.60 |
| Christie 140-114107-02 Short Throw Zoom (HD/WUXGA Models Only) Lens | £2642 | £3170.40 |
| Christie 140-115108-02 Short Throw Zoom (HD/WUXGA Models Only) Lens | £1708 | £2049.60 |
| Christie 140-109101-02 Semi-Short Throw Zoom Lens | £3287 | £3944.40 |
| Christie 140-110103-01 Standard Throw Zoom Lens | £2620 | £3144.00 |
| Christie 140-111104-01 Semi-Long Throw Zoom Lens | £2958 | £3549.60 |
| Christie 140-116109-01 Long Throw Zoom Lens | £3867 | £4640.40 |
Christie DWU23-HS Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case XL Hard case with castors for projectors weighing over 25kg | £247.00 | £296.40 |
Christie DWU23-HS Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Panasonic PT-RQ25KEJ | 3 CHIP DLP | 20000 | 35 | £64814 | £77776.80 |
| Panasonic PT-RZ24KEJ | 3 CHIP DLP | 20000 | 35 | £53757 | £64508.40 |
