Christie 4K10-HS Projector &
Christie 900-300349-01 Projector Lens

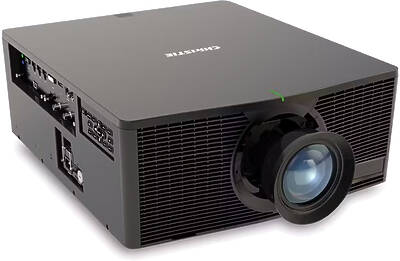

Christie 4K10-HS
- 11000 ANSI Lumens
- 4K UH 3840*2160 Native Resolution
- 1100:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 34kg (75.0lb.)
- 3 years parts and labour on the projector warranty
- Christie 4K10-HS
Christie 4K10-HS & Christie 900-300349-01
£29682 (£35618.40 inc. VAT)
Availability:
Availability:
Christie 900-300349-01
Suitable For
Christie 900-300349-01 Lens Only
£11933 (£14319.60 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
1.16m | 1.16m | 454.25 |

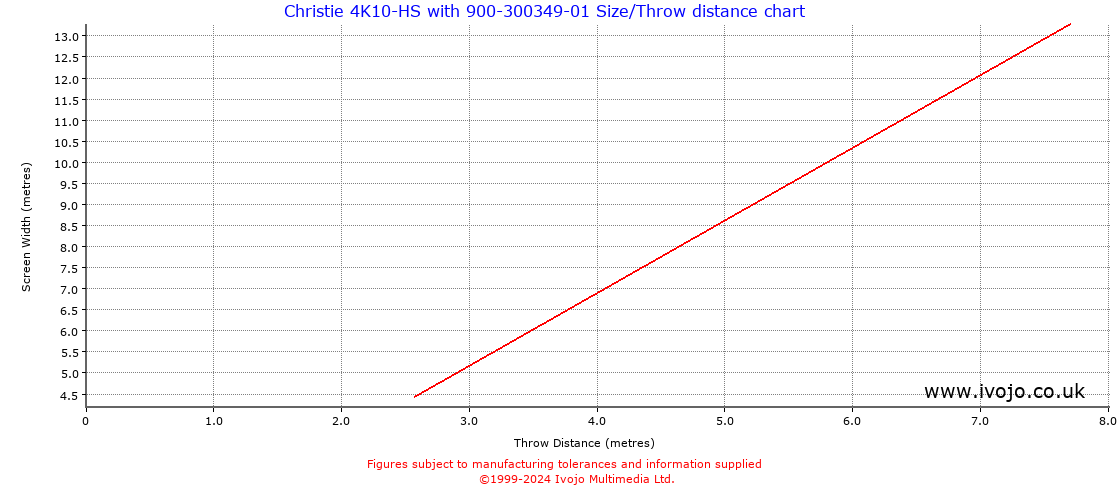

![Throw Chard for Christie 4K10-HS fitted with Christie 900-300349-01](images/throw-chart/large/christie/christie-4k10-hs-900-300349-01.jpg)
Screen Size Table (Figures in metres)
Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
0.50 | 0.28 | 0.57 | 0.29 | 0.29 | 0.14 sq.m. | 7267.08 |
1.00 | 0.56 | 1.15 | 0.58 | 0.58 | 0.56 sq.m. | 1816.77 |
1.50 | 0.84 | 1.72 | 0.87 | 0.87 | 1.27 sq.m. | 807.45 |
2.00 | 1.12 | 2.29 | 1.16 | 1.16 | 2.25 sq.m. | 454.19 |
2.50 | 1.41 | 2.87 | 1.45 | 1.45 | 3.52 sq.m. | 290.68 |
3.00 | 1.69 | 3.44 | 1.74 | 1.74 | 5.06 sq.m. | 201.86 |
4.00 | 2.25 | 4.59 | 2.32 | 2.32 | 9.00 sq.m. | 113.55 |
5.00 | 2.81 | 5.74 | 2.90 | 2.90 | 14.06 sq.m. | 72.67 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.
Throw Distance Table (Figures in metres)
Distance | Minimum Width | Maximum Width |
1 | 1.72 | 1.72 |
2 | 3.45 | 3.45 |
3 | 5.17 | 5.17 |
4 | 6.90 | 6.90 |
5 | 8.62 | 8.62 |
6 | 10.34 | 10.34 |
7 | 12.07 | 12.07 |
8 | 13.79 | 13.79 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
