Christie DWU23-HS Projector &
Christie 140-116109-01 Projector Lens

Christie DWU23-HS projector lens image

Christie DWU23-HS

  • 21000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 6000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 41.6kg (91.7lb.)
  • 5 years parts and labour on the projector warranty
  • Christie DWU23-HS
Christie DWU23-HS & Christie 140-116109-01
£27386 (£32863.20 inc. VAT)
Availability:
Christie 140-116109-01 projector lens image

Christie 140-116109-01
Suitable For

Christie 140-116109-01 Lens Only
£3867 (£4640.40 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
8.00m 14.40m 780.39

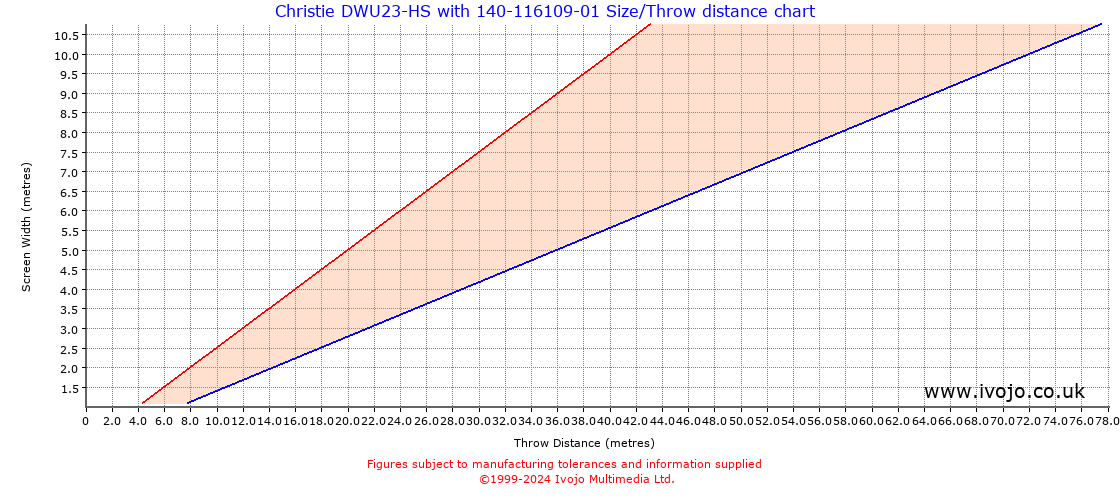

Throw Chard for Christie DWU23-HS fitted with Christie 140-116109-01

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 2.00 3.60 0.14 sq.m. 13873.52
1.00 0.56 1.15 4.00 7.20 0.56 sq.m. 3468.38
1.50 0.84 1.72 6.00 10.80 1.27 sq.m. 1541.50
2.00 1.12 2.29 8.00 14.40 2.25 sq.m. 867.10
2.50 1.41 2.87 10.00 18.00 3.52 sq.m. 554.94
3.00 1.69 3.44 12.00 21.60 5.06 sq.m. 385.38
4.00 2.25 4.59 16.00 28.80 9.00 sq.m. 216.77
5.00 2.81 5.74 20.00 36.00 14.06 sq.m. 138.74

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.14 0.25
2 0.28 0.50
3 0.42 0.75
4 0.56 1.00
5 0.69 1.25
6 0.83 1.50
7 0.97 1.75
8 1.11 2.00

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
