Christie 4K10-HS Projector &
Christie 140-116109-01 Projector Lens

Christie 4K10-HS projector lens image

Christie 4K10-HS

  • 11000 ANSI Lumens
  • 4K UH 3840*2160 Native Resolution
  • 1100:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 34kg (75.0lb.)
  • 3 years parts and labour on the projector warranty
  • Christie 4K10-HS
Christie 4K10-HS & Christie 140-116109-01
£21616 (£25939.20 inc. VAT)
Availability:
Christie 140-116109-01 projector lens image

Christie 140-116109-01
Suitable For

Christie 140-116109-01 Lens Only
£3867 (£4640.40 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
11.32m 21.60m 454.25

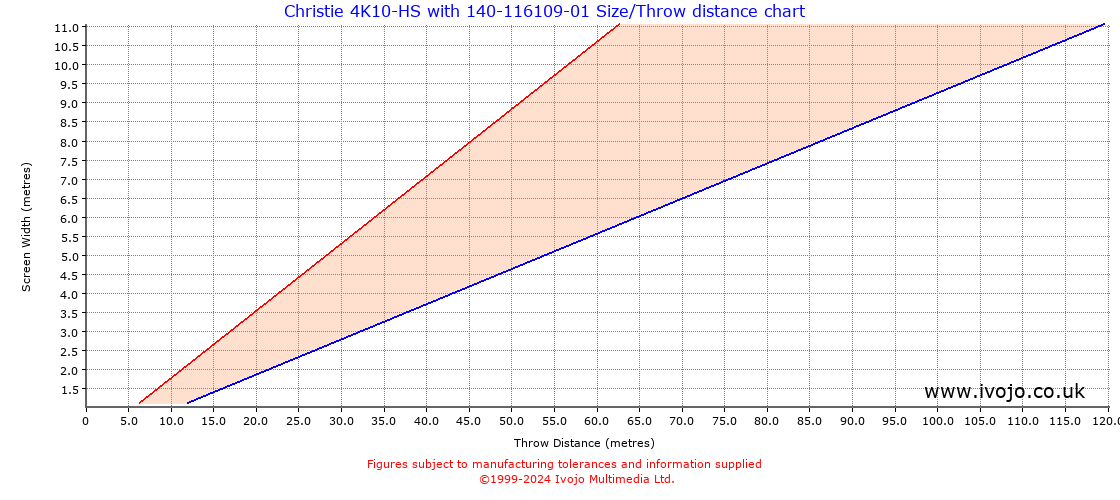

Throw Chard for Christie 4K10-HS fitted with Christie 140-116109-01

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 2.83 5.40 0.14 sq.m. 7267.08
1.00 0.56 1.15 5.66 10.80 0.56 sq.m. 1816.77
1.50 0.84 1.72 8.49 16.20 1.27 sq.m. 807.45
2.00 1.12 2.29 11.32 21.60 2.25 sq.m. 454.19
2.50 1.41 2.87 14.15 27.00 3.52 sq.m. 290.68
3.00 1.69 3.44 16.98 32.40 5.06 sq.m. 201.86
4.00 2.25 4.59 22.64 43.20 9.00 sq.m. 113.55
5.00 2.81 5.74 28.30 54.00 14.06 sq.m. 72.67

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.09 0.18
2 0.19 0.35
3 0.28 0.53
4 0.37 0.71
5 0.46 0.88
6 0.56 1.06
7 0.65 1.24
8 0.74 1.41

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
