Christie DWU19-HS Projector &
Christie 140-115108-02 Projector Lens

Christie DWU19-HS projector lens image

Christie DWU19-HS

  • 17000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 6000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 41.6kg (91.7lb.)
  • 5 years parts and labour on the projector warranty
  • Christie DWU19-HS
Christie DWU19-HS & Christie 140-115108-02
£20900 (£25080.00 inc. VAT)
Availability:
Christie 140-115108-02 projector lens image

Christie 140-115108-02
Suitable For

Christie 140-115108-02 Lens Only
£1708 (£2049.60 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.04m 2.72m 631.74

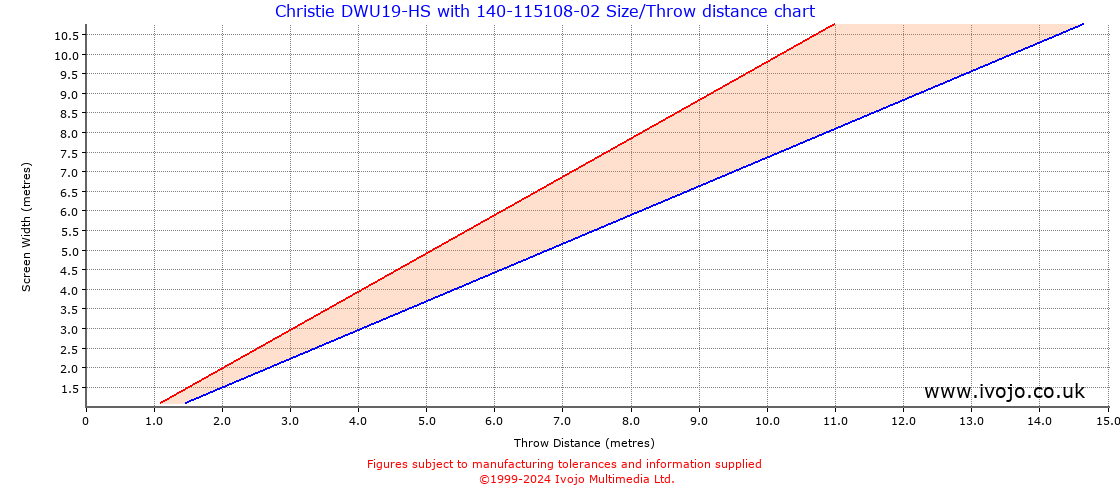

Throw Chard for Christie DWU19-HS fitted with Christie 140-115108-02

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.51 0.68 0.14 sq.m. 11230.95
1.00 0.56 1.15 1.02 1.36 0.56 sq.m. 2807.74
1.50 0.84 1.72 1.53 2.04 1.27 sq.m. 1247.88
2.00 1.12 2.29 2.04 2.72 2.25 sq.m. 701.93
2.50 1.41 2.87 2.55 3.40 3.52 sq.m. 449.24
3.00 1.69 3.44 3.06 4.08 5.06 sq.m. 311.97
4.00 2.25 4.59 4.08 5.44 9.00 sq.m. 175.48
5.00 2.81 5.74 5.10 6.80 14.06 sq.m. 112.31

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.74 0.98
2 1.47 1.96
3 2.21 2.94
4 2.94 3.92
5 3.68 4.90
6 4.41 5.88
7 5.15 6.86
8 5.88 7.84

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
