Christie 4K10-HS Projector &
Christie 140-109101-02 Projector Lens

Christie 4K10-HS projector lens image

Christie 4K10-HS

  • 11000 ANSI Lumens
  • 4K UH 3840*2160 Native Resolution
  • 1100:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 34kg (75.0lb.)
  • 3 years parts and labour on the projector warranty
  • Christie 4K10-HS
Christie 4K10-HS & Christie 140-109101-02
£21036 (£25243.20 inc. VAT)
Availability:
Christie 140-109101-02 projector lens image

Christie 140-109101-02
Suitable For

Christie 140-109101-02 Lens Only
£3287 (£3944.40 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
3.40m 4.24m 454.25

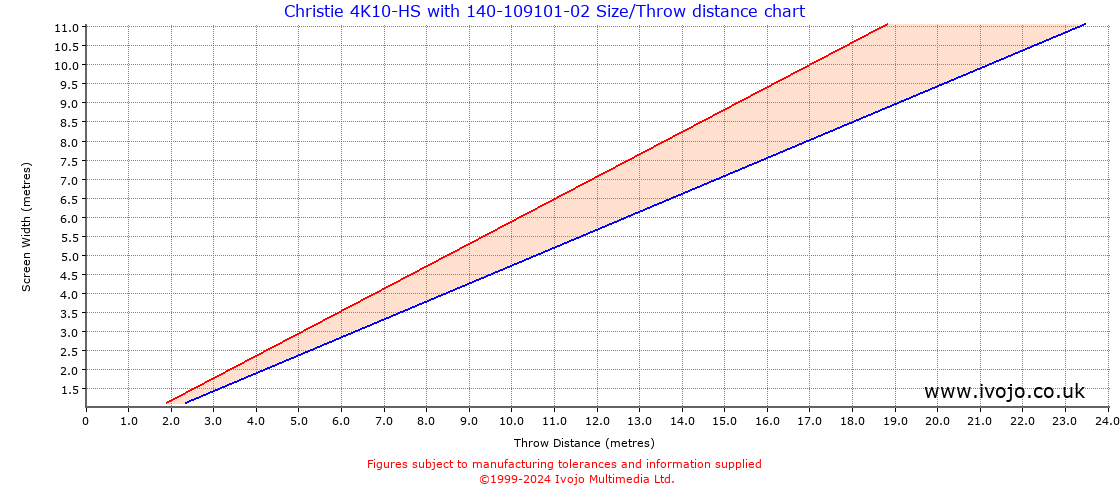

Throw Chard for Christie 4K10-HS fitted with Christie 140-109101-02

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.85 1.06 0.14 sq.m. 7267.08
1.00 0.56 1.15 1.70 2.12 0.56 sq.m. 1816.77
1.50 0.84 1.72 2.55 3.18 1.27 sq.m. 807.45
2.00 1.12 2.29 3.40 4.24 2.25 sq.m. 454.19
2.50 1.41 2.87 4.25 5.30 3.52 sq.m. 290.68
3.00 1.69 3.44 5.10 6.36 5.06 sq.m. 201.86
4.00 2.25 4.59 6.80 8.48 9.00 sq.m. 113.55
5.00 2.81 5.74 8.50 10.60 14.06 sq.m. 72.67

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.47 0.59
2 0.94 1.18
3 1.42 1.76
4 1.89 2.35
5 2.36 2.94
6 2.83 3.53
7 3.30 4.12
8 3.77 4.71

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
