Vogels PFS3508

Vertical mounting arms for LCD/LED monitors and commercial TV's
Max. 160kg; -3/+7°Tilt; VESA 200-800mm

Vogels PFS3508 (7235080)

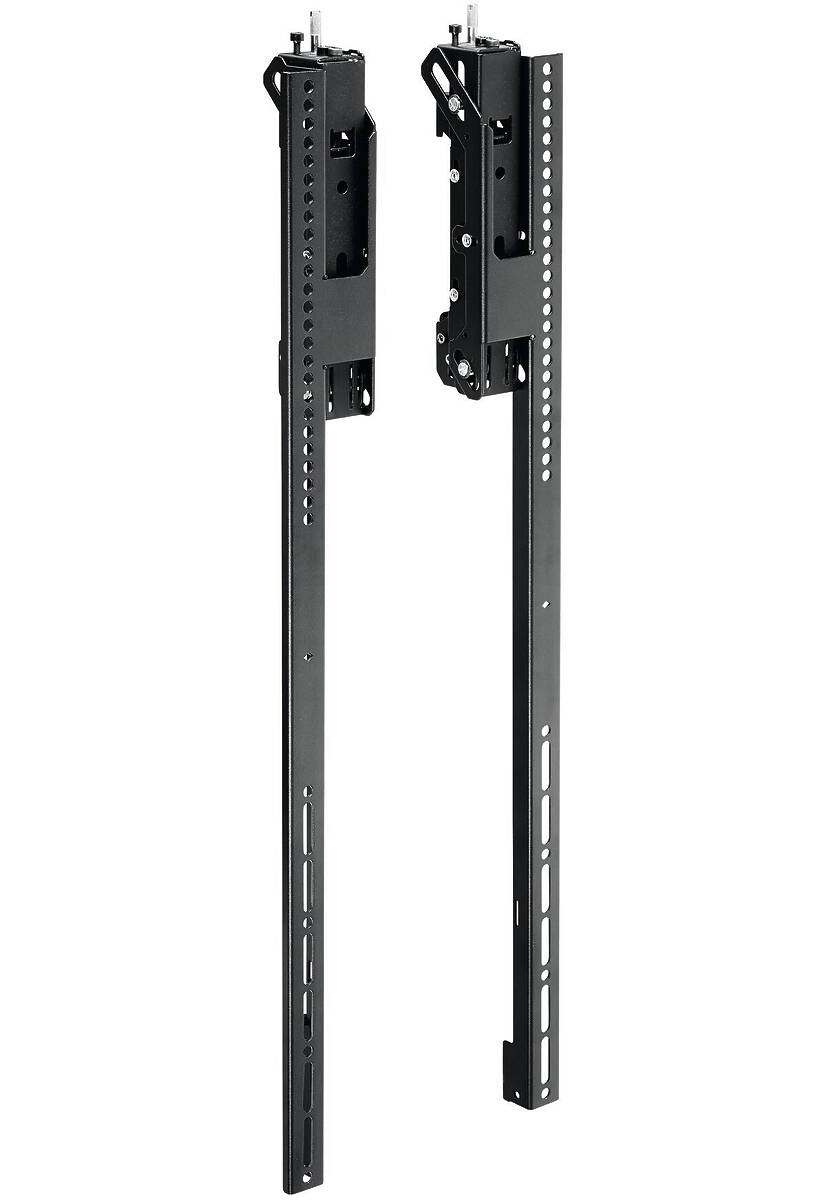

The Vogel's PFS3508 adjustable display strip is part of a unique and flexible system that is ideal for video wall setups and in-line menu boards. With this modular concept, based on Connect-it, you create a video wall solution for almost every set-up requirement.
The video wall solution consists of interface bars (PFB34xx) and one set of multi directional (3D) adjustable interface display strips (PFS35xx) per display. Vogel’s offers various lengths of interface bars and two different lengths of interface display strips, with fitment 400 mm and 800 mm.

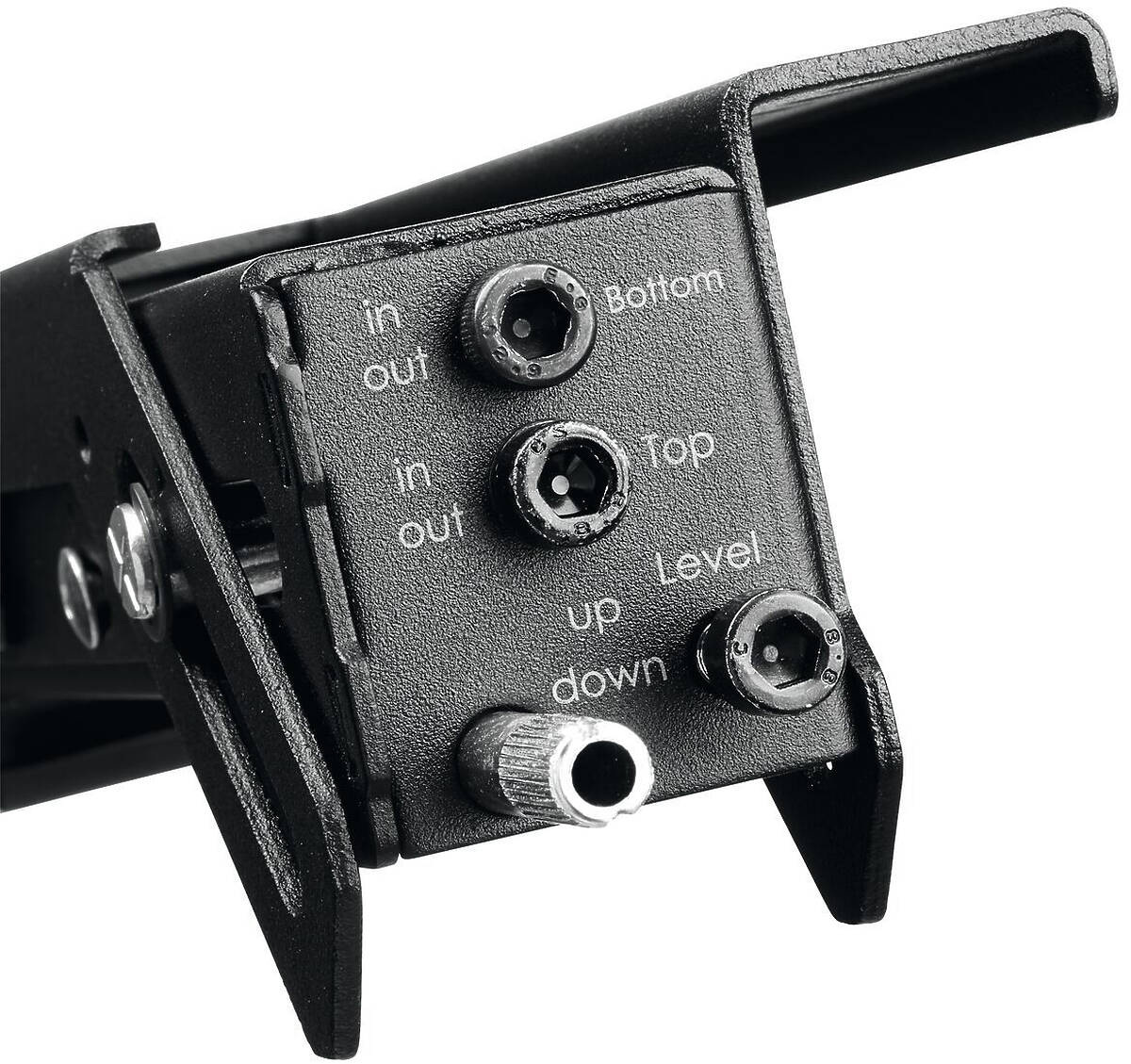

The PFS 3508 is a unique top adjustable display strip, which can be adjusted in 3 directions (3D) to achieve an overall seamless and flawless look. The PFS 3508 has a vertical fitment of 800 mm and has horizontal, depth and tilt adjustment.
Once the displays are in place, the built in service position makes it possible to easily connect cables to the displays. The service position also allows each individual display to be removed for maintenance or replacement. Even if the display in the middle of the video wall. Additional features include the lock for lateral shift to avoid horizontal movement.
With the optional padlock (PFA 9109) you prevent unauthorized removal.

  • Fine tuning during installation
  • Modular
  • Post-installation levelling
  • Quick and easy installation
  • Theft prevention
  • Order Code: 7235080
  • See entire Vogels VESA Arms Range
£157 (£188.40 inc. VAT)
Availability: In Stock

Vogels PFS3508 Specifications

Series Connect-it
Product group Interface strip
Colour Black
Guarantee 5 years
Tilt Tilt -3°/+7°
Max. weight load 80kg
Max. weight load (lbs) 176.37
Service position Yes
Min. vertical hole pattern 200mm
Max. vertical hole pattern 800mm
Length display strips / Max. fitment 820 / 800 mmmm
