Vogel’s FM1844S

TV/Monitor Bolt-down Floor Stand with Tilt - Silver
40–65″/ Max 80kg; VESA 100×100–400x400; 170cm to screen centre; Max 20° tilt

Vogels FM1844S TV/Monitor Bolt-down Floor Stand with Tilt - Silver product image

Vogels FM1844S (7952024) Description

Vogel’s FM1844S Connect-it single column monitor floor stand offers a a uniquely flexible system. Created with off-the-shelf components, you can adapt the stand to create a solution for almost any monitor mounting stand or trolley requirement.

The twin column FM1844S is suitable for monitors from 40″ weighing up to 80kg and the monitor height can be set from “on-the-floor” to 170cm.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300 and 400×400.

£420 (£504.00 inc. VAT)
Availability: In Stock with FREE Delivery

Vogels FM1844S Specifications

Product Group	Vogels Bolt-down Stand
UPC / EAN	8712285332920
Monitor Count	1
Colour	Silver
Screen Size	40 – 65″
Screen Orientation	Landscape
Max Load	80.00kg.
VESA Mount Points	100×100 – 400×400
Screen Centre Height	Variable – 1700.00mm

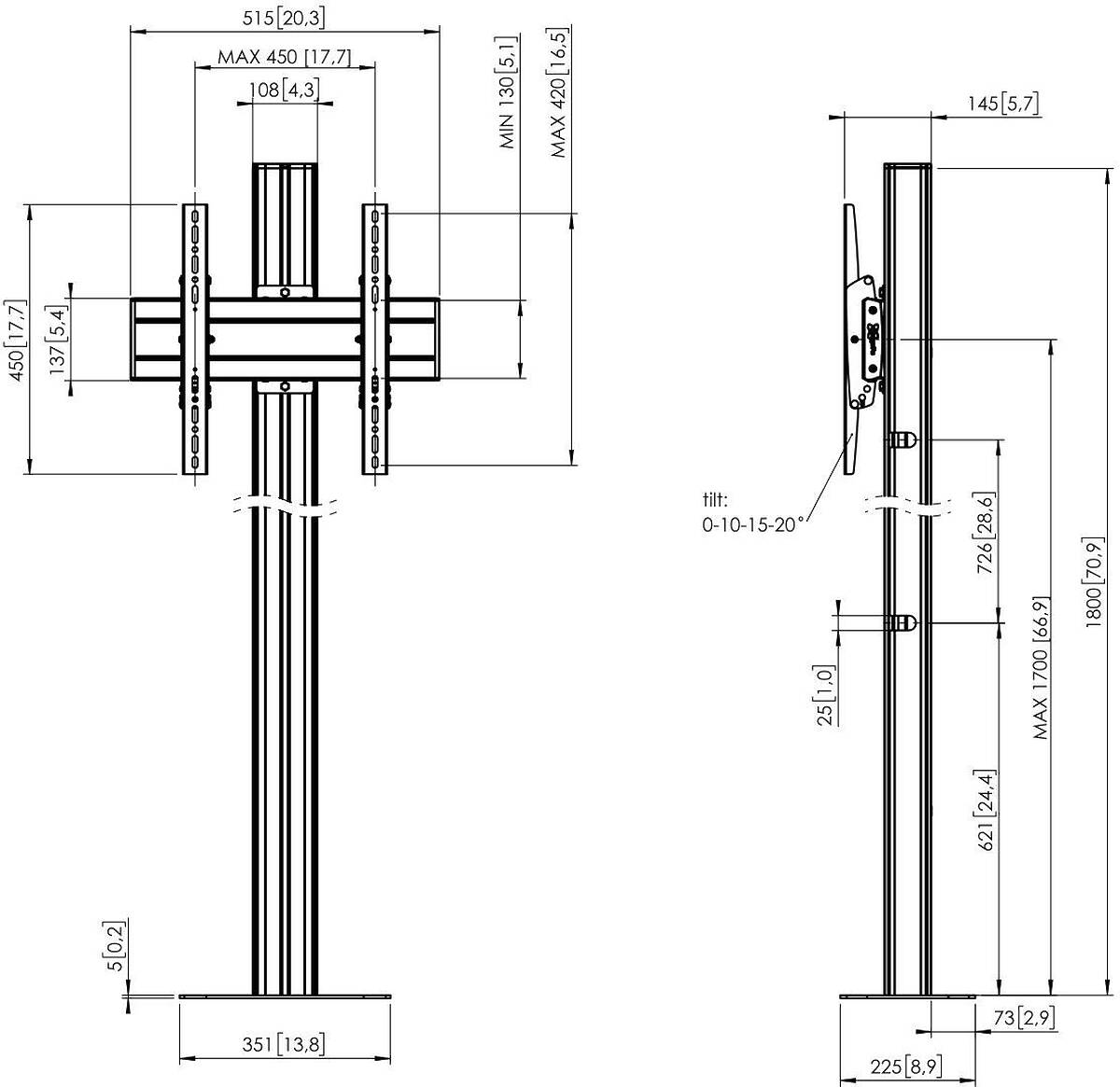

Dimensions	515.0mm width 1810.0mm height 225.0mm depth
Bracket Tilt	0–20°
Warranty	5 Years

Ideal For

Boardrooms
Community Centres
Conference Suites
Digital Signage
Exhibitions
Health Care / Clinics
Hospitality
Lobby / Reception Areas
Museums and Art Galleries
Touchscreen Applications
TV Studios and Broadcast

Vogels FM1844S Downloads

Brochure

FM1844S Component Parts

Product Code	Description
1 × Vogels PFB 3405S	Connect-it 515mm Interface bar finished in Silver
1 × Vogels PFF 7060S	Connect-it Bolt down plate for single column, finished in silver
1 × Vogels PFS 3304	Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt)
1 × Vogels PUC 2718S	180㎝ Connect-it Floor column finished in silver
