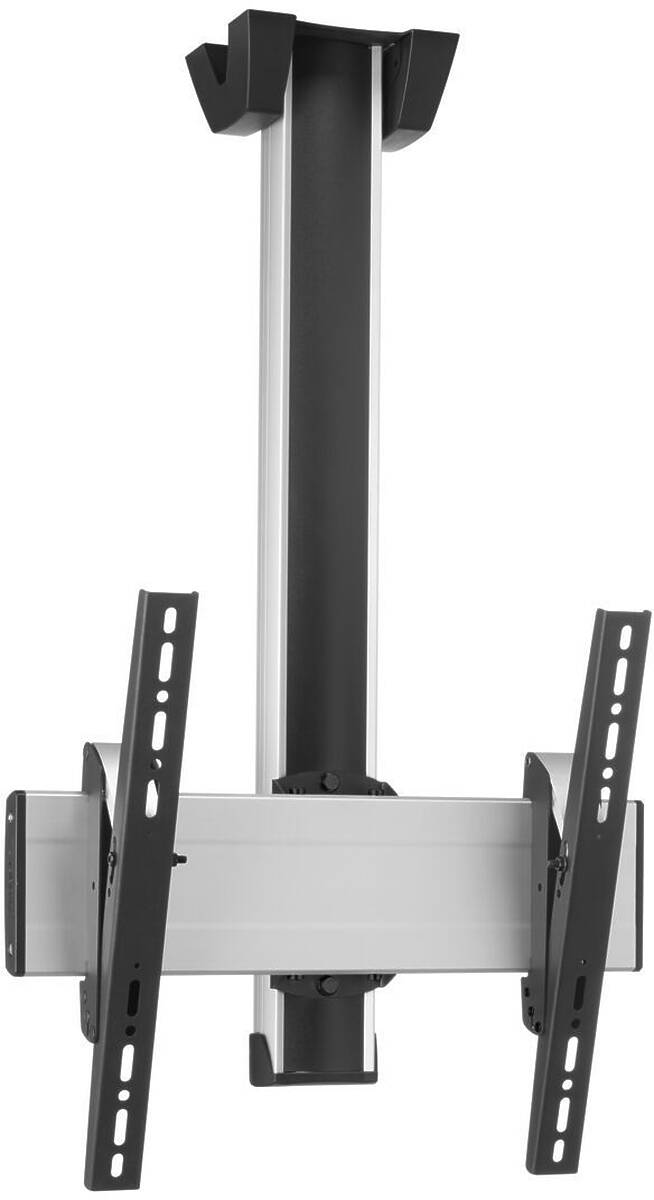

Vogels C3044S
TV/Monitor Ceiling Mount Kit
Up to 65"/ Max 80kg;VESA 100×100 to 400×400; 290cm ceiling to screen centre; Silver Finish
Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300 and 400×400.
- Max Load: 80.00kg.
- Order Code: 7950034
- See entire Vogels Monitor Ceiling Mounts (80kg) Range
- Hospitality
- Museums and Art Galleries
- Places of Worship
- Public Display
- Retail
- Scheduling Display
£339 (£406.80 inc. VAT)
Availability: In Stock
Availability: In Stock

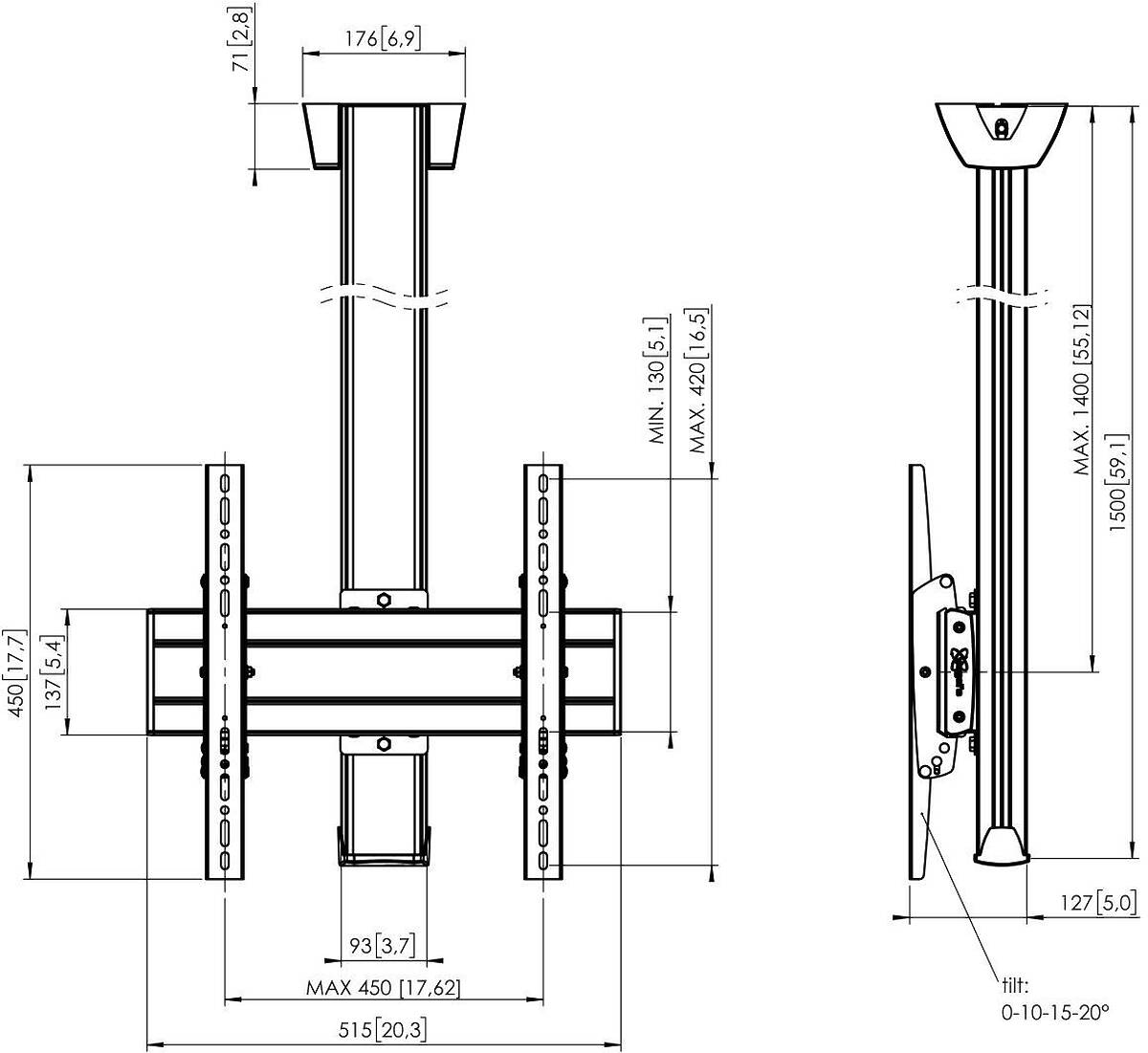

Vogels C3044S Specifications
| Screen Size | Up To 65 inch |
| VESA Compatibility | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 |
| Max. screen size | 65 inch |
| Ceiling to Display Centre | 2900mm |
| Colour | Silver |
| Max. weight load | 80kg |
| Tilt | Tilt up to 20° |
| Autolock | Yes |
| Pole length | 3000 mm |
| Ceiling types | Flat ceiling |
| Horizontal Hole Pattern | 100-450mm |
| Vertical Hole Pattern | 100-420mm |
| Guarantee | 5 years |
C3044S Component Parts
| Product Code | Description |
| 1 × Vogels PFB3405S | Connect-it 515mm Interface bar finished in Silver |
| 1 × Vogels PFS3304 | Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt) |
| 1 × Vogels PUC1065 | Connect-it Rotating Ceiling Plate |
| 1 × Vogels PUC2530S | 300㎝ Connect-it Ceiling column finished in silver |
