Unicol PPZF9

Pair Of ScreenRail / PoziMount Non-Tilting Arm
To 1000mm VESA Vertical, Max 60kg

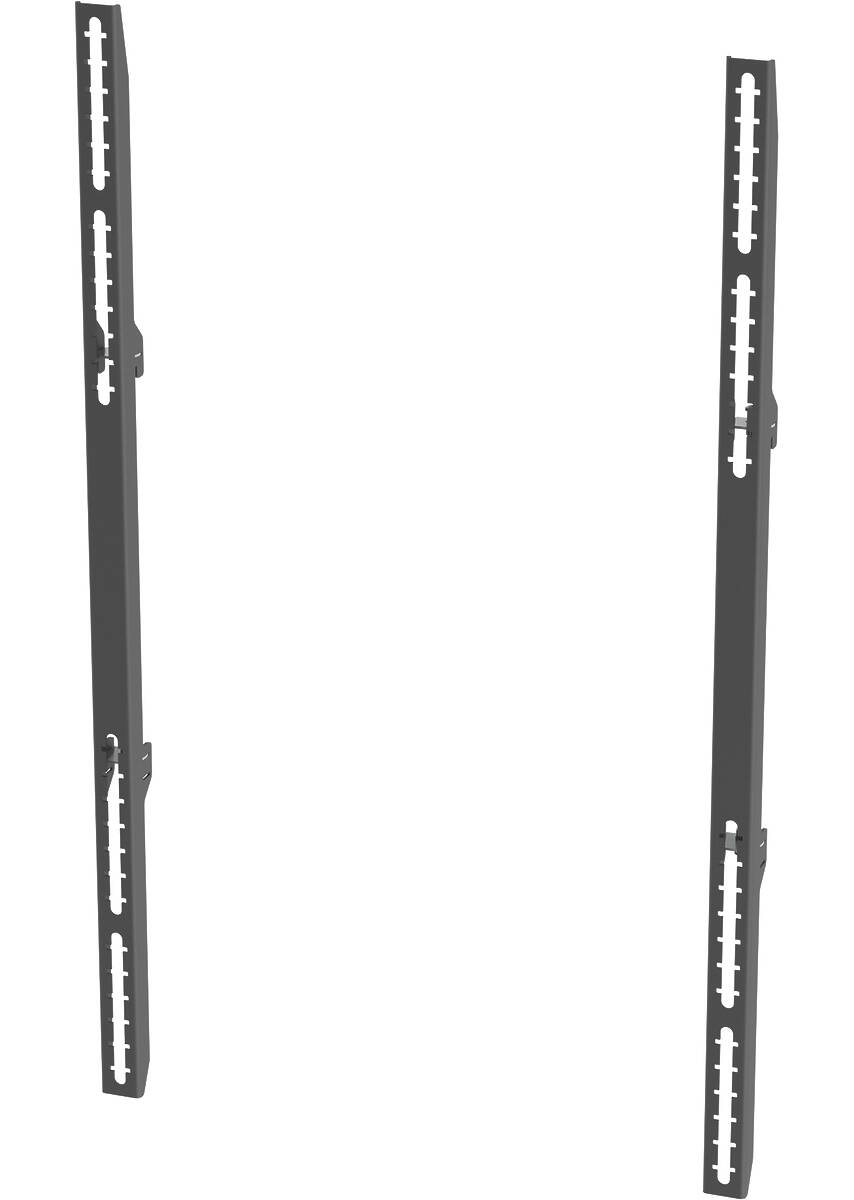

Unicol PPZF9 Pair Of ScreenRail / PoziMount Non-Tilting Arm product image

Unicol PPZF9 Description

Universal Mount Arms for ScreenRail Modules and The Unicol PoziMount range.

These arms are used across UNICOL’s standard universal screen mounts and allow you to create a wide range of screen installations when paired with ScreenRail modules.

These portrait arms are suitable for VESA’s 800mm high by any width depending on the ScreenRail module size. The arms incorporate 5mm screen levelling features and are just 45mm deep. Supplied with M4, M5, M6 & M8 fixing screws as standard.

This solution is suitable for a maximum weight capacity of 60kg and covers VESA measurements 800mm high.

Key Features

Include M4, M5, M6 and M8 fixing screws
Incorporated 5mm screen levelling adjustment
MD2U compatible
See entire Unicol ScreenRail Range

£54 (£64.80 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol PPZF9 Specifications

Product Group	Unicol ScreenRail
Colour	Sinterflex Black
Colour Options	Custom RAL colours available at additional cost
Max Load	60.00kg.

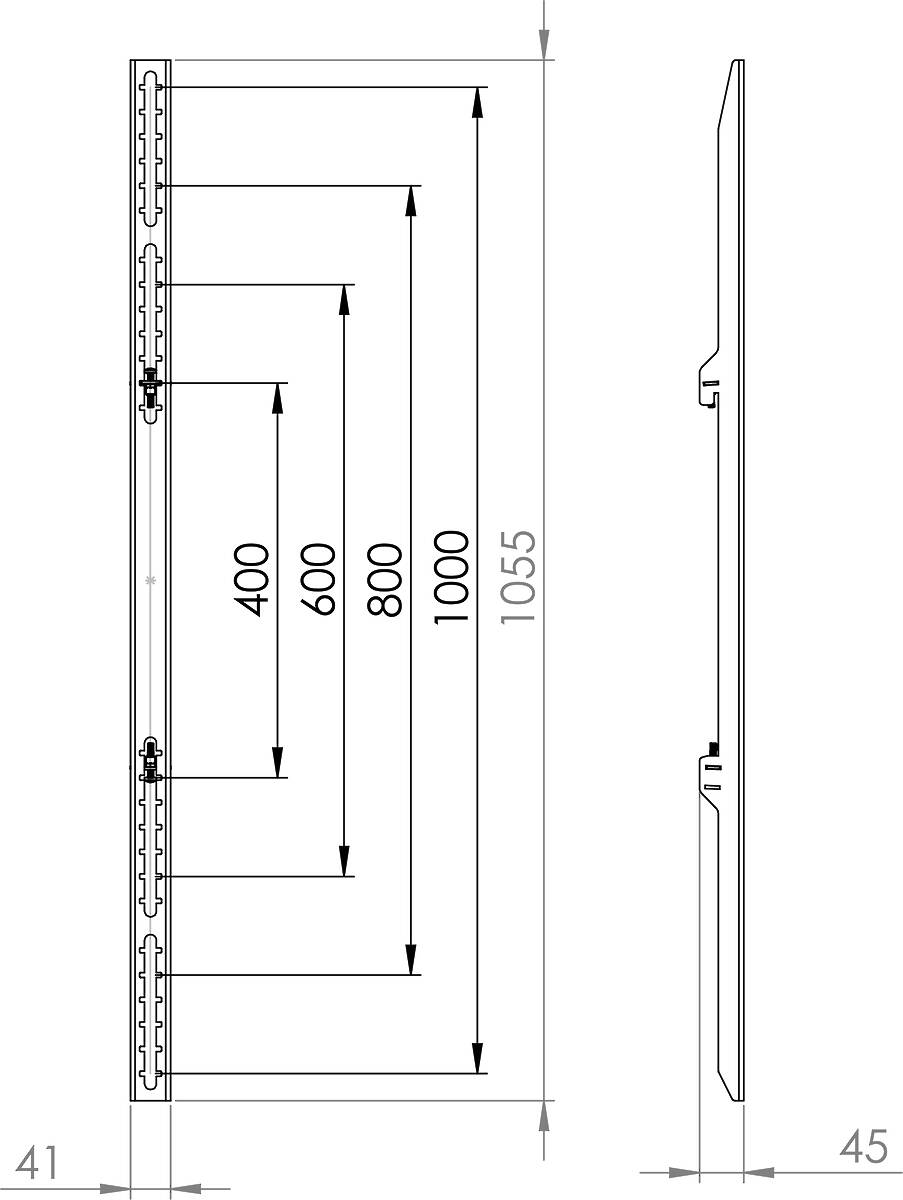

Dimensions	41.0mm width 1055.0mm height 45.0mm depth
Weight	3.30kg.
Warranty	10 Years
