Unicol FCSP4

Heavy Duty Mount Portrait Bracket for 700mm Goal Post Floor-to-Ceiling Installations
71–110″ / Max 130.00kg; VESA 400×400–600×600

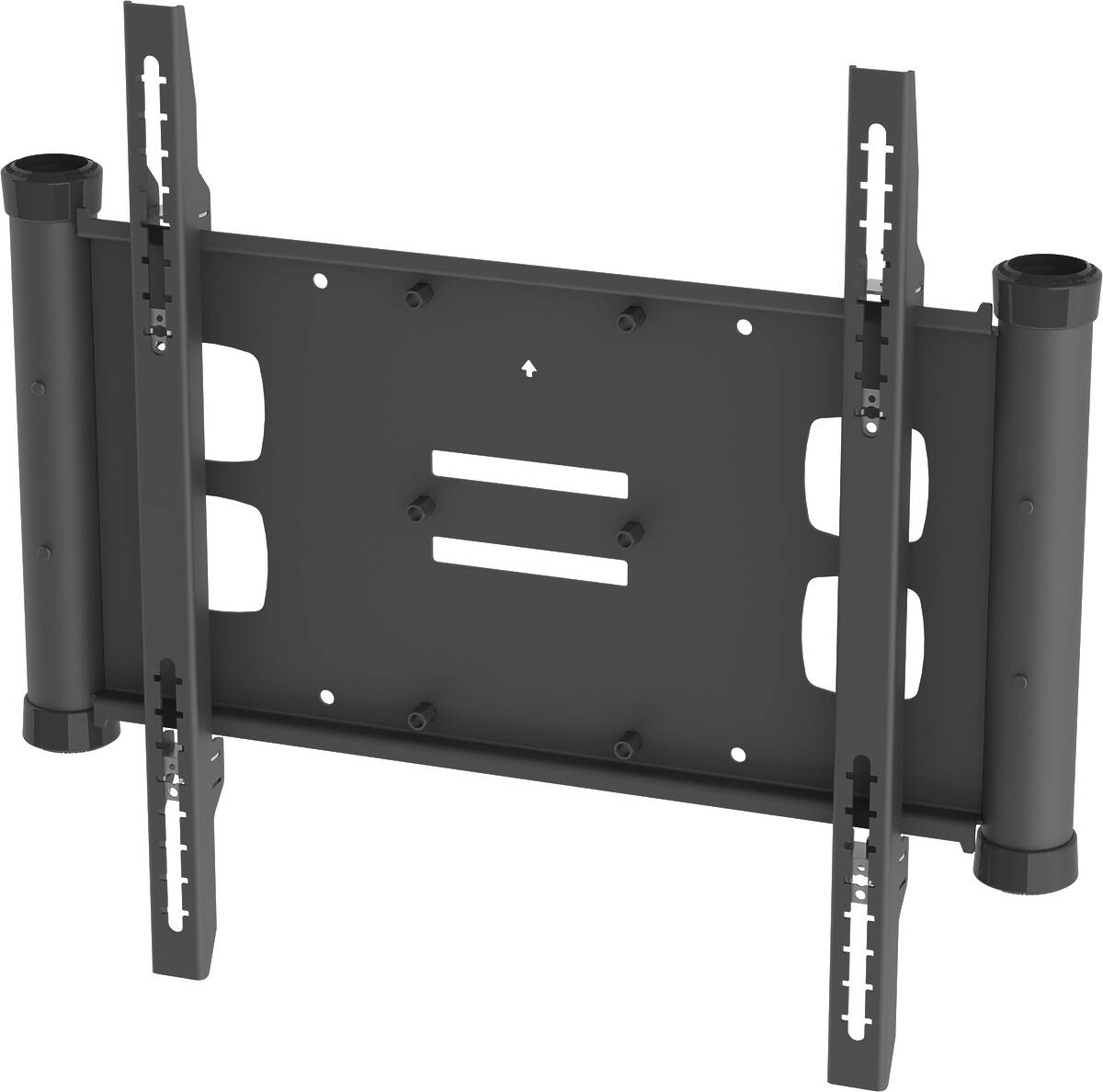

Unicol FCSP4 Heavy Duty Mount Portrait Bracket for 700mm Goal Post Floor-to-Ceiling Installations product image. Click to enlarge.

Unicol FCSP4 Description

The FCSP4 Goal Post span unit allows users to mount monitors from 71–110″ between goal-post columns to create an impressive installation. Ideal for floor-to-ceiling or floor-to-wall installations, span units offer an alternative style for projects whilst also spreading out the weight of heavy screens. Cabling can be thread through the column sockets and then through columns into the floor or ceiling.

Compatible with any column length.

Designed to fit VESA measurements 400×400, 500×400, 600×400 and 400×600.

Key Features

  • Goal post type configuration
  • Strong and light ideally suited to heavy large screens and touch screens
  • Standard Ceiling and floor plates
  • Cables can be hidden in column if required
  • Can be used with all standard Unicol columns
  • Designed to accomodate a single monitor
  • Touch Screen Compatible
  • See entire Unicol Floor to Ceiling Range
£276 (£331.20 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol FCSP4 Specifications

Product Group Unicol Floor to Ceiling
Monitor Count 1
Colour Sinterflex Black
Screen Size 71–110″
Screen Orientation Portrait
Max Load 130kg
VESA Mount Points 400×400–600×600mm
Dimensions 770.0mm width
700.0mm height
77.0mm depth
Column Mount Centres 700mm
Weight 12.70kg.
Warranty 10 Years

Ideal For

  • Conferences
  • Digital Signage
  • Exhibitions
  • Museums and Art Galleries
  • Retail
  • Scheduling Displays
  • Touchscreen Applications
  • Trade Shows

Unicol FCSP4 Downloads
