Chief PNRUB

Heavy Duty Large Flat Panel Display Swing Out Wall Mount
42 to 86" / Max 90.7kg; VESA 200×200 to 862×517;Includes Monitor Bracket

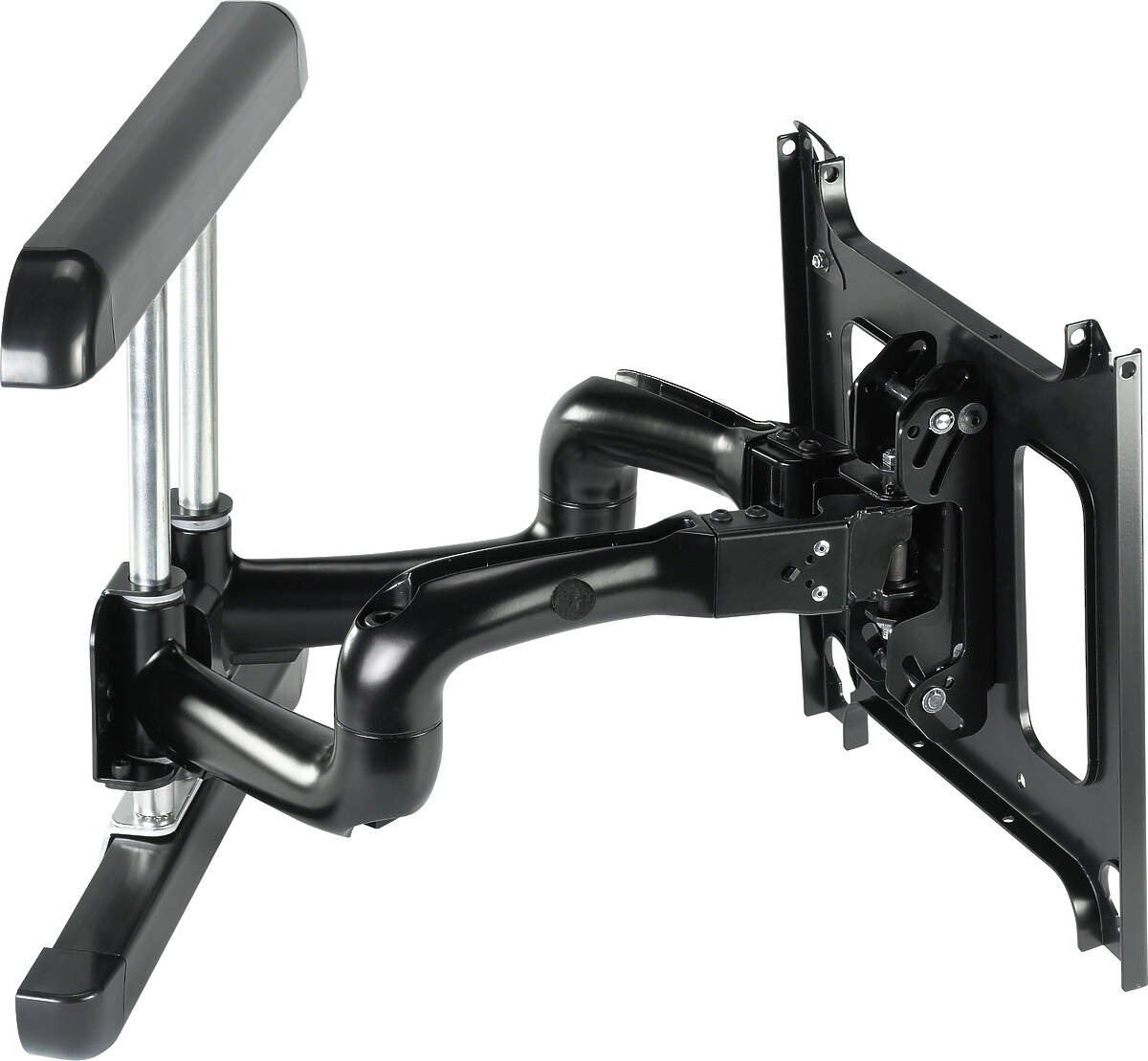

Chief PNRUB Heavy Duty Large Flat Panel Display Swing Out Wall Mount product image. Click to enlarge.
Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 600×400 and 800×400.
  • Centris Fingertip Tilt allows you to select the perfect tension for your screens centre of gravity
  • Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Easy connect/disconnect without tools
  • Extends up to 25 (635 mm) for viewing from any angle
  • CableTrac System provides channeled cable management for easy cable routing
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Suitable for Large Format Displays from 42 to 86"
  • Max Load: 90.70kg.

Chief PNRUB Downloads

£477 (£572.40 inc. VAT)
Availability: 3-5 days

Chief PNRUB Specifications

Lateral Shift 228.6 mm (9 in)
Minimum Depth 8.25 cm (3.3 in)
Shipping Weight 29.94 kg (66 lbs)
Screen Size 42"- 86" (1067mm - 2184mm)
Weight Capacity 200 lbs (90.7 kg)
Adjustability Extension, Swivel, Tilt, Micro-Adjustable
Height Adjustable, Lateral Shift
Application Wall
Colour Black
Notes Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
Orientation Landscape /Portrait
Post-Installation Levelling Roll Yes
Solution Type Universal
Tilt + 5° / - 15°
VESA Mounting Pattern 200 × 200mm - 862 × 517mm
Certifications UL Listed
