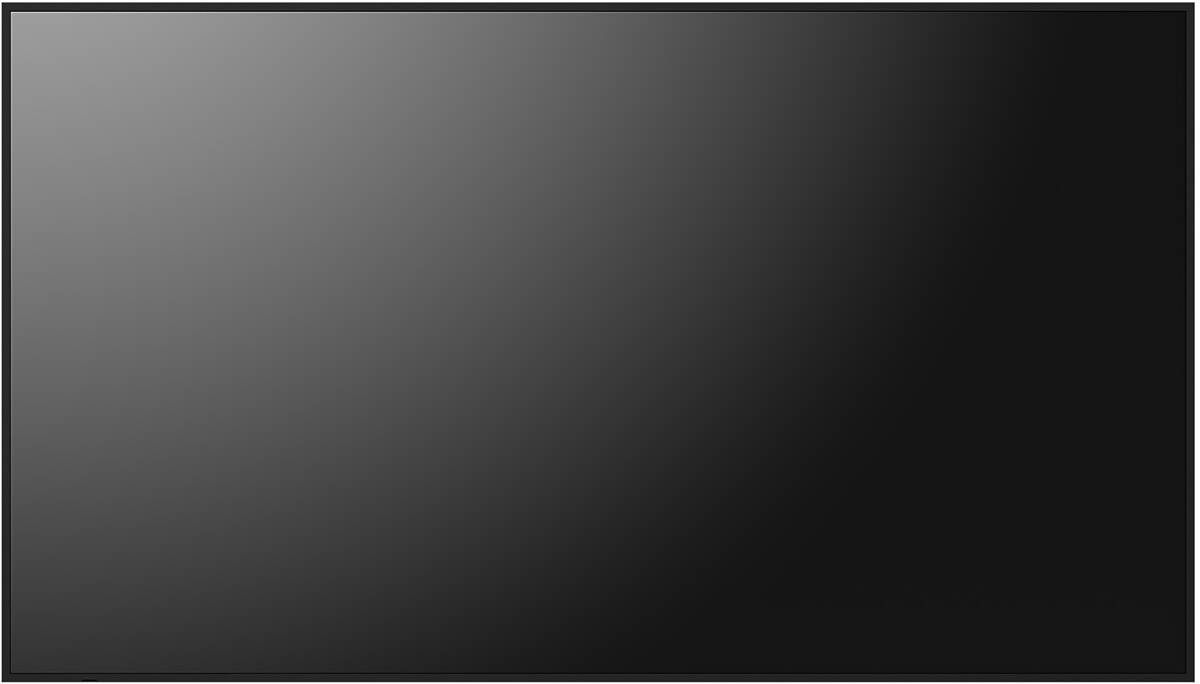

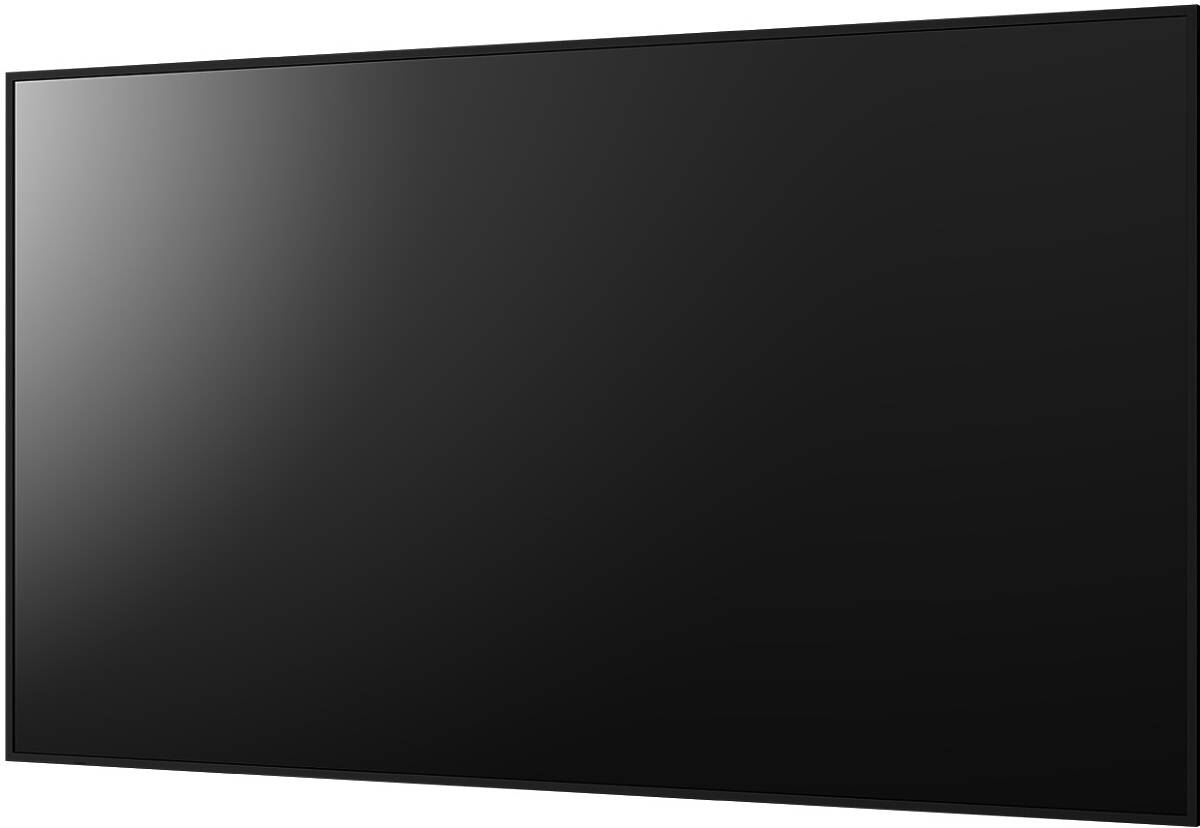

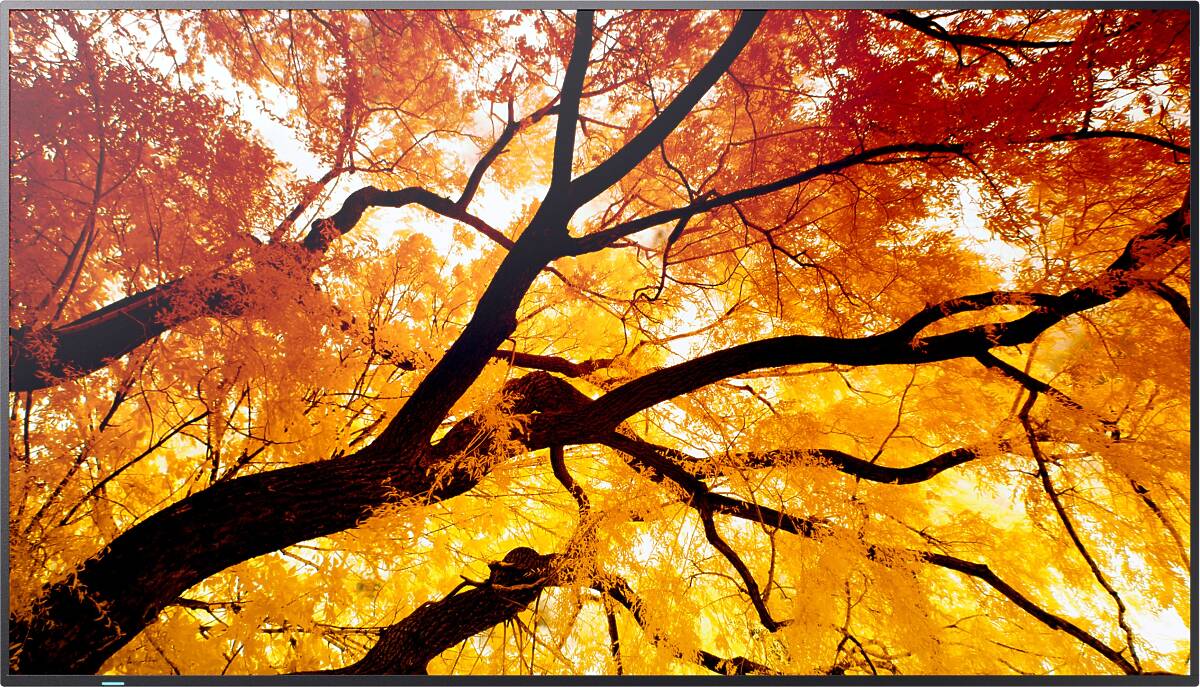

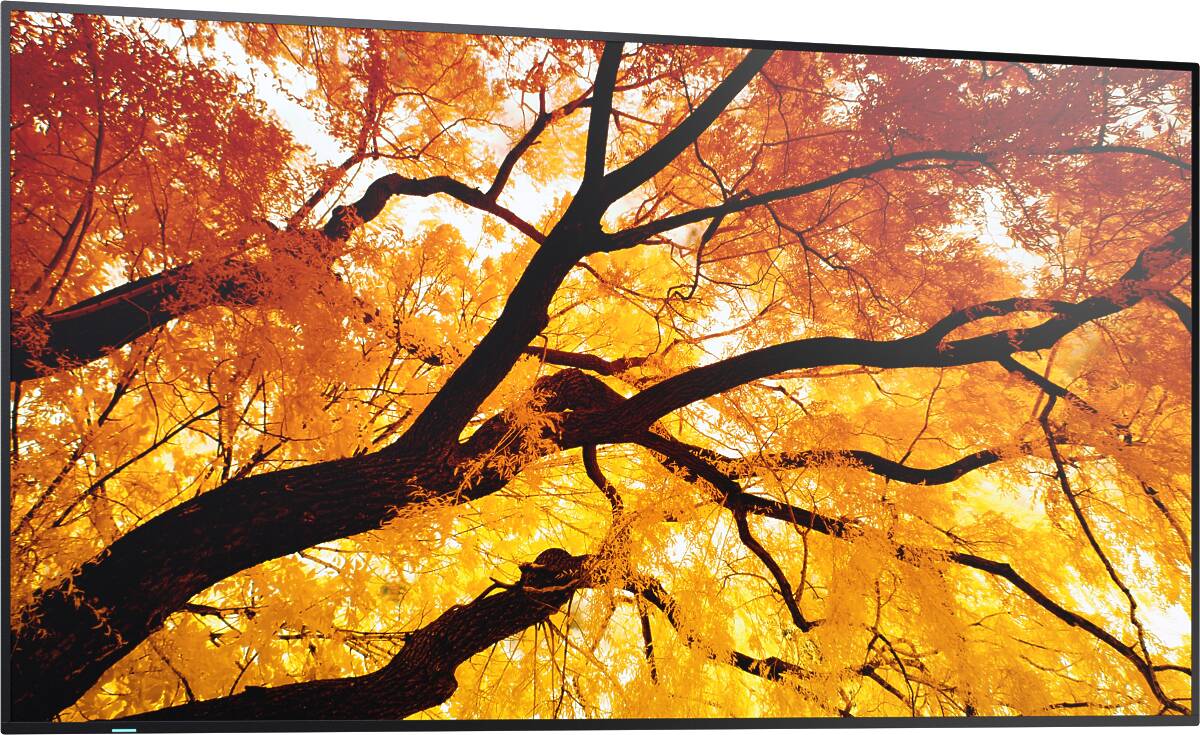

Sharp MultiSync M982 LED Large Format Display Monitor
£5754 (£6904.80 inc. VAT)
Availability: In stock
Availability: In stock
Sharp MultiSync M982 Suggested Applications
Key Features
- 98" Diagonal IPS with Direct LED backlights Panel
- Seamless meeting workflows - a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
- Unhindered readability - a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured - 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Enhanced imaging precision - when brand consistency and corporate identity are important, NECs SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Broad AV compatibility - fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.

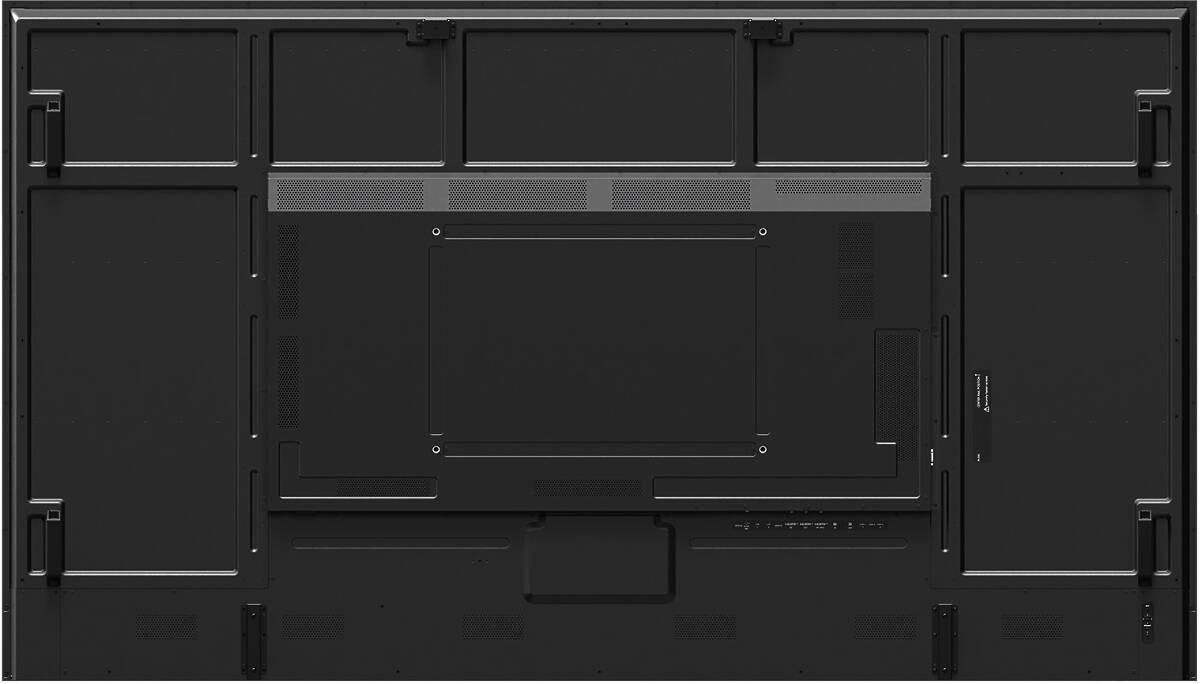

- VESA 600×400; M8 mounting points
- Designed for 24/7 use - Warranty covers use all day, every day
- Display Daisy Chaining - Connect monitor output to next monitor input to duplicate display

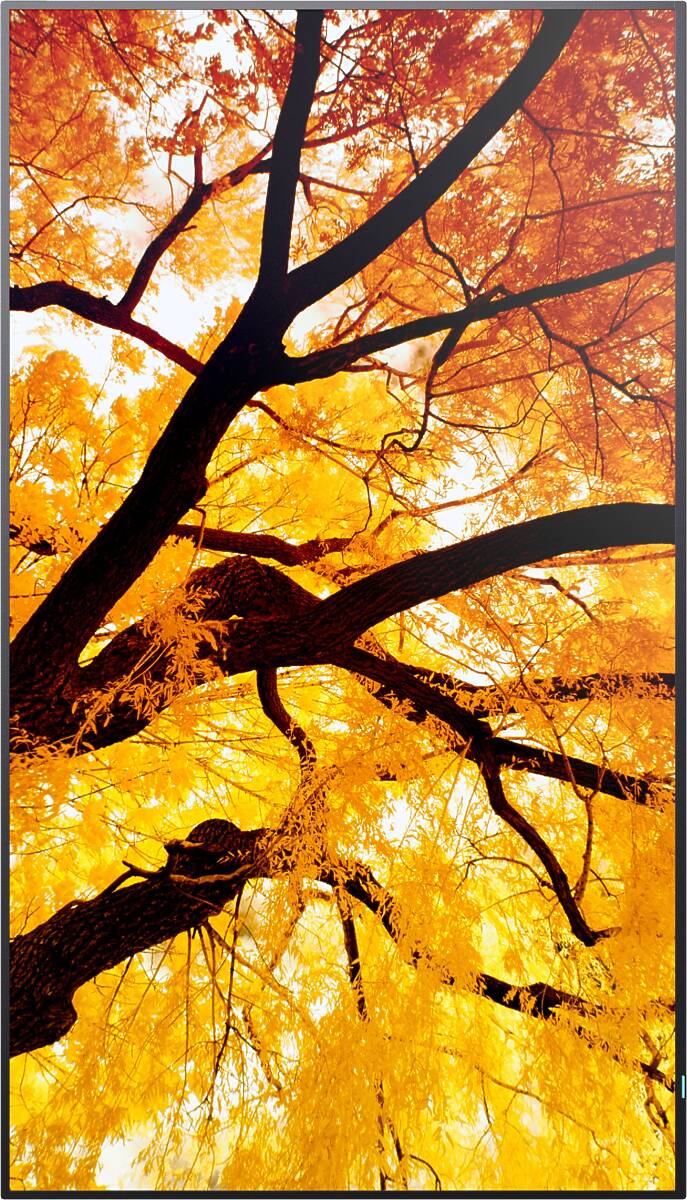

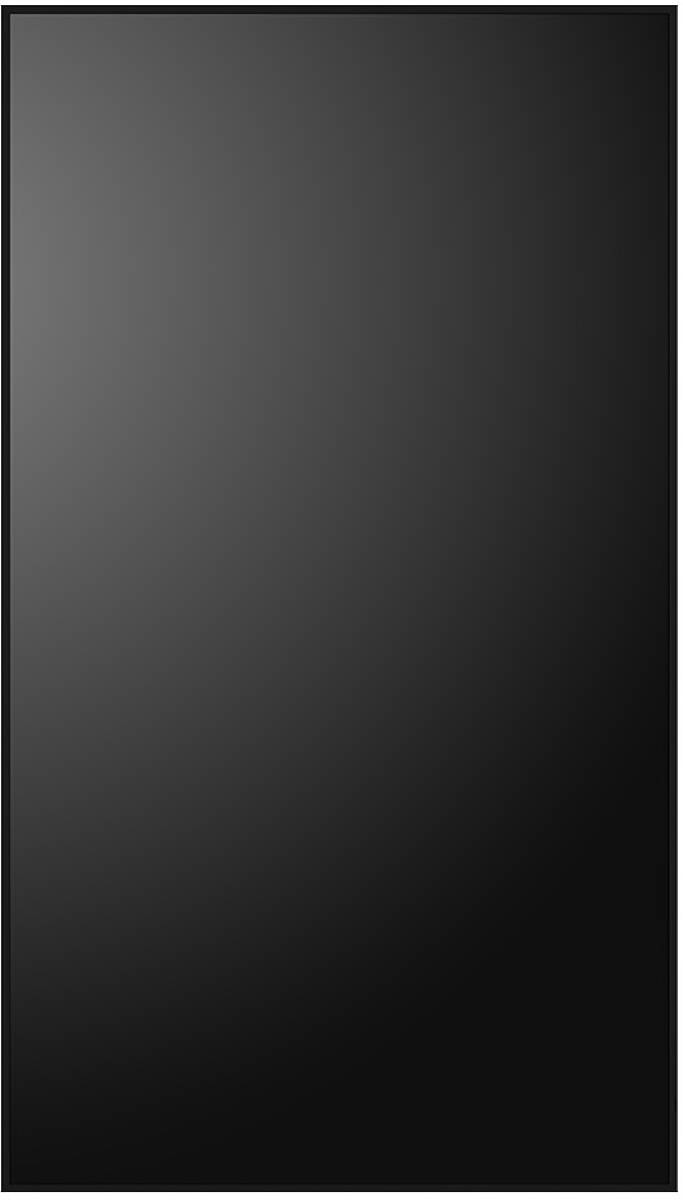

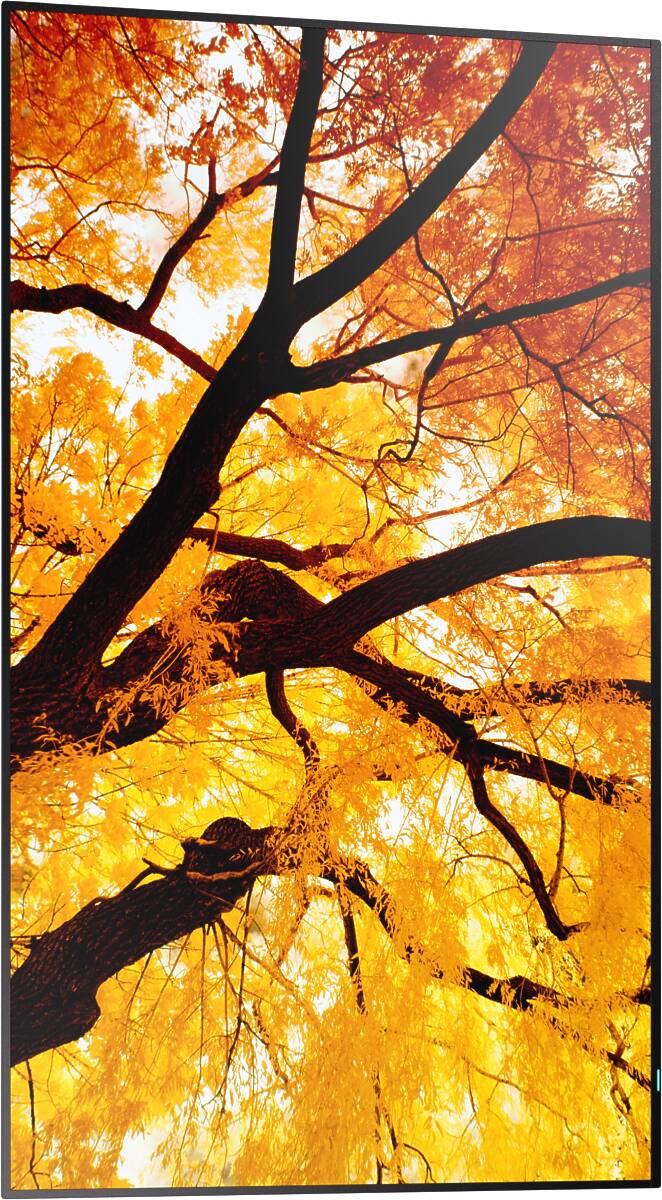

- Landscape/Portrait Mode - The MultiSync M982 can be installed in either standard landscape or portrait orientation
- OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
- Picture-In-Picture
- Picture-And-Picture
- LAN Control/Monitoring - The monitor can be controlled through your local area network
- Face Up Install - This monitor can be installed facing upwards
The versatile solution for professional display applications, the Sharp MultiSync M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m brightness, a high-haze panel to minimise glare, and NECs trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync M2 Series builds on NECs legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Sharp MultiSync M982 Downloads
Mounting Options & Accessories
Sharp MultiSync M982 Summary |
|
| Manufacturers Part No. | 60006059 |
| Model | Sharp MultiSync M982 |
| EAN / UPC | 4550556176668 |
| Display Type | IPS with Direct LED backlights |
| Features | Designed for 24/7 use Display Daisy Chaining Landscape/Portrait Mode OPS Slot Picture-In-Picture Picture-And-Picture LAN Control/Monitoring Face Up Install |
| Diagonal | 98" |
| Native Resolution | 3840×2160 |
| Brightness | 550cd/m2 |
| Contrast | 8,000:1 |
| Colours | 1.073 Billion (10bit) |
| Horizontal Frequency | 60KHz |
| Vertical Frequency | 23 - 76Hz |
Connectivity |
|
| HDMI | 2 |
| DisplayPort | 1 |
| USB-C Video | 1 |
| USB | 3 |
| RS-232 | 1 |
General Specifications |
|
| Speakers | Integrated Speakers (10 W + 10 W) |
| Warranty | 3 years warranty incl. backlight; optional 4. + 5. year warranty extension |
| Monitor Dimensions | 219.5 × 125 × 8.4cm (w×h×d) |
| Weight | 68kg. |
| VESA | 600×400; M8 |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| Consumption | 210w |
| Colour Gamut | 72% of NTSC |
| Haze Level | Pro (25)% |
| Supported Orientation | Face Up 2; Landscape; Portrait |
| Input Detect | Custom; Last; First |
| PiP / PbP | 2-Split; Scalable picture size |

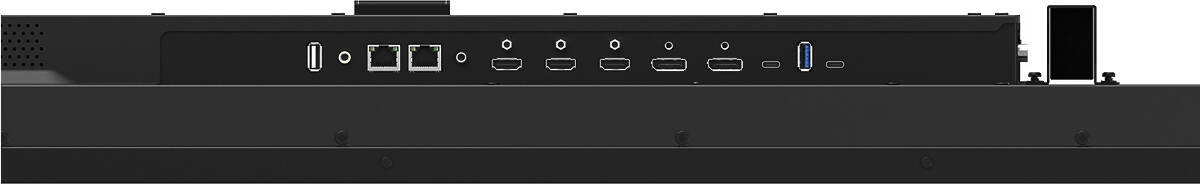

Connectivity Details |
|
| HDMI IN 1 | Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC |
| HDMI IN 2 | Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC |
| HDMI OUT | Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module |
| DP IN 1 | Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input |
| DP OUT | Video Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2 |
| USB-A 1 | USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage |
| USB-A (Service) | 2.5 W; Service |
| USB-C 1 | Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W |
| USB-C 2 | USB 2.0 / 3.2; 7.5 W; Peripherals; Storage |
| Audio Output (3.5 mm) | Audio Output; Line Out |
| LAN 1 | 100 MBit/s |
| LAN 2 | Loop Through: LAN 1, RS-232C, IR; 100 MBit/s |
| RS-232C | 9600 bps |
| Remote In (3.5 mm) | Eco Sensor (IR-Extender, Ambient and Presence) |
Calibration |
|
| Factory Calibration | Gamma; Intensity; RGB; Uniformity; White Point |
| Calibration with Software | Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point |
| Calibration Software | Display Wall Calibrator |
Open Modular Intelligence |
|
| Intel® SDM | Accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | MPi4 and MPi5 Kit (powered by Raspberry Pi) |
Sensors |
|
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Human Sensor | Optional via Eco Sensor (KTES1) |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
Environmental Conditions |
|
| Operating Temperature | +0 to +40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 80% |
| Storage Temperature | -20 to 60°C |
Mechanical |
|
| Bezel Width | 15.9mm |
| Ingress Protection | IP5x (front); IP2x (back) |
| Packaging Dimensions | 2,350 x 1,400 x 310mm (W x H x D) |
| Packaging Weight | 99kg |
| Material | Metal |
Regulartory |
|
| Safety and Ergonomics | CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
Green Features |
|
| Energy Efficiency | Energy consumption: 202 kWh/1000 h; Energy efficiency class: G; LED backlight |
| Ecological Standards | EnergyStar 8.0 |
3rd Party Certifications |
|
| Crestron | Certified for Crestron CCV2 and XiO Cloud |
Additional Features |
|
| Special Characteristics | CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler |
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| External Control | AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
| Remote Management | NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN) |
Included Accessories |
|
| Accessories | 2×AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
