WyreStorm APO-VX20-UC

Apollo Series Conference Video Bar & Switcher

£1271 (£1525.20 inc. VAT)
Availability: Please Call

WyreStorm APO-VX20-UC

The Apollo VX20 is part of the family of Unified Communication Apollo solutions. The VX20 is a premium conference video bar that integrates a video switcher, speakerphone, and camera into one device. Ready for today's demanding and versatile meeting spaces, the VX20 comes feature packed with HDMI & USB-C local inputs along with the ability to wireless casting from Airplay and Miracast capable devices. The 4K camera provides enhanced features including presenter tracking and AI assisted lighting. The powerful stereo speakers provide room-filling sound with exceptional bass response for a clear and accurate audio experience.

Tailored For Corporate

The Apollo VX20 can be used in a myriad of conference applications from small huddle spaces up to larger corporate boardrooms. Very similar in use-case to the standard Apollo speakerphones, the VX20 carries over a lot of the same functionality such as USB-C and HDMI inputs for versatile connectivity options and the ability to wirelessly cast from personal devices via Airplay or Miracast.

Speakerphone

Features 4 x MEMS microphones in a Beamforming array with Acoustic Echo Cancellation, Automatic Gain Control and Automatic Noise Suppression, ensuring you can be heard loud and clear in every meeting up to 8 meters away. The stereo speakers with bass enhancement provide crisp audio delivery, even in the largest rooms.

Wired & Wireless

Share content no matter the device you bring to a meeting. Equipped with HDMI and USB-C local inputs for hard-wired connections and also capable of receiving wireless casting via Airplay and Miracast. Let's not forget the WyreStorm APO-DG1 casting dongle as well!

Smart Camera

The integrated 4K camera not only provides a crystal-clear video conference experience but delivers smart AI enhanced functionality including intelligent backlighting, auto-framing, presenter tracking and speaker tracking.

Meeting Ready

Compatible with all major meeting software including Microsoft Teams, Zoom, WebEx, BlueJeans and many more. No matter what you or your company use to collaborate, the VX20 provides the fundamental connectivity to have a successful meeting.

WyreStorm APO-VX20-UC Key Features

  • Simple plug and play design using a single USB-C connection
  • Native USB-C connection provides up to 60w device charging for laptops or tablets
  • Magnetic privacy lens cap
  • Handheld Bluetooth Remote
  • APO-MIC-EXT – USB to Ethernet cable for use with the APO-COM-MIC add-on microphone allows point-to-point extension up to 60m over Cat6 cable to the APO-COM-MIC. (Sold separately)

WyreStorm APO-VX20-UC Downloads

WyreStorm APO-VX20-UC Specifications

Video Resolutions (Max) 3840×2160p 30Hz 4:4:4 8bit
1920 × 1080p 60Hz
Inputs/outputs 1 × USB-C Input with Alt-Mode
1 × HDMI Input
1 × HDMI Output
Supported Standards RGB, USB, USB Alt-Mode
Maximum Pixel Clock 300Mhz
Microphone 4 × MEMS mic array, AEC, ANS, AGC
180° Pickup Angle
Pickup Range: 5-8m (16-26ft)
Speaker 2 × 8 watt
Camera Sensor 1/2.5″, CMOS, Effective Pixel: 8.0M
Camera Resolution 3840 × 2160p @30Hz
1920 × 1080p @60Hz
Output Encoding MJPEG/YUV2/H.264/H.265, UVC 1.1
Camera Fov 120°
Additional Features White Balance: Auto
Backlight Compensation: Auto
DNR: 2D & 3D
ePTZ: Supported, 5 × digital zoom
Presenter Tracking: Supported
USB 1 × USB-C: USB 3.2 Gen 1, Max Bandwidth: 5Gbps
1 × USB-B: USB 3.2 Gen 1, Max Bandwidth: 5Gbps
1 × USB-A: USB 3.2 Gen 1, Max Bandwidth: 5Gbps
USB Protocols UAC, UVC, USB HID
Lan 1 × 8-pin RJ45
HDMI HDMI 1.4, HDCP 1.4, EDID, CEC
Wireless IEEE 802.11ac, 2.4Ghz, 5Ghz
Power Supply 24V DC 5A
Power Consumption Max: 40w
Max with USB-C charging: 100w (60w max charging)
Handheld Remote Bluetooth
In The Box 1 × APO-VX20-UC Video Bar
1 × 24V 5A Power Supply (UK/US/EU/AU)
1 × 5m HDMI Cable
1 × 5m USB-B 3.0 Host Cable
1 × Wall Mount Kit
1 × Bluetooth Remote
1 × Magnetic Lens Cap

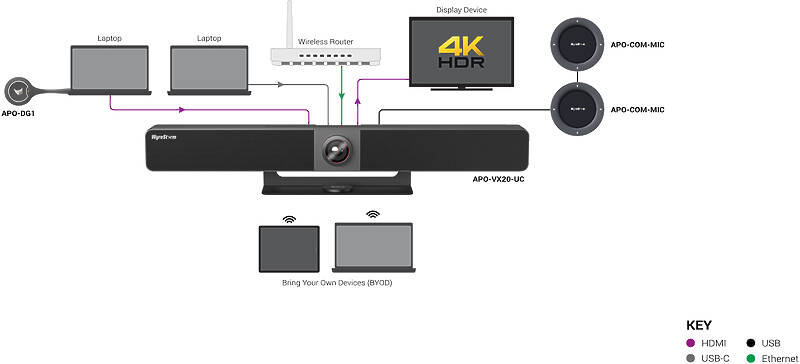

WyreStorm APO-VX20-UC Usage Diagram



WyreStorm APO-VX20-UC Usage Diagram
