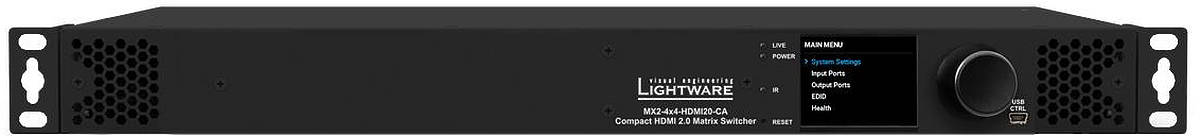

Lightware MX2-4x4-HDMI20-CA
4×4 HDMI 2.0 4K Matrix Switcher with Ethernet/RS-232/LCD Menu control
4 × HDMI inputs; 4 × HDMI outputs; Max. 4K UHD @ 60Hza 4:4:4, 18Gbps
Availability: Please Call
Lightware MX2-4x4-HDMI20-CA (91310061)
The Lightware MX2-4x4-HDMI20-CA is a HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.
Its compact size and silent design make it particularly suitable for offices and meeting rooms and other corporate collaborative environments. This device is also perfect for home theater enthusiasts who demand the highest quality along with HDMI 2.0 and 4K@60Hz video signals. This standalone product transmit video signals up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio. The 2x audio connectors next to the output ports can provide de-embedded audio for amplifiers and audio systems; the output volume is adjustable.
These matrix switchers support both HDR and Dolby Vision in the HDMI signal.
Lightware MX2-4x4-HDMI20-CA Key Features
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- HDR and Low Latency Dolby Vision support
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Audio de-embedding
- Front to back cooling airflow
- Compact and silent design
- Advanced EDID Management
- Front panel LCD menu and buttons for crosspoint control
- Device control via Ethernet (TCP/IP), RS-232 and USB
- Fully non-blocking switching architecture
- Built-in website for device configuration
- Firmware upgrade through USB or Ethernet
- Order Code: 91310061
Lightware MX2-4x4-HDMI20-CA Specifications
Connectivity |
|
| Power | IEC standard, 110/220V |
| Video Inputs | 4 × HDMI 2.0 |
| Video Outputs | 4 × HDMI 2.0 |
| Audio Inputs / Outputs | Stereo, balanced, 5-pole Phoenix |
| Serial Control | 3-pole Phoenix |
| Ethernet | RJ45 |
| USB | mini USB |
Processing |
|
| Routing | 4 input 4 output, non blocking architecture |
| Speed | 18 Gbps per port |
| Resolution | Up to 4096 × 2160@60Hz at RGB 4:4:4 |
| (up to 600MHz pixel clock) | |
| Dimensions | 1RU height, 442 W × 277.5 D × 43,7 H mm* |
| Mounting | Rack mountable, removable rack ears |
Lightware MX2-4x4-HDMI20-CA Optional Cables
| Description | Length | Price | Inc. VAT | |
| Lightware CAB-HDMI20-PHS100F Premium High Speed HDMI 2.0b flexy cable | 1.0m | £30 | £36.00 | |
| Lightware CAB-HDMI20-PHS200F Premium High Speed HDMI 2.0b flexy cable | 2.0m | £40 | £48.00 | |
| Lightware CAB-HDMI20-PHS300P Premium High Speed HDMI 2.0b flexy cable | 3.0m | £50 | £60.00 | |
| Lightware CAB-HDMI20-PHS500P Premium High Speed HDMI 2.0b flexy cable | 5.0m | £60 | £72.00 |
Lightware MX2-4x4-HDMI20-CA Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| Blustream C66CS | 6 × 6 HDMI 2.0 / IR / PoC to HDBaseT Matrix Switcher 6 × HDMI inputs; 6 × HDBaseT; Max 40m at 4K, 70m at 1080p | £1488 | £1785.60 |
| CYP OR-44-4K22 | 4 × 4 4K HDMI Matrix Switch with Audio De-Embedding 4 × HDMI inputs; 4 × HDMI outputs; UHD, HDMI 2.0, HDCP2.2, HDR | £577 | £692.40 |
| CYP OR-44U-4K22 | 4 × 4 4K HDMI Matrix Switch with Audio De-Embedding 4 × HDMI inputs; 4 × HDMI outputs; UHD, HDMI 2.0, HDCP2.2, HDR, USB power for extenders | £733 | £879.60 |
| CYP OR-88U-4K22 | 8 × 8 4K HDMI Matrix Switch with Audio De-Embedding 8 × HDMI inputs; 8 × HDMI outputs; UHD, HDMI 2.0, HDCP2.2, HDR, USB power for extenders | £1776 | £2131.20 |
| Kramer VS-44H2 | 4 × 4 4K HDMI 2.0 HDR Matrix Switcher4 × HDMI inputs; 4 × HDMI outputs; Max. bandwidth 18Gbps | £1851 | £2221.20 |
| Kramer VS-44H2A | 4 × 4 4K HDMI 2.0 HDR Matrix Switcher with audio de-embed 4 × HDMI inputs; 4 × HDMI, 4 × S/PDIF, 4 × 5-pin terminal block audio outputs; Max. bandwidth 18Gbps | £2209 | £2650.80 |
| Kramer VS-66H2 | 6 × 6 4K HDMI 2.0 HDR Matrix Switcher 6 × HDMI inputs; 6 × HDMI outputs; Max. bandwidth 18Gbps | £2779 | £3334.80 |
| SY Electronics SMS44-18G | 4 × 4 HDMI 2.0 Seamless Matrix Switcher 4 × HDMI 2.0 inputs; 4 × HDMI 2.0 outputs; Max bandwidth 18Gbps | £1993 | £2391.60 |
