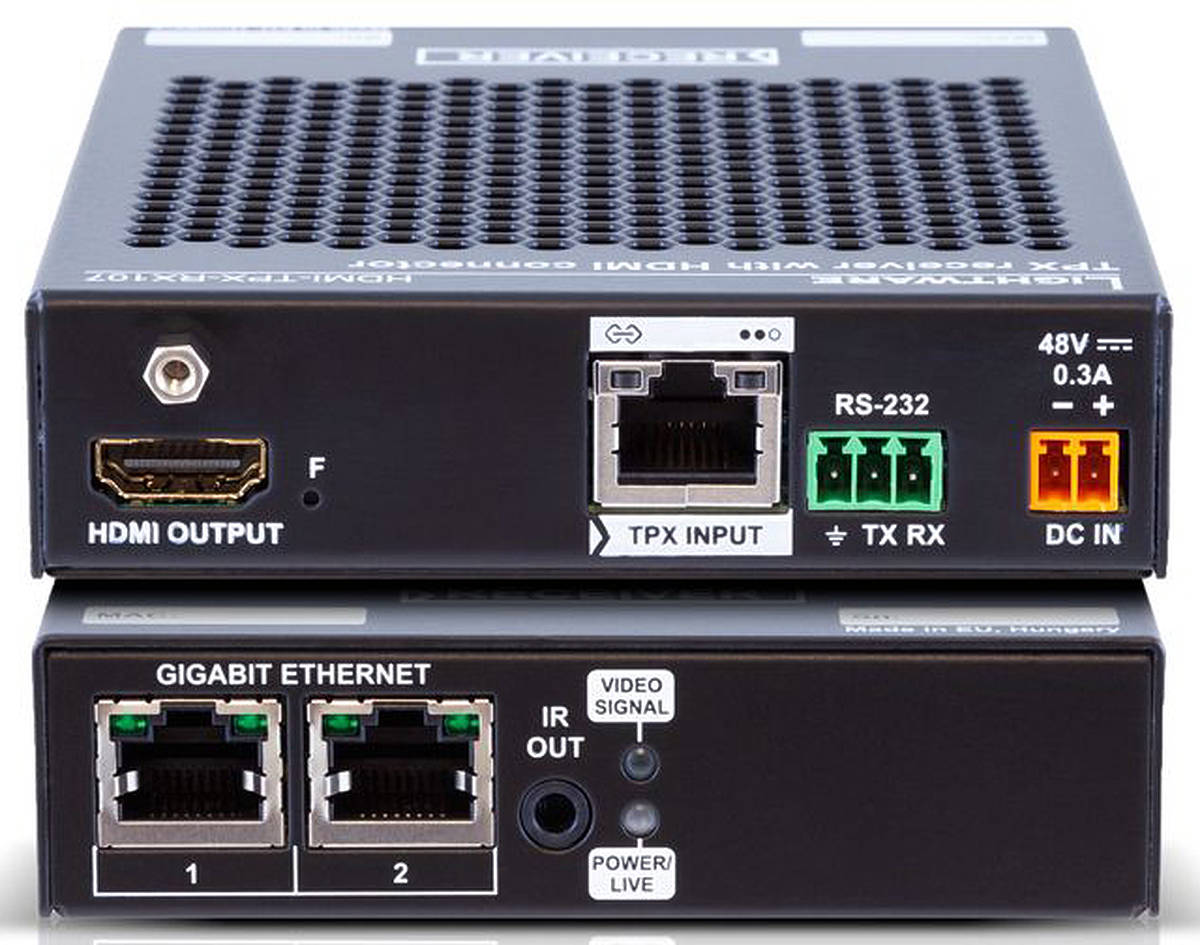

Lightware HDMI-TPX-RX107
1:1 4k HDMI 2.0 / RS-232 / Ethernet / PoC over Twisted Pair Receiver
Max. 100m at 4K/UHD @60Hz 4:4:4; CEC, 4K/UHD, RS-232,EDID, HDCP2.3; Additional Gigabit Ethernet Port
Availability: Please Call
Lightware HDMI-TPX-RX107 (91580004)
The HDMI-TPX-TX107 and HDMI-TPX-RX107 extenders with AVX technology are Lightware's newest development and a natural progression from the widely popular HDMI-TPS-TX/RX97 series, allowing users to extend HDMI 2.0 signals up to 4K60 4:4:4 video resolution through a single CATx cable over distances up to 100 meters.
Beyond the benefits of sending high-resolution video over long distances, the extenders are also capable to handle various connectivity standards, including bi-directional RS-232 and command injection over IR (output only) as well.
The additional Gigabit Ethernet port is also a valuable addition, allowing users to connect an additional device to the network directly through the TPX extender.
HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3rd party devices, such as the Christie Terra projector.
See also: Lightware HDMI-TPX-RX107.
Lightware HDMI-TPX-RX107 Key Features
- Can be remote powered through CATx cable (PoE PD)
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- Bi-directional RS-232 extension (pass-through)
- HDCP 2.3 compliant (transparent pass-through)
- HDR and Low Latency Dolby Vision support
- Great price/value balance
- HDMI 2.0 end-to-end extension
- Bi-directional PoC remote powering
- Extends HDMI 2.0, audio, Ethernet, RS-232 up to 100m over one CATx cable
- Ethernet extension (1 Gbps)
- Command injection through IR
- Order Code: 91580004
Lightware HDMI-TPX-RX107 Downloads
Lightware HDMI-TPX-RX107 Specifications
Video |
|
| Resolution | Up to UHD/4k@60Hz 4:4:4 |
| Signal Type | HDMI 2.0, HDMI 1.x, DVI |
| Maximum Data Rate | 18 Gbps |
| Maximum Pixel Clock | 600 MHz |
| Content Protections | HDCP 1.x, HDCP 2.3 |
| Connector Type | 1x HDMI receptacle type A with screw locking option |
| Standards | HDMI 2.0, HDMI 1.4, DVI |
Ethernet |
|
| Control & User Data | 2 × 1000Base-T via RJ45 |
RS232 |
|
| Connector Type | 1 × 3Pol Phoenix |
| Symbol Rate | between 4800 and 115200 baud |
| Configuration | Data bits: 7 or 8 |
| Parity: none, odd or ever | |
| Stopbits: 1 or 2 | |
IR |
|
| Connector Type | 3.5mm connector (1/8'' mini-jack) (output only!) |
General |
|
| EDID management | 1 × pass-through or |
| 1 × stored (learned) EDID selected by the push button | |
| Powering | External 36W (12V, 3A) power supply |
| Power Consumption (max) | TBC |
| Thermal Dissipation (max) | TBC |
| Weight | TBC |
Operating Conditions |
|
| Ambient temperature | 0-50°C |
| Relative Humidity | 0-90% (non-condensing) |
| Complience | CE |
| Warranty | 3 years |
Lightware TPX HDMI Extenders
| Product Code | Description | Price | Inc. VAT |
| Lightware HDMI-TPX-RX106 | 1:1 4k HDMI 2.0 / RS-232 / Ethernet / PoC over Twisted Pair Receiver Max. 100m at 4K/UHD @60Hz 4:4:4; CEC, 4K/UHD, RS-232,EDID, HDCP2.3 | £730 | £876.00 |
| Lightware HDMI-TPX-TX106 | 1:1 4k HDMI 2.0 / RS-232 / Ethernet / PoC over Twisted Pair Transmitter Max. 100m at 4K/UHD @60Hz 4:4:4; CEC, 4K/UHD, RS-232,EDID, HDCP2.3 | £730 | £876.00 |
| Lightware HDMI-TPX-TX107 | 1:1 4k HDMI 2.0 / RS-232 / Ethernet / PoC over Twisted Pair Transmitter Max. 100m at 4K/UHD @60Hz 4:4:4; CEC, 4K/UHD, RS-232,EDID, HDCP2.3; Additional Gigabit Ethernet Port | £760 | £912.00 |
| Lightware UCX-4x3-TPX-TX20 | 4 × 3 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher / TP Transmitter with USB 3.1 Switch Hub 2 × HDMI, 2 × USB 3.1 inputs; 1 × 10G TPN, 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £3110 | £3732.00 |
