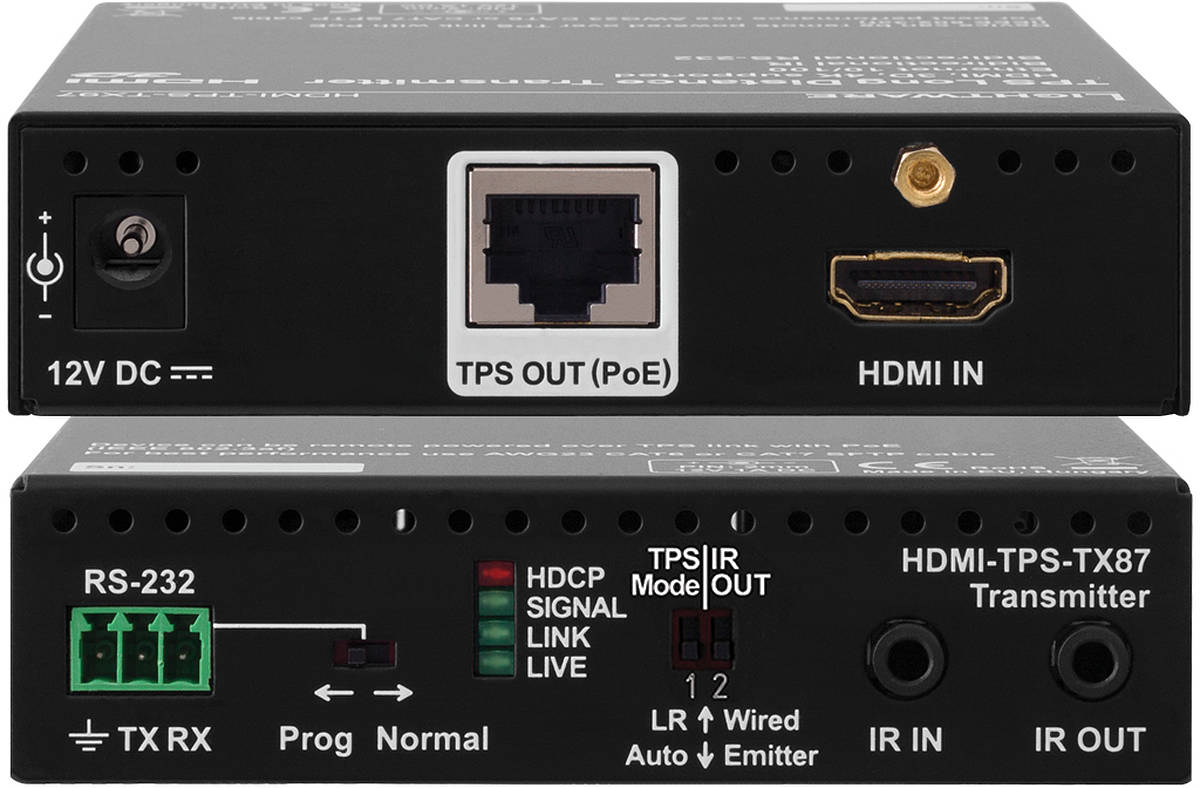

Lightware HDMI-TPS-TX87
1:1 HDBaseT HDMI/IR/RS-232/Ethernet/PoH over Twisted Pair Transmitter
Max. 100m at 4K or 170m at 1080p
Availability: Please Call
Lightware HDMI-TPS-TX87 (91540084)
HDMI-TPS-TX87 and HDMI-TPS-RX87 twisted pair HDBaseT™ compatible extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable. The unit offers bi-directional RS-232 and IR pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth handling all standard audio formats and also 120 Hz 3D signals. PoE 48V remote powering is available through a single CATx cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone.
The auto operation mode allows the device to detect the far end extender’s mode and adopt it. If the far end device is in Auto mode or it is a third party HDBaseT™ device the link will be set to HDBT mode. If the far device is in forced Long Reach Mode then the auto operation will set the Link to Long Reach Mode. The IR OUT can operate in either Wired (unmodulated) or Emitter (modulated) mode.
HDMI-TPS-TX87 and HDMI-TPS-RX87 are compatible with HDBaseT™ extenders and matrix switchers.
See also: Lightware HDMI-TPS-RX87.
Lightware HDMI-TPS-TX87 Key Features
- Extends DVI or HDMI 1.4 + Audio + RS-232 + IR over one CAT5/6/7 cable
- Can be remote powered through CATx cable (PoE PD)
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- Supports deep Colour signals (24/30/36 bit RGB/YCbCr 4:4:4)
- 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Supports all VESA and HDTV resolutions
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- Bi-directional RS-232 extension (pass-through)
- HDCP 2.2 compliant (transparent pass-through)
- Compatible with 120 Hz 3D video signals
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- No signal latency, zero frame delay
- Selectable operation mode (Auto or forced Long Reach mode)
- Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
- HDBaseT compatible
- Selectable IR output mode for emitter or wired connectivity
- Transparent EDID pass-through
- Bi-directional IR extension (pass-through)
- CEC support (pass-through)
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
- No video compression
- Bi-directional RS-232 and IR extension (pass-through)
- Status LEDs (Live, TPS link, signal and HDCP detect)
- Twist-and-lock DC power connector
- Low power mode (standby)
- External universal power adaptor
- Mounting options for rack, furniture or truss
- Order Code: 91540084
Lightware HDMI-TPS-TX87 Downloads
Lightware HDMI-TPS-TX87 Specifications
Connectivity |
|
| TX input, RX output | HDMI connector |
| TX output, RX input | RJ45 (TPS interface) |
| IR In, out | 3.5mm TRS connector (1/8’’ mini-jack) |
| Serial port | 3-pole PHOENIX |
| Power | Locking DC connector (2.1 / 5.5 mm) |
Video Resolutions and Max Distance
| Pixel clock | CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | |
|---|---|---|---|---|
| 1024x768@60Hz | 65MHz | 100m/130m* | 90m/120m* | 120m/170m* |
| 1280x720p@60Hz | 73.8MHz | 100m/130m* | 90m/120m* | 120m/170m* |
| 1920x1080p@60Hz/24bpp | 148.5MHz | 100m/130m* | 90m/120m* | 120m/170m* |
| 1920x1200@60Hz | 152.9MHz | 100m/NA | 90m/NA | 120m/NA |
| 1600x1200@60Hz | 162MHz | 100m/NA | 90m/NA | 120m/NA |
| 1920x1080@60Hz/36bpp | 223MHz | 70m/NA | 70m/NA | 100m/NA |
| 3840x2160@30Hz UHD | 297MHz | 70m/NA | 70m/NA | 100m/NA |
| 4096x2160@30Hz 4K | 297MHz | 70m/NA | 70m/NA | 100m/NA |
Processing |
|
| Data Rate | 3.4 Gbps per Colour |
| Resolution | All HDMI 1.4a resolutions supported |
| Equalization | Adaptive, automatic |
| EDID Support | Transparent |
| HDCP Pass Through | Yes |
| RS-232 Pass Through | Yes |
| IR Pass Through | Yes |
| Overall Signal Delay: | 10µs (including 100m CATx cable) |
Mechanical |
|
| Power | Universal power adaptor, DC 12 V 2.5 A OR PoE 48V |
| Power Consumption | 5.3 W (typ) 6.1 W (max) |
| Enclosure | 1 mm metal |
| Dimensions | 100.4 W × 100.4 D × 26 H mm |
| Weight | 330 g |
| Compliance | CE |
| Warranty | 3 years |
Lightware HDMI-TPS-TX87 Usage Diagram
