Lightware DA4-HDMI20-C
1:4 HDMI 2.0 Distribution Amplifier with Pixel Accurate Reclocking
1 × HDMI input; 4 × HDMI outputs; Max bandwidth 18Gbps
Availability: Please Call

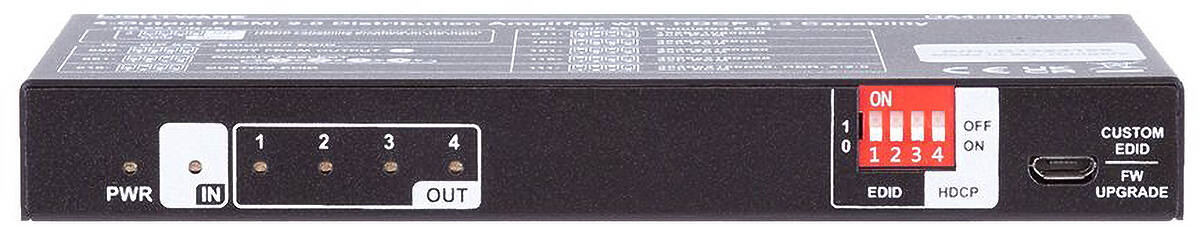

Lightware DA4-HDMI20-C (91320011)
The Lightware DA4-HDMI20-C is a compact distribution amplifier with built-in EDID Management and Pixel Accurate Reclocking, supporting DVI, HDMI 1.4, and HDMI 2.0 signals with or without HDCP encryption. The output signal is reclocked and stabilized to remove jitter caused by long cables or poor quality sources. Moreover, to ensure compatibility, the 4k signal on the output is automatically down-converted to HD when HD displays are connected.
DA4-HDMI20-C features EDID Management and can emulate EDID to the video source even if no active HDMI display is attached to the outputs. HDCP enable/disable function turns off the HDCP capability on the input, which helps integrate certain laptops into a non-HDCP AV environment. There are 5 factory EDID presets and one programmable memory for storing an user EDID. This latter one can be uploaded through the USB connector. Moreover, the device can use any EDID read from the HDMI display device connected to its video output ports.
Lightware DA4-HDMI20-C Key Features
- Automatic down-conversion on the output from 4k to 1080p if required by the connected HDMI display
- Support for all HDMI 2.0 embedded audio formats
- Mounting ears for easy fixture
- EDID Management
- EDID emulation of factory EDIDs, EDIDs read dynamically from the outputs, or custom EDID stored in memory
- 3D pass-through support
- EDID emulation in transmitter
- CEC support (pass-through)
- HDCP enable/disable function on input
- No signal latency, zero frame delay
- HDMI 2.0 signal support
- Input cable equalisation
- Compact size
- Firmware upgrade through USB
- Order Code: 91320011
Lightware DA4-HDMI20-C Specifications
Connectivity |
|
| Input | 1 × HDMI Connector |
| Output | 4 × HDMI Connectors |
| Control | Micro USB-B type |
| Power | DC connector |
Video Processing |
|
| Max Resolution | Up to 4096 × 2048@60Hz (4:4:4) |
| Up to 4096 × 2048@60Hz (4:2:2) at 12 bits/Colour | |
| Reclocking | Yes |
| HDCP Compliance | HDCP 2.3 |
| 3d Support | Yes |
| A/V Standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| Input Cable Equalization | Yes, +12dB fixed |
| EDID Emulation: | Yes, EDID management |
| EDID Memory: | 5 factory presets, 1 programmable |
| EDID Support: | EDID v1.3 |
| Digital Audio Formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
Control |
|
| Front Panel Control: | Yes, EDID selector switch |
| LED Indicators: | Live, Video Input Status, |
| Video Output Status | |
Mechanical |
|
| Power Consumption | 2.5W (max) |
| Supported Power Source | 100-240 V AC; 50/60 Hz |
| Supplied Power | 5V DC, 1A |
| Enclosure | 1 mm steel |
| Dimensions | 142 W × 70.4 D × 17.6 H mm |
| Net Weight | 260 gramms |
| Warranty | 3 years |
Lightware DA4-HDMI20-C Optional Cables
| Description | Length | Price | Inc. VAT | |
| Lightware CAB-HDMI20-AOC1000H 180Gbps hybrid fibre optic cable | 10.0m | £270 | £324.00 | |
| Lightware CAB-HDMI20-AOC1500H 180Gbps hybrid fibre optic cable | 15.0m | £300 | £360.00 | |
| Lightware CAB-HDMI20-AOC2000H 180Gbps hybrid fibre optic cable | 20.0m | £360 | £432.00 | |
| Lightware CAB-HDMI20-AOC3000H 180Gbps hybrid fibre optic cable | 30.0m | £380 | £456.00 | |
| Lightware CAB-HDMI20-AOC5000H 180Gbps hybrid fibre optic cable | 50.0m | £500 | £600.00 | |
| Lightware CAB-HDMI20-PHS100F Premium High Speed HDMI 2.0b flexy cable | 1.0m | £20 | £24.00 | |
| Lightware CAB-HDMI20-PHS200F Premium High Speed HDMI 2.0b flexy cable | 2.0m | £30 | £36.00 | |
| Lightware CAB-HDMI20-PHS300P Premium High Speed HDMI 2.0b flexy cable | 3.0m | £30 | £36.00 |
Lightware DA4-HDMI20-C Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| CYP QU-4-4K22 | 1:4 HDMI 2.0 and HDCP 2.2 distribution amplifier with 2K, 4K and 3D support 1 × HDMI input; 4 × HDMI outputs; Max bandwidth 18Gbps | £247 | £296.40 |
| Kramer VM-4H2 | 1:4 4K HDMI 2.0 Distribution Amplifier 3D, Deep Colour, x.v.Colour, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC, Max bandwidth 17.82Gbps | £338 | £405.60 |
| SY Electronics HS14E-18G | 1:4 4K HDMI 2.0 Splitter with HDR 1 × HDMI input; 4 × HDMI outputs; Max bandwidth 18Gbps | £158 | £189.60 |
| WyreStorm EXP-SP-0104-H2 | 1:4 HDMI 2.0 splitter/distribution amplifier 1 × HDMI input; 4 × HDMI output; Max. 18Gbps | £85 | £102.00 |
