Kramer 105VB
1:5 Video Distribution amplifier
1 × BNC input, 5 × BNC outputs
£165 (£198.00 inc. VAT)
Availability: In stock
Availability: In stock
Kramer 105VB (90-013590)

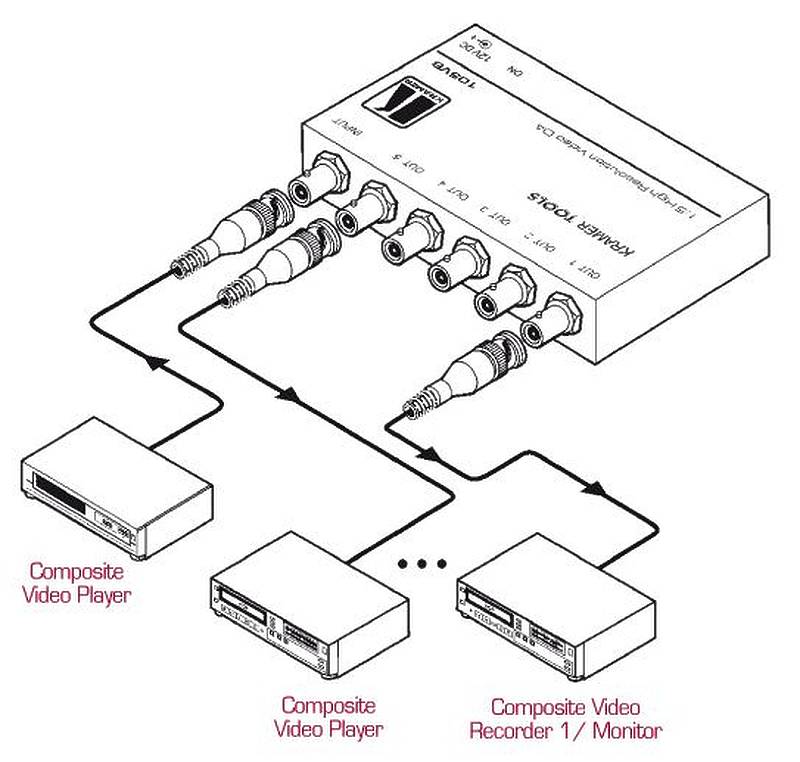

The Kramer 105VB is a high performance distribution amplifier for composite video signals. It takes one input, provides correct buffering and isolation and distributes the signal to five identical outputs.
Kramer 105VB Key Features
- Bandwidth — 400MHz (-3dB).
- Connectors — BNC (105V has RCA).
- Level (Gain) Control.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
- 7 year warranty (Click Here for details)
- Order Code: 90-013590
Kramer 105VB Specifications
Connectivity |
|
Input | 1 × composite video, 1Vpp/75Ω on a BNC connector |
Outputs | 5 × composite video, 1Vpp/75Ω on BNC connectors |
Video Specifications |
|
Max. Video Output | 2Vpp |
Video Bandwidth (-3db) | 400MHz |
Diff. Gain | 0.1% |
Diff. Phase | 0.1Deg |
K-factor | <0.05% |
S/n Ratio | 80dB |
Control | Up to +6dB |
Coupling | AC |
Mechanical |
|
Power | 12V DC, 100mA |
In The Box | 105VB, Power supply, mounting bracket |
Product Dimension | 12.00×7.15×2.44cm (4.72×2.81×0.96") W×D×H |
Product Weight | 0.2kg (0.5lbs) approx. |
Shipping Dimension | 23.20×12.00×8.90cm (9.13×4.72×3.50") W×D×H |
Shipping Weight | 0.7kg (1.5lbs) approx. |
Replacement Power Supplies
Product | Description | Price | Inc. VAT |
Kramer PS-1202 | 12V DC/2A Desktop Power Supply with power cord | £42 | £50.40 |
Kramer PS-1202-O | 12V DC/2A Open Head Power Supply | £33 | £39.60 |
Kramer PS-1205 | 12V DC/5A Desktop Power Supply with power cord | £65 | £78.00 |
Kramer VA-102P12 | 10-Output 12v DC/10A Power Supply (Max 1 Amp per channel) | POA |
Kramer 105VB Compatible Products
Product Code | Description | Price | Inc. VAT |
Kramer RK-3T-B | Rack Adapter 3 × Tools new shape and black colour | £78 | £93.60 |
