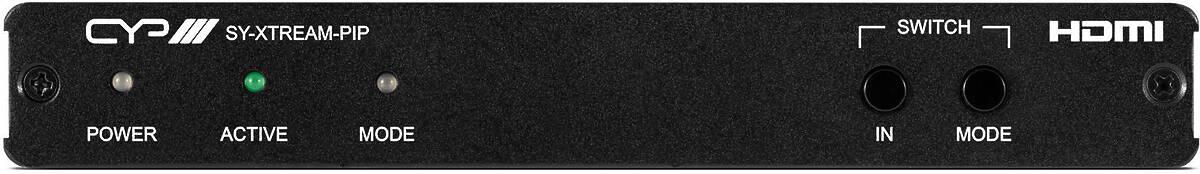

CYP SY-XTREAM-PIP

The CYP SY-XTREAM-PIP HDMI to USB video capture / recorder with HDMI bypass can support resolutions up to 18Gbps (600Mhz) 4K UHD with HDR (via the HDMI bypass pathway) while simultaneously streaming the audio and video signal at 1080p to the USB connected PC for capture and re-broadcast.

Special video timing stabilisation feature helps to ensure that the USB capture stream won't lock up or drop even if the HDMI input source is intermittent or disconnected. This makes your live streaming stable and non-stop.

USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat or streaming software, including the free OBS (Open Broadcast Software) streaming software which is available for Windows, macOS and Linux. The SY-XTREAM-PIP is powered directly by the USB 3.0 port so an external psu is not required (A -Y cable is required when connecting via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the 3rd party software used.
