CYP PUV-1510TX
1:1 HDBaseT 4K HDMI / HDCP2.2 / PoH / LAN / IR/RS-232 Transmitter
Max 70m @ 4K using CAT6a/7 cable
£228 (£273.60 inc. VAT)
Availability: In stock
Availability: In stock

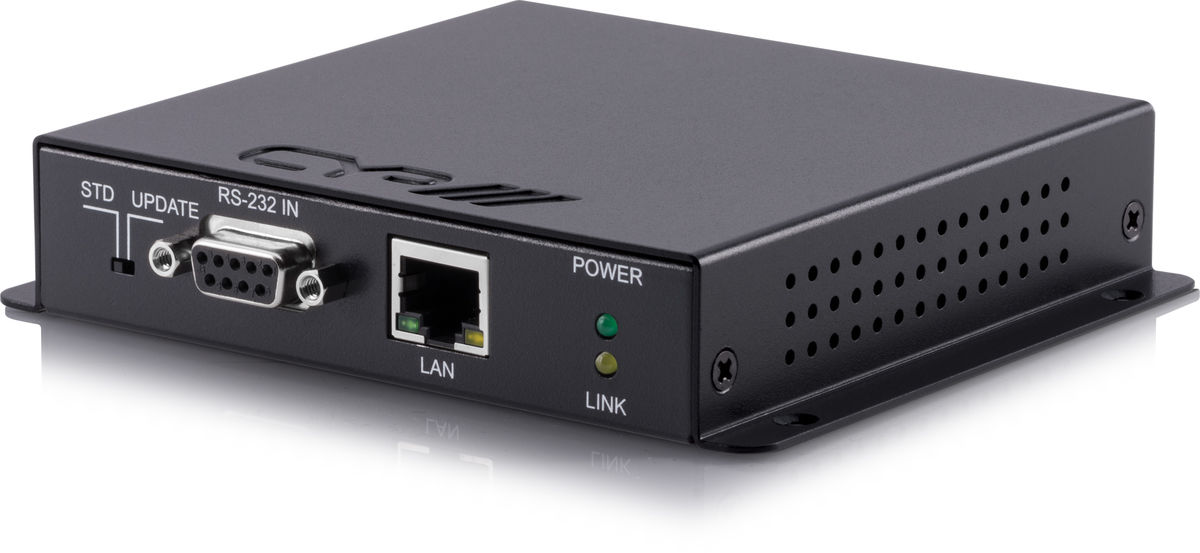

CYP PUV-1510TX
The CYP PUV-1510TX Transmitter enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoC (Power over Cable), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
CYP PUV-1510TX Key Features
- HDCP2.2 Compliant
- Supports uncompressed video/audio up to 10.2Gbps
- Supports HDCP repeating and CEC functions
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
- 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
- 5-Play convergence: HDMI, LAN, PoC & Control (IR & RS232)
- Supports 3D signals
CYP PUV-1510TX Specifications
Connectivity |
|
| Inputs | 1 × HDMI for HDMI Uncompressed AV and Data |
| 1 × 9pin D-sub for RS-232 Data | |
| 1 × 3.5mm Stereo mini-jack for Infra Red Receiver | |
| Outputs | 1 × RJ45 for HDBaseT output HDMI & Propriety Data |
| 1 × 3.5mm Stereo mini-jack for Infra Red Emitter | |
| 1 × RJ45 for Ethernet (I/O) IP | |
Mechanical |
|
| PSU | 48V/0.83A |
| Dimensions | 116mm W × 106mm D × 27mm H |
| Net Weight | 360g |
| Gross Weight | 680g |
CYP PUV-1510TX Usage Diagram
CYP PUV-1510TX Compatible Products
| Product Code | Description | Price | Inc. VAT |
| CYP PUV-1510RX | 1:1 HDBaseT 4K HDMI / HDCP2.2 / PoH / LAN / IR / RS-232 Receiver (Max 70m @ 4K using CAT6a/7 cable) | £179 | £214.80 |
| CYP PUV-1510RXWP | 1:1 HDBaseT HDMI / LAN / IR / RS-232 / PoH Twisted Pair Receiver (1 × HDMI input; 1 × HDBaseT output; Max 100m at 1080p or 70m at 4K, Max bandwidth 10.2Gbps) | £283 | £339.60 |
| CYP PUV-1510TXWP | 1:1 HDBaseT HDMI / LAN / IR / RS-232 / PoH Twisted Pair Transmitter (1 × HDMI input; 1 × HDBaseT output; Max 100m at 1080p or 70m at 4K, Max bandwidth 10.2Gbps) | £324 | £388.80 |
CYP PUV-1510TX Optional Cables
| Description | Length | Price | Inc. VAT | |
| CYP HDMP-050M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 0.5m | £21 | £25.20 | |
| CYP HDMP-100M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 1.0m | £22 | £26.40 | |
| CYP HDMP-200M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 2.0m | £25 | £30.00 | |
| CYP HDMP-300M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 3.0m | £29 | £34.80 | |
| CYP HDMP-500M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 5.0m | £44 | £52.80 | |
| CYP HDMP-600M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 6.0m | £43 | £51.60 | |
| CYP HDMI2-050-US Ultra Slim High Speed with Ethernet HDMI Cable | 0.5m | £10 | £12.00 | |
| CYP HDMI2-101-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.0m | £11 | £13.20 |
