CYP PUV-1230PL-TX
1:1 HDMI 2.0 / PoH / RS-232 / IR / OAR over HDBaseT LITE Transmitter
1 × HDMI input; 1 × HDBaseT LITE output; Max. 60m @ 4K using CAT6a/7 cable
£324 (£388.80 inc. VAT)
Availability: In stock
Availability: In stock

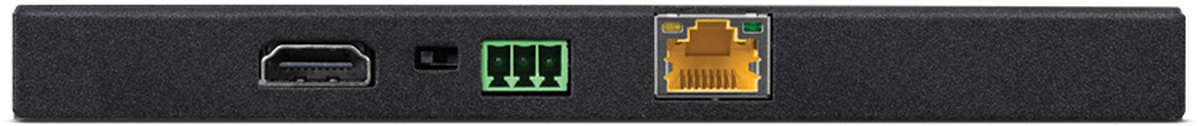

CYP PUV-1230PL-TX
The CYP PU-1230PL-TX Transmitter enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoC (Power over Cable), and OAR (Optical Audio Return) up to 60m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 60m.
See also: CYP PUV-1230PL-RX.
CYP PUV-1230PL-TX Key Features
- HDCP2.2 Compliant
- High-Definition video and audio, PoC (Power over Cable) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical Audio Return (OAR)
- Supports HDCP repeating and CEC functions
- Supports 3D signals
CYP PUV-1230PL-TX Downloads
CYP PUV-1230PL-TX Specifications
Connectivity |
|
| Inputs | 1 × HDMI Uncompressed AV and Data |
| 1 × Phoenix (3 pin) Analogue Stereo (L/R) Audio Input | |
| 1 × 3.5mm Stereo mini-jack Infra Red Receiver | |
| 1 × Phoenix (3 pin) RS-232 | |
| 1 × USB 3 Type B Service Port Power & Data | |
| Outputs | 1 × RJ45 HDBaseT HDMI & Propriety Data |
| 1 × Phoenix (3 pin) Analogue Stereo (L/R) Audio Output | |
| 1 × Toslink Optical DTS / Dolby Digital / 2 Channel LPCM | |
| 1 × 3.5mm Stereo mini-jack Infra Red Emitter | |
Mechanical |
|
| PSU | 48V/0.83A |
| Dimensions | 80mm × 165mm × 20mm |
| Net Weight | 335g |
| Gross Weight | 950g |
CYP PUV-1230PL-TX Usage Diagram
CYP PUV-1230PL-TX Optional Cables
| Description | Length | Price | Inc. VAT | |
| CYP HDMP-100M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 1.0m | £18 | £21.60 | |
| CYP HDMP-200M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 2.0m | £20 | £24.00 | |
| CYP HDMP-300M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 3.0m | £27 | £32.40 | |
| CYP HDMP-500M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 5.0m | £44 | £52.80 | |
| CYP HDMP-600M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 6.0m | £43 | £51.60 | |
| CYP HDMI2-050-US Ultra Slim High Speed with Ethernet HDMI Cable | 0.5m | £12 | £14.40 | |
| CYP HDMI2-101-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.0m | £13 | £15.60 | |
| CYP HDMI2-181-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.8m | £15 | £18.00 |
