CYP PU-1H7HBTPL
1:7 HDBaseT LITE HDMI / IR / PoH to Twister Pair transmitter and splitter
1 × HDMI input; 1 × HDMI, 7 × HDBaseT outputs; Max. 60m at 1080P or 4K
£1053 (£1263.60 inc. VAT)
Availability: In stock
Availability: In stock

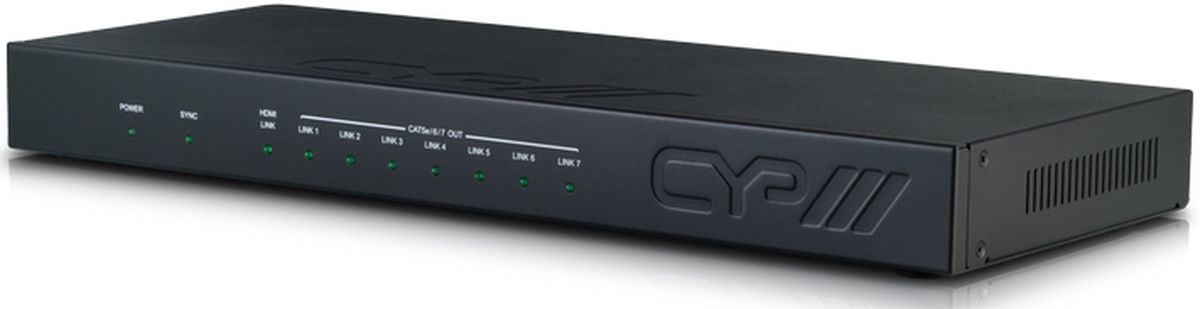

CYP PU-1H7HBTPL
The CYP PU-1H7HBTPL enables a single HDMI source input to be distributed to 7 HDBaseT Lite with PoC outputs. The HDBaseT Lite outputs allow uncompressed distribution of HDMI, and IR signals over a Single CAT5e/6/7 cable up to lengths of 60m. Perfect for both residential and commercial AV installations, the PU-1H7HBTPL can distribute HDMI signals to 7 displays. The product also includes an additional HDMI output for increased flexibility and can also be cascaded up to 5 times to allow distribution to more screens.
PU-515PL-RX Receivers are recommended to utilise the full functionality of the HDBaseT LITE with PoC outputs of this device.
CYP PU-1H7HBTPL Key Features
- Supports all v1.4 HDMI resolutions plus 4K
- HDMI, HDCP, & DVI compliant
- Supports uncompressed video/audio up to 10.2Gbps
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- Supports HDCP repeating and CEC functions
- Supports 1080p distances up to 60 meters through CAT5e/6 cables
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
- Supports HDMI / IR
- Supports 3D signals
- Supports PoC (power over cable) providing power for the receivers
- Supports 4K/2K & 4K UHD - CAT5e/6 = 35m & CAT6a/7 = 40m
CYP PU-1H7HBTPL Downloads
CYP PU-1H7HBTPL Specifications
Connectivity |
|
| Inputs | 1 × HDMI for HDMI Uncompressed AV and Data |
| 1 × 3.5mm Stereo mini-jack for Infra Red Receiver | |
| Outputs | 1 × HDMI for HDMI Uncompressed AV and Data |
| 7 × RJ45 for HDBaseT Lite PoC HDMI & Propriety Data | |
| 1 × 3.5mm Stereo mini-jack for Infra Red Emitter | |
Mechanical |
|
| PSU | 24V/6.25A |
| Dimensions | 430mm W × 180mm D × 40mm H |
| Net Weight | 2120g |
| Gross Weight | 3300g |
CYP PU-1H7HBTPL Usage Diagram
CYP PU-1H7HBTPL Compatible Products
| Product Code | Description | Price | Inc. VAT |
| CYP PU-515PL-RX | 1:1 HDBaseT-Lite HDMI / IR / PoH Twisted Pair Receiver (1 × HDBaseT input; 1 × HDMI output; Max. 60m at 1080p, 35m at 4K) | £108 | £129.60 |
CYP PU-1H7HBTPL Optional Cables
| Description | Length | Price | Inc. VAT | |
| CYP HDMP-100M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 1.0m | £18 | £21.60 | |
| CYP HDMP-200M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 2.0m | £20 | £24.00 | |
| CYP HDMP-300M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 3.0m | £27 | £32.40 | |
| CYP HDMP-500M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 5.0m | £44 | £52.80 | |
| CYP HDMP-600M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 6.0m | £43 | £51.60 | |
| CYP HDMI2-050-US Ultra Slim High Speed with Ethernet HDMI Cable | 0.5m | £12 | £14.40 | |
| CYP HDMI2-101-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.0m | £13 | £15.60 | |
| CYP HDMI2-181-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.8m | £15 | £18.00 |
CYP PU-1H7HBTPL Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| CYP PU-1H7HBTE | 1:7 HDBaseT HDMI / LAN / IR / RS-232 / PoH to Twister Pair transmitter and splitter 1 × HDMI input; 1 × HDMI, 7 × HDBaseT outputs; Max. 100m at 1080P or 4K | £1548 | £1857.60 |
| tvONE 1T-CT-647 | 1:7 HDBaseT-Lite HDMI over Twisted Pair distribution amplifier 1× HDMI input; 1 × HDMI and 7 × twisted pair outputs; Max. 60m at 1080p | £1567 | £1880.40 |
