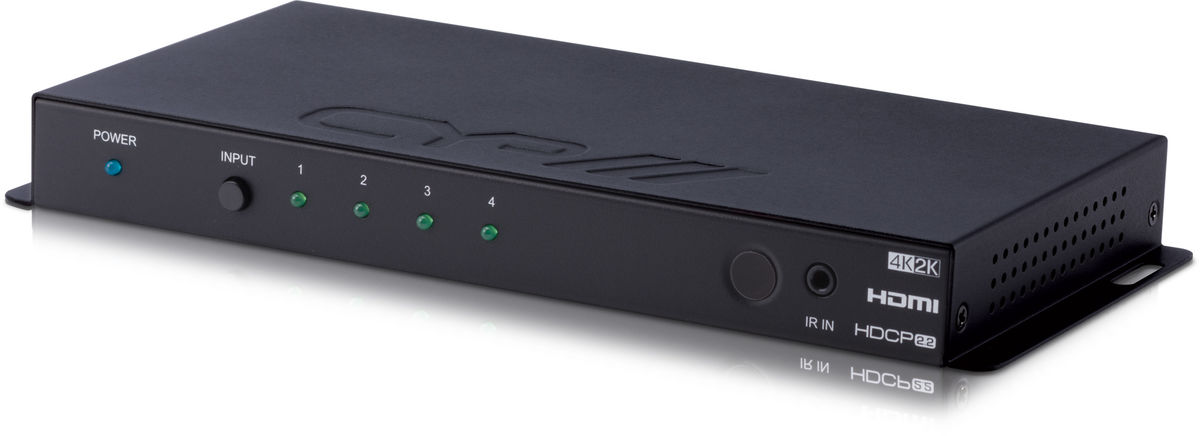

CYP EL-41S-4K22
4:1 4K HDMI 2.0 switcher
4 × HDMI inputs; 1 × HDMI output; 3D and 4K compatible, Deep Colour support, HDCP 2.2, Web GUI
£167 (£200.40 inc. VAT)
Availability: In stock
Availability: In stock
CYP EL-41S-4K22
The CYP EL41S-4K22 HDMI Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to a single HDMI display. This switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The EL-41S-4K22 supports all the latest features of the HDMI 2.0 specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR (High Dynamic Range), 'Deep Color', and High Definition audio. In addition, this switcher also features an Auto-Switching function which detects the last active input and switches to this input automatically for display. Control is via IR remote control and RS-232.
CYP EL-41S-4K22 Key Features
- HDMI 2.0, HDCP 2.2 and DVI compatible
- Supports 4 HDMI inputs and 1 HDMI output
- Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/50/60Hz)
- Supports pass-through of HD audio formats of PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports control via IR remote and RS-232
- Supports Auto-switching which can send the signal of the latest active HDMI input source to output port
CYP EL-41S-4K22 Downloads
CYP EL-41S-4K22 Specifications
Connectivity |
|
| Inputs | 4 × HDMI for HDMI 2.0 Uncompressed AV and Data |
| 1 × 3.5mm Stereo mini-jack for Infra Red Receiver | |
| 1 × 9pin D-sub for RS-232 Data | |
| 1 × RJ45 for IP Control | |
| 1 × USB Type A for Service Port Propriety Data | |
| Outputs | 1 × HDMI for HDMI 2.0 Uncompressed AV and Data |
Mechanical |
|
| PSU | 5V/2.6A |
| Dimensions | 117mm W × 231mm D × 25mm H |
| Net Weight | 590g |
| Gross Weight | 1090g |
| In The Box | EL41S-4K22 Switch |
| 5V/2.6A DC power Adaptor | |
| Operation Manual | |
| IR Remote Control (Batteries Included) | |
CYP EL-41S-4K22 Usage Diagram
CYP EL-41S-4K22 Optional Cables
| Description | Length | Price | Inc. VAT | |
| CYP HDMP-100M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 1.0m | £18 | £21.60 | |
| CYP HDMP-200M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 2.0m | £20 | £24.00 | |
| CYP HDMP-300M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 3.0m | £27 | £32.40 | |
| CYP HDMP-500M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 5.0m | £44 | £52.80 | |
| CYP HDMP-600M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 6.0m | £43 | £51.60 | |
| CYP HDMI2-050-US Ultra Slim High Speed with Ethernet HDMI Cable | 0.5m | £12 | £14.40 | |
| CYP HDMI2-101-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.0m | £13 | £15.60 | |
| CYP HDMI2-181-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.8m | £15 | £18.00 |
CYP EL-41S-4K22 Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| CYP AU-D250-4K22 | 4:1 HDMI 2.0 Switcher with Advanced DAC and Audio Breakout UHD HDCP2.2 HDMI 4 × HDMI inputs; 1 × HDMI output; Max bandwidth 18Gbps | £692 | £830.40 |
| CYP EL-41HP-4K22 | 4:1 4K HDMI 2.0 switcher 4 × HDMI inputs; 1 × HDMI output; Deep Colour support, HDCP 2.2, Web GUI, Telnet, Max bandwidth 18Gbps | £327 | £392.40 |
| Kramer VP-440X | 5:1 × 2 4K60 4:4:4 Presentation Switcher/Scaler with HDBaseT & HDMI Simultaneous Outputs 4 × HDMI 2.0, 1 × VGA inputs; 1 × HDMI 2.0, 1 × HDBaseT outputs | £810 | £972.00 |
| Kramer VS-411X | 4:1 4K 60Hz 4:4:4 HDR HDMI Auto Switcher 4 × HDMI inputs; 1 × HDMI output; HDMI 2.0, HDCP 2.2; Max bandwidth 17.82Gbps | £260 | £312.00 |
| SY Electronics HDS41A-18G | 4:1 HDMI 2.0 Switcher with ARC and Audio De-Embedding 4 × HDMI Inputs; 1 × HDMI, 1 × 3.5mm stereo Output; 18Gbps | £190 | £228.00 |
