Blackmagic Design CONVMBSH4K6G
1:1 SD/HD/6G-SDI to HDMI converter
£179 (£214.80 inc. VAT)
Availability: 7-10 days
Availability: 7-10 days

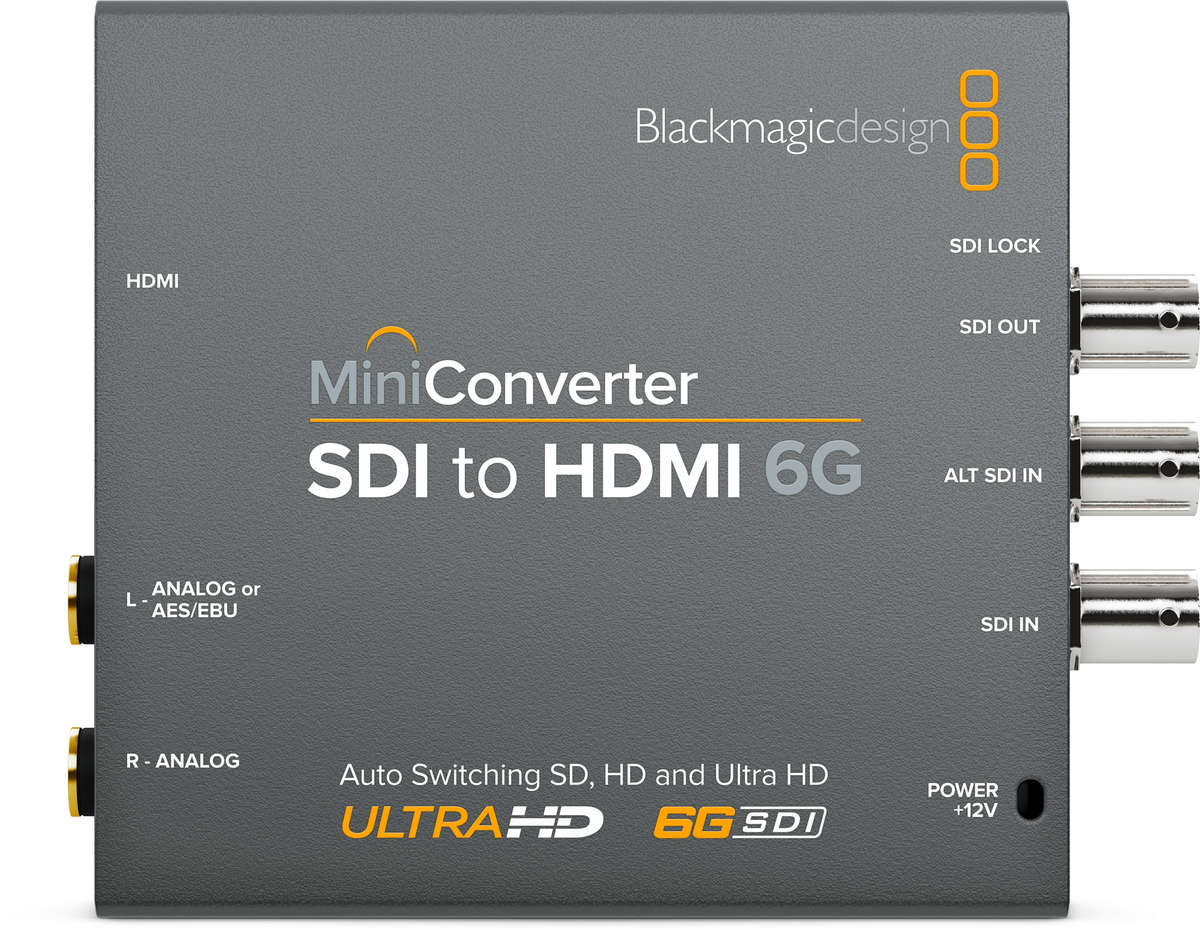

Blackmagic Design CONVMBSH4K6G
Blackmagic Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock for instant video display when an SDI input is connected!
Blackmagic Design CONVMBSH4K6G Key Features
- Convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analogue audio
- Down conversion for monitoring Ultra HD on HD HDMI monitors
- Built in 3D LUTs
- HDMI instant lock for instant video display when an SDI input is connected
Blackmagic Design CONVMBSH4K6G Specifications
Connections |
|
| SDI Video Inputs | 1 x SD, HD or 6G?SDI. 1 x ALT SDI Input for automatic switch over if main input fails. |
| SDI Video Outputs | 1 x SDI Video Loop Output. |
| HDMI type A out. | |
| Analogue Audio Outputs | 2 channels of balanced analog audio. |
| Digital Audio Outputs | 4 channels of AES/EBU digital audio |
| SDI Redundant Input | Automatically switches over if main SDI input is lost. |
| Multi Rate Support | Auto detection of SD, HD or 6G?SDI. |
| Updates and Configuration | USB |
| Reclocking | Yes |
Standards |
|
| SD Video Standards | 625i50 PAL, 525i59.94 NTSC |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G?SDI and 6G-SDI. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 6G?SDI. |
| HDMI Video Standards | 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Color Space | YUV and RGB |
| HDMI Color Precision | 4:2:2 and 4:4:4 |
Misc |
|
| In The Box | Mini Converter SDI to HDMI 6G |
| 12V universal power supply with international socket adapters | |
| Dimensions | 4.49 x 3.63 x 0.90in. |
| Warranty | 3 Year Limited Manufacturer's Warranty. |
Blackmagic Design CONVMBSH4K6G Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| AJA Hi5-4K-Plus | 4K 3G-SDI to 4K HDMI 2.0 with HDR Converter | £776 | £931.20 |
