Extron CCB 30 (70-1124-02)

Contact Closure Remote with Three LED Switches, Cable Cubby and AVEdge

£292 (£350.40 inc. VAT)
Availability: In stock

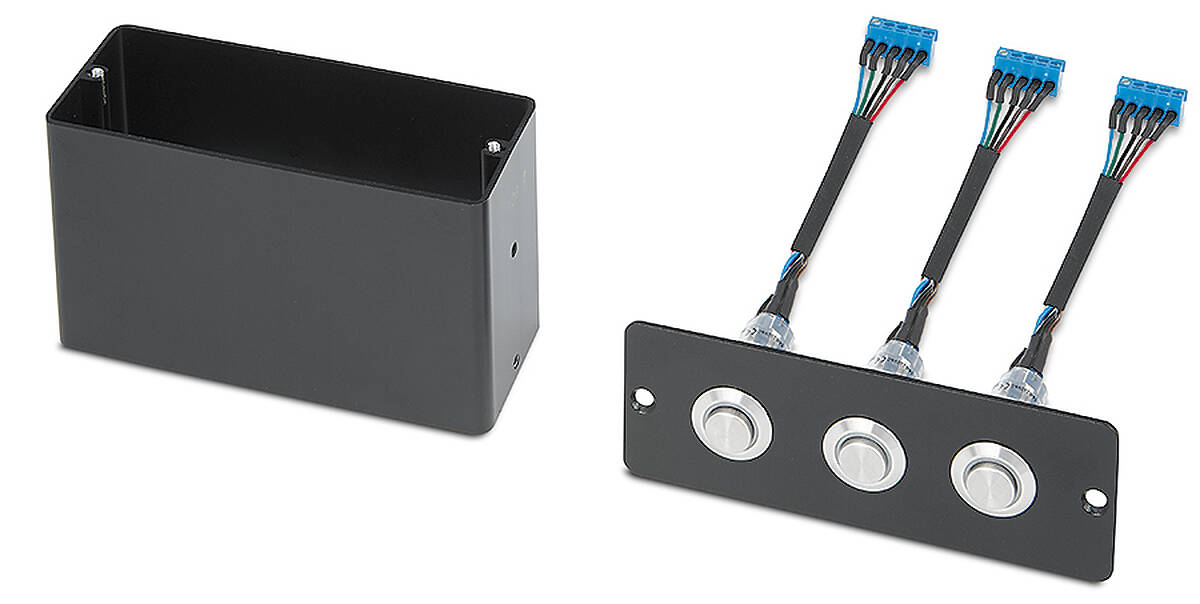

The CCB 30 is a three-button contact closure remote control panel that mounts in Cable Cubby 700 and AVEdge 100 enclosures. The CCB 30 provides control of input selection on Extron switchers and control products with contact closure control ports. Three brushed stainless steel push-button switches feature a raised surface for ease of access and tactile feedback. LED rings around the switches light for visual feedback. For ease of switch function identification, custom laser-etched faceplate labelling is available. The CCB 30 includes a mounting bracket and other installation hardware.

Extron CCB 30 Key Features

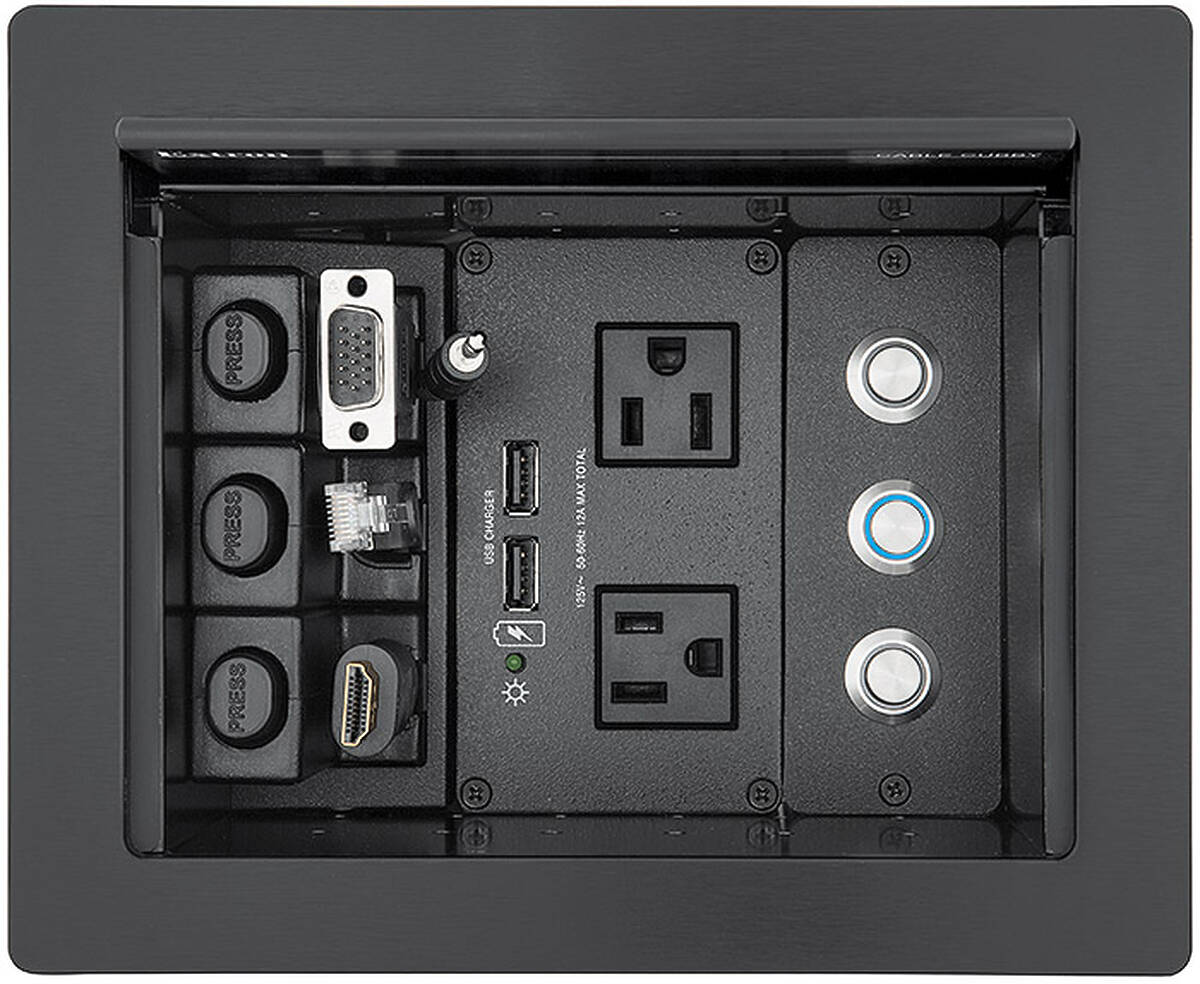

Mounts in most Cable Cubby® and AVEdge 100 cable access enclosures
Three-button contact closure remote control panel for Extron switchers or control modules with contact closure ports
Switches provide momentary operation for input selection, volume adjustment, or other functions

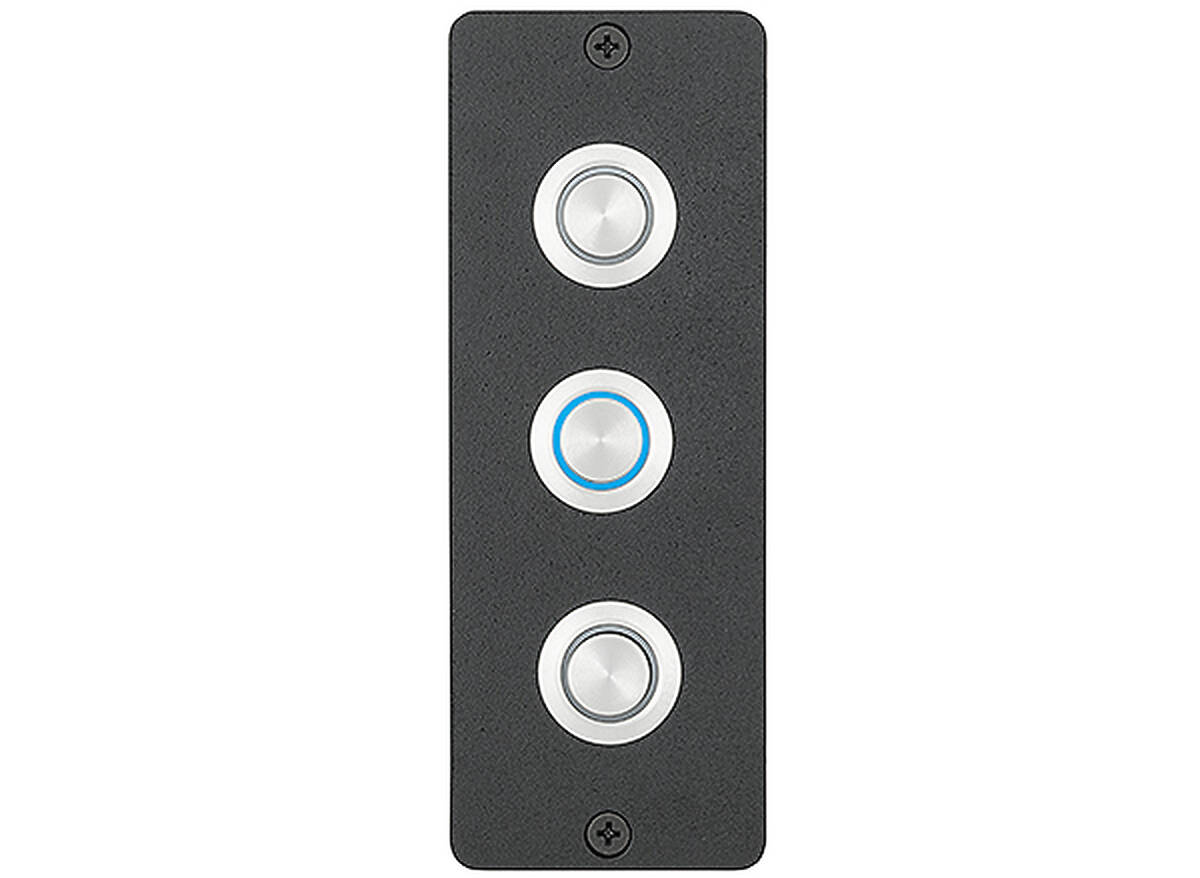

Raised push-button switches allow the user to press with ease
LED ring lights for visual feedback of switch status - LEDs are powered directly from the tally outputs of the connected Extron switcher or control module

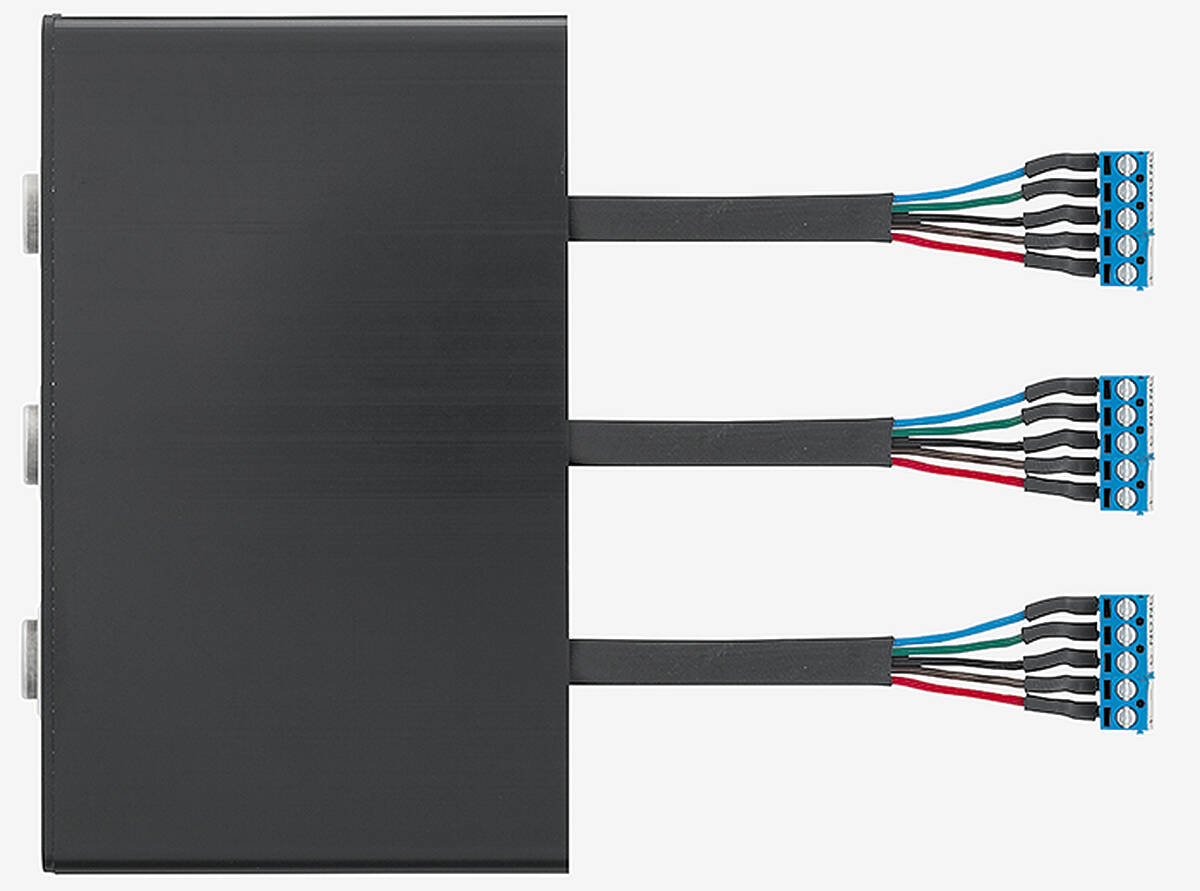

5-pole, 3.5 mm captive screw connectors on 4” pigtails for ease of installation
Custom, laser-etched faceplate labelling is available for easy identification of switch functions
Black anodised faceplate complements Cable Cubby and AVEdge 100 enclosures
