Extron AAP SuperPlate 100 (70-1076-02)

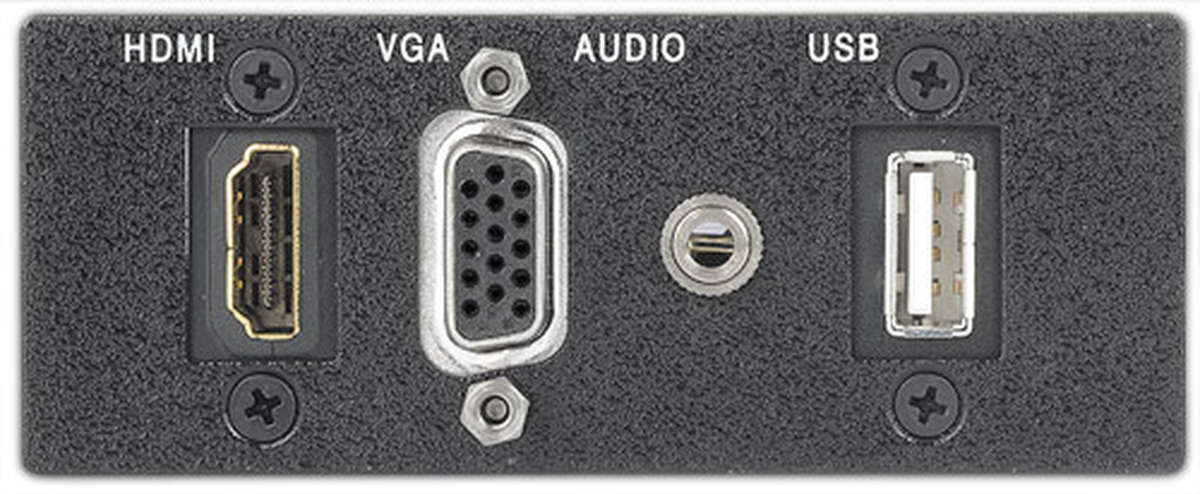

AAP SuperPlate Double Space HDMI, VGA, PC Audio and USB 2.0 finished in black or white [70-1076-03]

For pricing and configuration options please call or email us.

The AAP SuperPlate Series of double-space AAP™ AV Connectivity Modules provides convenient, pass-through connectivity for HDMI, DisplayPort, VGA, Stereo Audio, Network, or USB signals. For ease of installation, all connections except Network utilize short, female to female pigtail cables. Network modules utilise a female to female CAT 5e barrel. The AAP SuperPlate Series is designed to work with any Extron AV Connectivity Mounting Frame or enclosure that accommodates two or more single-space AAP modules, including Cable Cubby Series Cable Access Enclosures, HSA 400 and HSA 402 Hideaway Access Enclosures, the AVEdge Edge Mount Enclosure, and TMK 100 Series Under Table Mounts; sold separately.

Extron AAP SuperPlate 100 Key Features

Double-space AAP™ AV Connectivity Modules for HDMI, DisplayPort, VGA, Stereo Audio, Network, or USB (model dependent)
- HDMI: HDMI female to HDMI female 10" (25 cm) pigtail
- DisplayPort: DisplayPort female to DisplayPort female on 10" (25 cm) pigtail
- VGA: VGA 15-pin female to VGA 15-pin female on 6" (15 cm) pigtail
- Stereo Audio: Stereo Audio 3.5 mm stereo mini jack to captive screw on 10" (25 cm) pigtail
- Network: RJ-45 female to female barrel - CAT 5e barrel
- USB 2.0: Type‑A female to Type‑A female on 10" (25 cm) pigtail
- USB 3.2: Type‑A female to Type‑B female on 10" (25 cm) pigtail
New USB 3.2 transfers data between USB devices at rates up to 5 Gbps
Signals passed through unprocessed
Supports DDC transmission - Facilitates EDID communication between the display and connected HDMI, DisplayPort, and VGA sources
Available in black or white
Cable access enclosures and other mounting hardware sold separately

Extron AAP SuperPlate Range

Extron AAP SuperPlate 100

Extron AAP SuperPlate 103

Extron AAP SuperPlate 110

Extron AAP SuperPlate 120

Extron AAP SuperPlate 130

Extron AAP SuperPlate 160

Extron AAP SuperPlate 170

Extron AAP SuperPlate 173
