Extron DSC 12G-HD A (60-2061-01)

12G-SDI to HDMI Scaler with Stereo Audio

1 × 12G-SDI BNC input with loop; 1 × HDMI output; 1.48–11.88Gbps

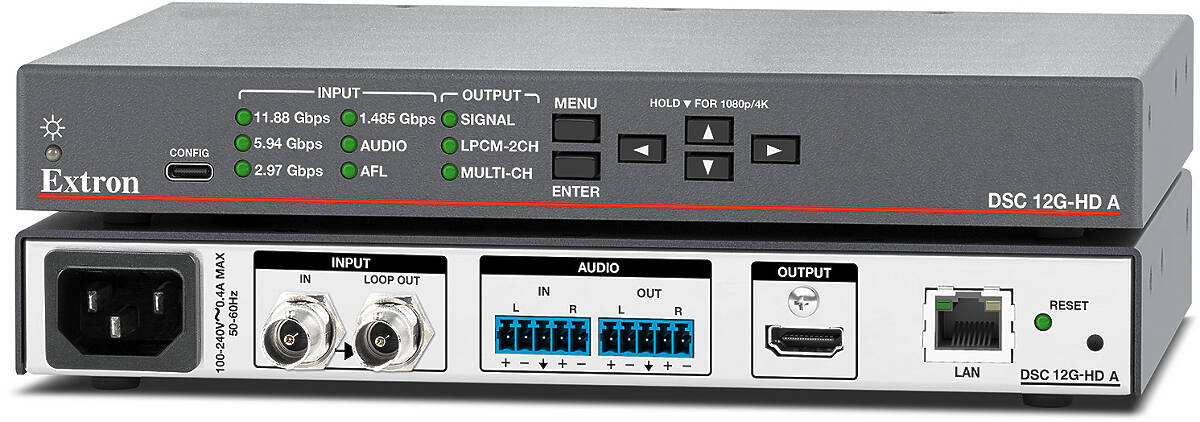

Extron DSC 12G-HD A 60-2061-01 product image

£2300 (£2760.00 inc. VAT)
Availability: In stock

The Extron DSC 12G-HD A is a high-performance multi-format SDI to HDMI scaler. It converts 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI to HDMI. It accepts and scales SMPTE video resolutions from 720p up to 4K/60. The user can select between multiple output rates up to 4K/60 or utilize a custom output resolution. It incorporates the Extron-exclusive Vector™ 4K scaling engine for critical-quality 4K applications. Audio from the SDI or analogue audio input is available on the HDMI and analogue audio outputs. An SDI input loop-out, motion-adaptive deinterlacing for 1080i, Deep Color processing, seamless upstream transitions, and the ability to display logo images for on-screen messages and corporate branding facilitate integration in demanding professional environments.

Vector 4K Scaling

The DSC 12G-HD A incorporates Extron Vector™ 4K scaling technology, developed in‑house, and engineered to deliver best-in-class image upscaling and down scaling. The Vector 4K engine embodies a complete set of image processing algorithms that ensure uncompromising scaling performance with 30‑bit precision processing. This enables sharp, accurate scaling of standard definition and high definition signals up to 4K, as well as down scaling of 4K source signals for lower resolution displays without losing critical image detail.

The DSC 12G-HD A offers a range of upstream switching effects. These include a freeze/fade transition that fades out a final frozen frame of the previous input source as the newly detected source fades in, a cut through black transition, and a fade through black transition. Selectable FILL and FOLLOW modes are available to set the desired video aspect ratio. FILL mode provides full screen output, while FOLLOW mode preserves the original signal’s aspect ratio.

Audio Flexibility

The DSC 12G‑HD A offers enhanced audio capabilities, including HDMI audio embedding, input gain and attenuation controls, and input audio muting. To suit the needs of the application, the scaler can embed analogue audio signals or up to four pairs of AES audio channels from the SDI input onto the HDMI output. The DSC 12G‑HD A provides gain and attenuation adjustments for the analogue stereo input, as well as the ability to mute.

Display Custom Images and Logos

The DSC 12G-HD A provides the convenience of uploading custom images, which can be displayed as a screen saver after a predefined duration of inactivity at the video input, or whenever the input is disconnected between presentations.

A custom graphic logo, such as a company logo, can be inserted into any presentation. Several key effects are available, and a logo can be positioned anywhere on‑screen.

Multiple Options for Control and Operation

The DSC 12G‑HD A features front panel controls for quick access to functions. Local and remote configuration and control are available via USB and Ethernet. The on-screen menus provide control over the unit's functions and settings, including quick access to key parameters such as input and output video formats and resolutions. Additionally, LED indicators on the front panel provide visual confirmation of input and output signal format and signal presence. The DSC 12G‑HD A is housed in a 1”, half rack width metal enclosure and can be easily integrated into a variety of environments.

Extron DSC 12G-HD A Key Features

Multi-rate SDI to HDMI video scaling - The DSC 12G-HD A provides high quality conversion of signal format and video resolution with audio embedding.
Accepts 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI signals at data rates from 1.48 Gbps to 11.88 Gbps - The DSC 12G-HD A accepts video formats from 720p up to 4K/60. It complies with SMPTE 292M, SMPTE 424M, SMPTE ST-2081, and SMPTE ST-2082 digital video standards.
Advanced Extron Vector™ 4K scaling engine - The Vector™ 4K scaling engine is specifically designed for critical-quality 4K imagery, with best-in-class image upscaling and down scaling.
Logo image keying and display - A logo graphic can be positioned and keyed over live video. Logo graphics in BMP, JPG, PNG, or TIFF format may be uploaded to the unit. Full screen images up to 4K resolution can also be displayed to eliminate loss of video between presentations.
Selectable output rates from 640x480 to 4K/60 - Available output rates include video resolutions from 640x480 to 4096x2160.
Supports custom output resolutions - User-defined output resolutions up to 600 MHz pixel clock can be supported by uploading custom EDID files or capturing EDID from a display or other destination device.
AFL™ - Accu-RATE Frame Lock - A patented technology exclusive to Extron that locks the output frame rate to the input to eliminate stuttering caused by frame rate conversion.
Audio embedding - Analogue audio or up to four pairs of AES audio channels from the SDI input can be embedded onto the HDMI output.
Audio de-embedding - Two channel LPCM SDI audio can be extracted to the Analogue audio output, or multi-channel and bit stream formats can be passed to the HDMI output.
Aspect ratio control - The aspect ratio of the video output can be controlled by selecting a FILL mode, which provides a full screen output, or a FOLLOW mode, which preserves the original aspect ratio of the input signal.
Displays user-supplied images for screen saver, corporate branding, and logo insertion - Custom, user-loaded images can be displayed as a screen saver after a predefined duration of inactivity at the video input, or whenever the input is disconnected between presentations.
Image freeze control - A live image can be frozen using Ethernet or USB.
Auto Input Memory - When activated, the unit automatically stores size, position, and picture settings based on the incoming signal. When the same signal is detected again, these image settings are automatically recalled from memory.
Selectable output Colour space - The Colour space can be set to RGB or component video.
Motion-adaptive deinterlacing for 1080i signals - Advanced deinterlacing for interlaced 1080i signals delivers optimized image quality.
Automatic 3:2 and 2:2 pulldown detection - Advanced film mode processing techniques that help maximize image quality for 1080i sources that originated from film.
Input equalisation and reclocking on buffered loop-out - Automatically equalizes incoming SDI signals and reshapes and restores signals on the buffered loop-out.
HDMI to DVI Interface Format Correction - Automatically enables or disables embedded audio and InfoFrames, and sets the correct Colour space for proper connection to HDMI and DVI displays.
On-screen menus - Intuitive on-screen menus allow for easy system setup using the front panel controls. Key parameters such as input and output video formats are conveniently grouped on the initial Quick Setup screen, while additional screens provide full control over the unit's other functions and settings.
Picture controls for brightness, contrast, and detail, as well as horizontal and vertical positioning, overscan, and sizing
User presets - Memory presets are available to store and recall optimized image settings.
Internal video test patterns and pink noise generator for calibration and setup - The scaler offers several video test patterns and audio pink noise to facilitate proper system setup and calibration of display devices.
Audio input gain and attenuation - Gain and attenuation can be adjusted for the Analogue stereo input.
Output volume control - Provides master volume control for the Analogue and HDMI embedded audio outputs.
Integrated audio delay - The audio output is automatically delayed to compensate for latency introduced by the video processing.
Selectable audio muting - The HDMI-embedded and Analogue audio outputs can be independently muted.
Output Standby Mode - The unit can be set to automatically mute video and sync output to the display device when no active input signal is detected. This allows the projector or flat-panel display to automatically enter into standby mode to save energy and enhance lamp or panel life.
Power Save Mode - The DSC 12G-HD A can be placed in a low power standby state to conserve energy when not in use.
Meets Ecofficient Level 1 - Includes an energy-saving, externally controllable standby mode that puts the device in a low power state when not in use.
Front panel security lockout - Locks out all front panel functions; all functions, however, are available through Ethernet and USB.
Ethernet monitoring and control - Enables control and proactive monitoring over a LAN or WAN. An intuitive Web interface is included for system monitoring and firmware updates.
Built in Web pages - Enables the use of a standard browser for monitoring, troubleshooting, and firmware updates over an intuitive Web interface.
Front panel USB-C® configuration port - Enables easy configuration without having to access the rear panel.
Front panel LED indicators for signal format, presence, and power - Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
1”, half rack width metal enclosure
Includes LockIt® Plus cable lacing brackets - Securely fastens HDMI or USB-C® cables to a device, eliminating risk of disconnection.
Internal Extron Everlast™ power supply - Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating cost.
Extron Everlast Power Supply is covered by a 7 year parts and Labour warranty
