Extron HDMI & SDI cables

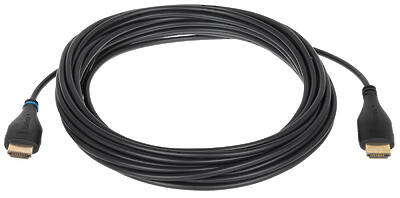

The Extron HD Pro Plenum Series of active, hybrid optical-copper cables provide high-speed transmission of HDMI digital video and audio signals. These cables conform to Premium High Speed HDMI Cable performance standards and support data rates up to 18 Gbps, video resolutions up to 4K/60 @ 4:4:4, HDR, EDID, HDCP, and CEC. All HDMI audio formats are supported, including PCM 8-channel, Dolby© Digital, Dolby TrueHD, and DTS-HD Master Audio. Ultra-thin 0.16" (4 mm) diameter, narrow bend radius cable construction provides ease of installation in tight spaces, including plenum air spaces, without compromising performance. The active cables are unidirectional and draw ultra-low power from the connected HDMI source device. The HD Pro Plenum Series cables are available in lengths from 25 feet to 300 feet (7.6 meters to 91.4 meters).

• ConfoRMS to Premium High Speed HDMI Cable performance standards
• Supports data rates up to 18 Gbps, video resolutions up to 4K/60 @ 4:4:4, and HDR
• Support for HDR - High Dynamic Range video - Enables greater contrast range and wider colour gamut by providing the necessary video bandwidth, colour depth, and metadata interchange capability for HDR video.
• PCM 8-channel, Dolby© Digital, Dolby TrueHD, DTS-HD Master Audio support
• Supports EDID, HDCP, and CEC
• 4K/60 verified
• Flexible, ultra-thin 0.16” (4 mm) diameter cable - Narrow bend radius facilitates easier installation and reduces possibility of cable damage.
• Plenum, NEC CMP-rated cable - Cable can run through open air spaces, eliminating the need for a conduit in most jurisdictions. The cable is rated for in wall and ceiling installations.
• No external power is needed - Built-in active circuitry is powered by the connected source device.
• Highly resistant to EMI/RFI interference - HD Pro Plenum Series can be used in high interference environments such as data centres or manufacturing facilities.
• Gold-plated contacts - Contacts will not tarnish, maintaining a long-lasting, reliable electrical connection.
• Colour-coded and labelled ends - Blue-coloured collar ring around the neck of the source connector and moulded text provide visual identification for cable orientation.
• Available in lengths from 25 feet to 300 feet (7.6 meters to 91.4 meters)

• High performance HDMI cables specifically designed to carry high definition digital video signals
• Offers the performance and bandwidth to carry HDMI signals up to 50 feet (15 m)
• Ideal for interconnecting HDMI devices to DVI-D sources or displays 1080p/60 verified
• NEC CL2 rated, non-plenum cable

Extron HDMI Pro Series cables are designed for applications that require high performance transmission of HDMI digital video and audio signals. Depending on the length of the cable, HDMI Pro Series cables conform to Premium High Speed, High Speed, or Standard HDMI Cable performance standards. Premium High Speed and High Speed HDMI Cables support 4K resolutions. Standard HDMI Cables support 1080p or 720p resolutions. Cables are constructed with 22 AWG copper wire and gold plated contacts. Extron HDMI Pro cables are available in lengths from 25 feet to 200 feet (7.6 meters to 60 meters).

• Conforms to Premium High Speed, High Speed, and Standard HDMI cable performance standards
• 4K/60 verified for 25 feet (7.6 m)
• 4K/60 verified for 35 feet (10.6 m) with a cable equalizer
• HD 4K 101 Plus cable equalizer is recommended for 4K and 1080p signals
• Supports ARC and CEC
• 22 AWG copper wire construction
• Gold plated contacts
• NEC CM rated
• Available in lengths from 25 feet to 200 feet (7.6 m to 60 m)

The Extron HDMI Ultra Series cables are designed to transmit high-speed digital video and audio signals. The HDMI Ultra Series is engineered with Extron-exclusive ultra-flexible, 30 AWG cable and features a low bend radius and compact, gold-plated connectors. They are ideal for applications with tight equipment racks or AV presentation furniture, or with wall-mount or pole-mount displays. The HDMI Ultra cables conform to HDMI High Speed cable specifications and are available in lengths from 6 feet to 15 feet (1.8 m to 4.5 m).
