Extron XTP T USW 103 4K (60-1717-12)

3:1×2 4K Multi-Format HDMI, DP and VGA Switcher with HDMI Output and Integrated XTP Transmitter

1 × HDMI, 1 × DisplayPort, 1 × VGA inputs; 1 × HDMI, 1 × XTP with 26w power output

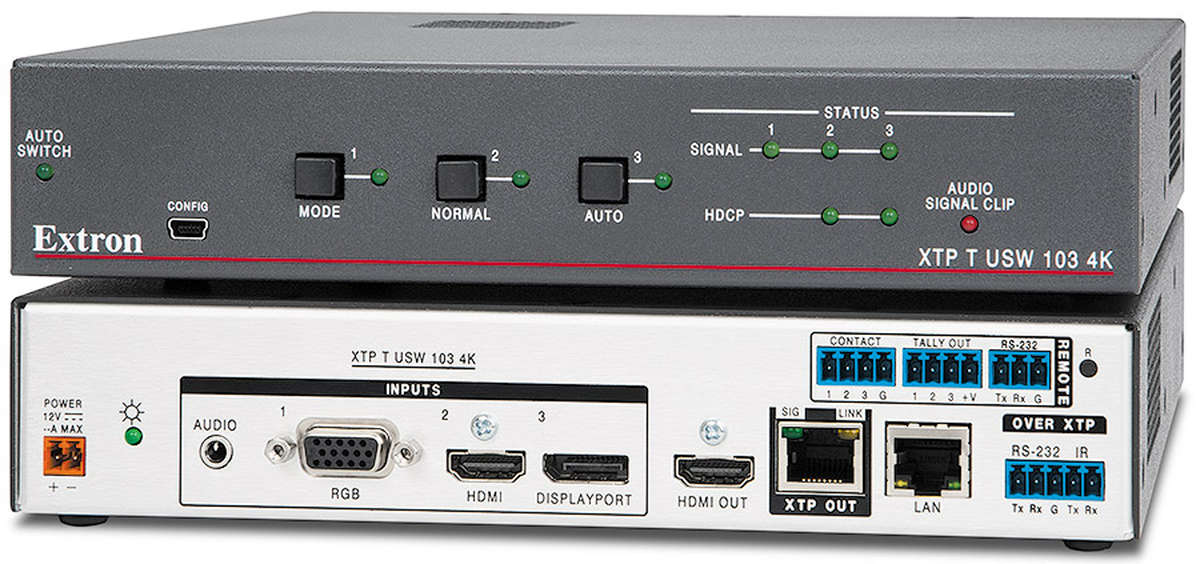

Extron XTP T USW 103 4K 60-1717-12 product image

For pricing and configuration options please call or email us.

The Extron XTP T USW 103 4K is a three-input transmitter for extending DisplayPort, HDMI or VGA, audio, bidirectional control, and Ethernet over a shielded CATx cable. This HDCP 2.3-compliant transmitter supports video signals at resolutions up to 4K and provides a local HDMI output. For operation in unmanaged locations, it features automatic switching between inputs with selectable prioritization. Incoming Analogue signals are digitized and separate Analogue stereo audio can be embedded onto the output signal. Ethernet extension and insertion of bidirectional RS‑232 and IR provide LAN access and remote AV device control. Signals can be sent up to 330 feet (100 meters) over shielded twisted pair cable. The XTP T USW 103 4K supports remote power and is ideal for XTP Systems® that require long-distance transmission from a remote location.

The XTP T USW 103 4K provides high-performance switching and signal extension for three remote sources, switching easily between HDMI, DisplayPort, and VGA sources to send video, audio, bidirectional control, and Ethernet over long distances. VGA video signals are digitized to ensure a high quality, reliable digital video signal for enterprise-wide distribution. To streamline operations, the transmitter features auto-switching between inputs, RS‑232 remote control, and contact closure for easy operation in unmanaged locations within a lectern or beneath a table. Switching priority is configurable when multiple inputs are active. A simultaneous HDMI output is provided to support local monitoring.

The transmitter uses Extron all-digital technology to deliver pixel-perfect video signals at resolutions up to 4K. It supports HDMI 2.0 specifications that include data rates up to 10.2 Gbps, Deep Colour up to 12‑bit, 3D, and HD lossless audio formats. To ensure device compatibility and optimal signal transmission between devices, DDC channels are actively buffered, maintaining continuous EDID and HDCP communication with the source and display.

Built for Professional Integration

To enhance and simplify integration of digital and Analogue AV devices, XTP endpoints utilize two Extron technologies: EDID Minder® and Key Minder®. EDID Minder automatically manages EDID communication between input sources and display devices, to ensure that sources power up properly and reliably send content for display. For HDMI and DisplayPort signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching. If HDCP-encrypted content is sent to a non‑compliant display, a full-screen green signal is transmitted to the destination, providing immediate visual confirmation that protected content cannot be viewed on the selected display.

In addition to high performance video, the XTP T USW 103 4K transmitter extends audio signals over the one cable. For digital audio, they support multiple embedded digital audio formats with embedded audio available on the HDMI and DisplayPort connectors. In addition they include the capability to embed separate balanced/unbalanced Analogue stereo audio signals in place of digital embedded audio or with the digitized Analogue video signal for extended transmission. To allow precise control of the audio, the transmitter features audio input gain and attenuation adjustment and muting capabilities.

The XTP T USW 103 4K includes an RS‑232 and IR insertion port, allowing bidirectional control of an AV device over the one CATx cable. This feature simplifies integration with a control system for managing the source device. In addition, centralized 10/100 Ethernet communication can be implemented via the Ethernet extension port to reduce the number of independent network drops required within a system.

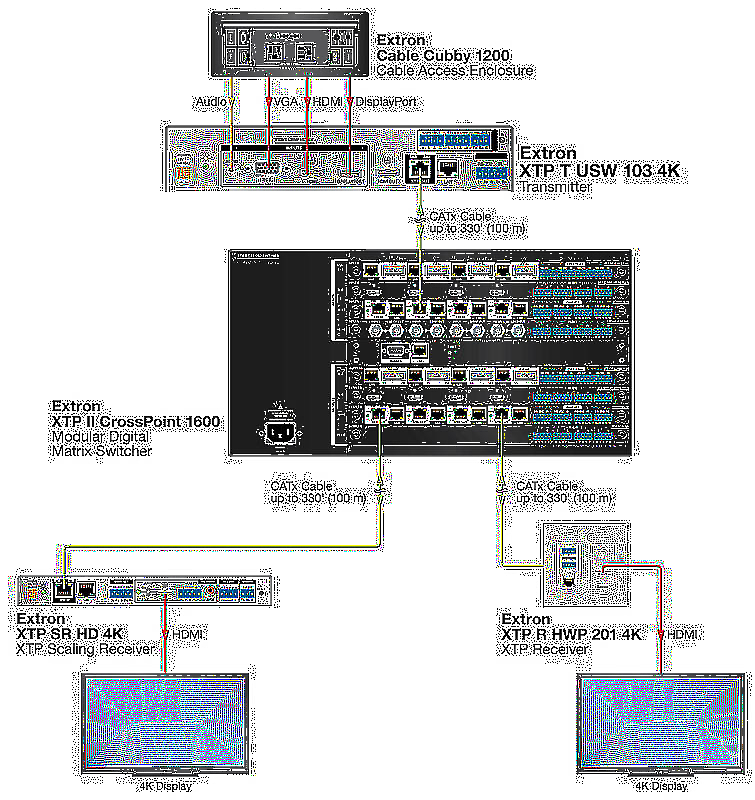

The XTP T USW 103 4K can be used with an XTP receiver or scaling receiver for simple point-to-point installations or in combination with an XTP CrossPoint® matrix switcher for AV signal switching and distribution applications. Integrated with an XTP CP 4i 4K I/O board mounted in the matrix switcher, the XTP T USW 103 4K provides streamlined switching and transmission of 4K video. This design takes advantage of system level controls and the ability to extend inserted RS‑232 and IR between the equipment room and a remote endpoint.

Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron XTP Systems. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Extron XTP Systems

Extron XTP Systems provide a completely integrated switching and distribution solution for multiple digital and Analogue formats. They support local connectivity as well as extended transmission capability for sending high resolution video, audio, RS‑232, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable and up to 10 km (6.21 miles) over fiber optic cable. Each system is HDCP compliant and delivers ultra-fast, highly reliable digital switching with Extron's SpeedSwitch® Technology.

At the heart of a system is an XTP CrossPoint® matrix switcher. The modular matrix switchers are expandable from 4x4 to 64x64, depending on frame size, and can be populated with a wide variety of XTP I/O matrix boards. Input and output boards provide direct HDMI, SDI, DVI, VGA, video, and audio connections to local sources and displays, and signal extension to remote endpoints when using XTP transmitters and receivers. The matrix switcher can also provide power to a remote XTP device over CATx cabling, depending on transmitter model.

The online XTP System Builder gives convenient access for complete system design. The tool also features a printable bill of materials, pricing, and quote submittal. Once the order is confirmed and received, the included XTP System Configuration Software enables easy setup and configuration right out of the box.

To configure, operate, and monitor the system in real time, user-friendly control software offers a complete view of all XTP devices from a computer. With hot‑swappable modular components, a wide selection of XTP transmitters and receivers, and advanced 24/7 system monitoring, XTP Systems are designed to provide continuous, trouble-free operation in the most critical applications.

Extron XTP T USW 103 4K Key Features

Transmits DisplayPort, HDMI, or VGA video, audio, bidirectional RS‑232 and IR, along with Ethernet up to 330 feet (100 meters) over a shielded CATx cable - The XTP T USW 103 4K provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
Supports computer and video resolutions up to 4K - Supports 4K/60 4:2:0 and 4K/30 4:4:4, maintaining superior image quality at the highest resolutions.
HDMI output enables local display of the selected input - The XTP T USW 103 4K switcher features a simultaneous HDMI output for convenient local monitoring.
HDCP 2.3 compliant - Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
26W remote power capability - Part #60‑1717‑12 - For simplified installation, the transmitter can be remotely powered by the Extron PI 140, high power injector over the twisted pair connection.
Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
Compatible with CATx shielded twisted pair cable - The XTP T USW 103 4K fully supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid centre conductor sizes of 24 AWG or better is recommended for optimal performance.
One DisplayPort, one HDMI, and one VGA input - Allows for switching between DisplayPort, HDMI, and Analogue video sources.
Auto-switching between inputs - Auto-switching allows for simple, unmanaged installation in locations such as within a lectern or under a conference table. When multiple inputs are active, the switching priority is configurable.
Digital conversion of Analogue input signals - Analogue signals are digitized, ensuring that a reliable, high quality digital video signal is sent to the output destination.
Bidirectional RS‑232 and IR insertion for AV device control - Bidirectional RS‑232 control and IR signals can be inserted into the XTP output, allowing a remote device to be controlled without the need for additional cabling.
Supports DisplayPort SST - Single Stream Transport data rates up to 10.8 Gbps
Supported HDMI 2.0 specification features include data rates up to 10.2 Gbps, Deep Colour up to 12‑bit, 3D, and HD lossless audio formats
User-selectable HDCP authorization - Allows individual inputs to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.
Comprehensive EDID management - Use XTP System Configuration Software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.0 software is available for advanced EDID editing and creating custom EDID files.
EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that all sources power up properly and reliably output content for display.
Key Minder® continuously verifies HDCP compliance for quick, reliable switching - Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.
HDCP Visual Confirmation - When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
Ethernet extension - Centralized 10/100 Ethernet communication can be implemented via an Ethernet pass-through port to reduce the amount of independent network drops required within a system.
Internal Colour bars test pattern for setup and calibration
Output muting control - Provides the capability to mute output at any time. This allows content to be viewed on a local monitor prior to appearing on the main presentation display.
Supports multiple embedded audio formats - The XTP T USW 103 4K is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
Selectable Analogue stereo audio input embedding - By embedding stereo audio into the signal stream, the transmitter supports balanced/unbalanced audio for extended transmission. This feature enables direct connection of separate stereo audio signals from a laptop, Blu‑ray Disc player, or other device.
Audio input gain and attenuation - Allows the level of gain or attenuation to be set, eliminating noticeable volume differences when switching between sources.
RS-232 control - Enables the use of serial commands for complete control and configuration via the Extron Windows®-based control program, or integrated into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
Contact closure remote control with tally output - Can be used for external control of input switching.
LED indicators for signal presence, HDCP, and power - Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
RJ‑45 signal and link status LED indicator for XTP port - Provides a means for validating signal flow and operation from transmitter to receiver, allowing quick identification of connectivity issues.
Compatible with all XTP products - XTP Systems provide a flexible signal switching and distribution solution that is completely integrated, ensuring reliable routing of multiple digital and Analogue formats.
Front panel USB configuration port
Easy setup and commissioning with Extron XTP System Configuration Software
JITC Certified - Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
1U, half rack width metal enclosure
Includes LockIt® HDMI cable lacing brackets
External Extron Everlast™ power supply included, replacement part #70-1174-01 - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty
