Extron 12G HD-SDI 101 (60-1673-01)

Cable Equalizer for 12G-SDI

12G-SDI Cable Equalizer

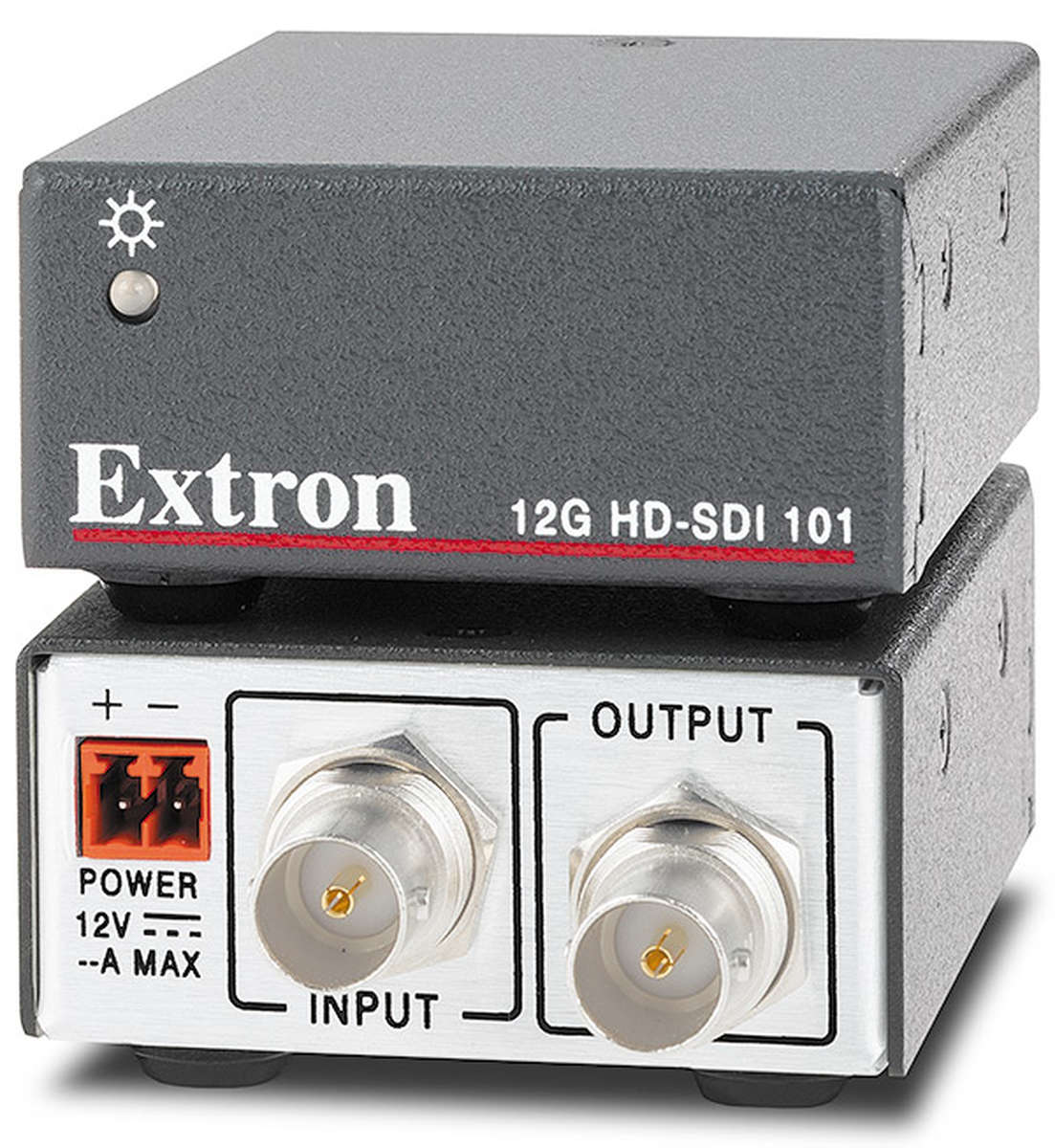

Extron 12G HD-SDI 101 60-1673-01 product image

For pricing and configuration options please call or email us.

The 12G HD-SDI 101 is a cable equalizer for multi-rate SDI digital video signals. It offers a convenient solution for sending multi-rate SDI digital video signals over long coaxial cable runs. The 12G HD-SDI 101 supports all common serial digital video data rates up to 11.88 Gbps, while passing HDR, up to 16 channels of embedded audio, and other ancillary data allowed by the SMPTE and ITU specifications. Used at the destination end of a cable run, automatic input equalization adds up to 984 feet (300 m) for SDI, 787 feet (240 m) for HD-SDI, 590 feet (180 m) for 3G-SDI, 295 feet (90 m) for 6G-SDI, and 230 feet (70 m) for 12G-SDI digital video, when using RG6 cable. The 12G HD-SDI 101 is housed in a one-eighth rack width, metal enclosure, providing integration-friendly mounting options into new and existing AV systems.

Extron 12G HD-SDI 101 Key Features

Automatically adapts to SMPTE and ITU digital video standards for SDI signals up to a 12G-SDI data rate
Supports data rates from 270 Mbps to 11.88 Gbps
Support for HDR – High Dynamic Range video
Automatic input equalization
Automatic output reclocking
Passes HDR, up to 16 channels of embedded audio, and other ancillary data including closed caption and time code
