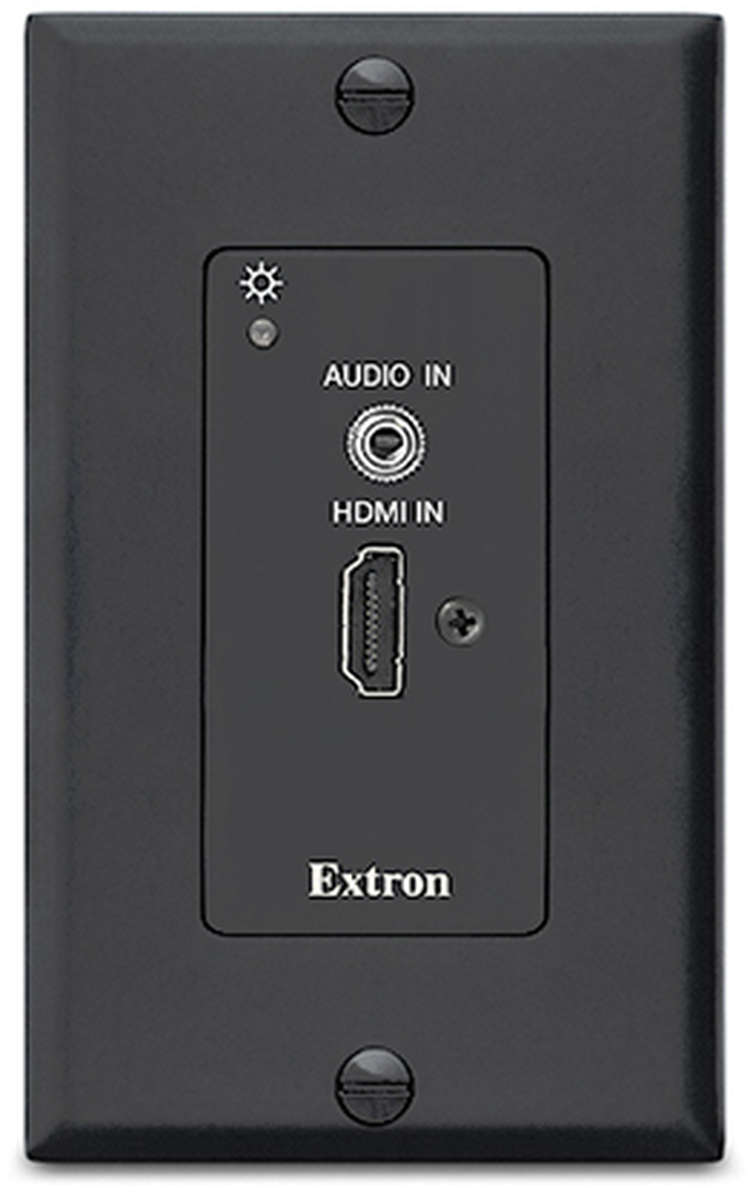

Extron DTP T HWP 4K 231 D (60-1421-12)
1:1 DTP/HDBaseT Transmitter for HDMI - Decorator-Style Wallplate finished in white
1 × HDMI, 1 × Stereo Analogue Audio input; Max 70m @ 1080p
The Extron DTP T HWP 231 D is a single-gang Decora®-style transmitter for sending HDMI, audio, and bidirectional RS-232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP-enabled products. The one-gang form factor provides maximum space efficiency in wall mount, floor box, and furniture mount applications. The DTP T HWP 231 D accepts Analogue stereo audio signals for simultaneous transmission over the same shielded twisted pair cable. It supports computer video up to 2560x1600, 1080p/60 Deep Colour, and 4K resolutions. The transmitter also features remote power capability, as well as bidirectional RS-232 and IR pass-through for remote AV device control. The single-gang wall-mountable design of the DTP T HWP 231 D provides the convenience of placing input connections precisely where they are needed.
The HDCP-compliant DTP T HWP 231 D enables the reliable transmission of HDMI signals, supporting Deep Colour up to 12-bit, CEC pass-through, and embedded HD lossless audio formats. In addition, DDC communication of EDID and HDCP is continuously maintained between a source and display, ensuring direct compatibility and optimal signal transmission between devices. The DTP T HWP 231 D also provides a connection for sending stereo Analogue audio to a DTP-enabled matrix switcher, switcher, or signal processor. The Analogue stereo audio signal is sent over the same shielded twisted pair cable as the HDMI and control signals, eliminating the need for a separate cable run to support Analogue audio at the DTP-enabled product.
The twisted pair transmitter provides other convenient, integrator-friendly features designed to help simplify installation. The DTP T HWP 231 D supports simultaneous transmission of bidirectional RS-232 and IR signals from a control system for AV device control. Also, the transmitter can be remotely powered over the shielded twisted pair cable by a DTP-enabled product, allowing both devices to share one power supply.
The DTP T HWP 231 D can be integrated with an Extron DTP CrossPoint® 84 Presentation Matrix Switcher, or other DTP-enabled products to support sources at remote locations. The transmitter mounts in an included single-gang Decora-style wallplate that fits a standard US one-gang size junction box. The wall-mountable form factor of the DTP T HWP 231 D allows for discreet placement in walls, lecterns, and floor boxes.
The DTP output can be configured for compatibility with HDBaseT-enabled displays to send digital video and embedded audio, plus bidirectional RS-232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable.
Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Extron DTP T HWP 4K 231 D Key Features
- Transmits HDMI plus control and Analogue audio up to 230 feet (70 meters) over a shielded CATx cable - The DTP T HWP 231 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Inputs: One HDMI, one 3.5 mm stereo mini jack for audio
- Output: One DTP 230 twisted pair output on RJ-45
- Supports computer video up to 2560x1600, HDTV 1080p/60 Deep Color, and 4K resolutions
- Compatible with CATx shielded twisted pair cable - Shielded twisted pair cabling with solid centre conductor sizes of 24 AWG or better is recommended for optimal performance.
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
- DTP output is compatible with HDBaseT-enabled devices - The DTP output can be configured to send video and embedded audio, plus bidirectional RS-232 and IR signals to an HDBaseT-enabled display.
- Accepts additional Analogue stereo audio signals - The DTP T HWP 231 D accepts stereo Analogue audio signals for simultaneous transmission over the same shielded twisted pair cable. Analogue audio is not embedded onto the digital video signal.
- Supports multiple embedded audio formats - The DTP T HWP 231 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- Bidirectional RS-232 and IR pass-through for AV device control - Bidirectional RS-232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- Remote power capability - For simplified installation, the transmitter can be remotely powered by a DTP-enabled product over the twisted pair connection.
- HDCP compliant
- Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Colour up to 12-bit, 3D, HD lossless audio formats, and CEC pass-through
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- LED indicator for signal presence and power - Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
- RJ-45 signal and link LED indicators for DTP port - Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- Compatible with all DTP 230 Series receivers and DTP-enabled products - Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements.
- Mounts in an included single-gang Decora®-style wallplate - The single-gang Decora-style wallplate is available in black or white to blend with a wide range of environments.
- Includes LockIt® HDMI cable lacing brackets
- Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 - Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
