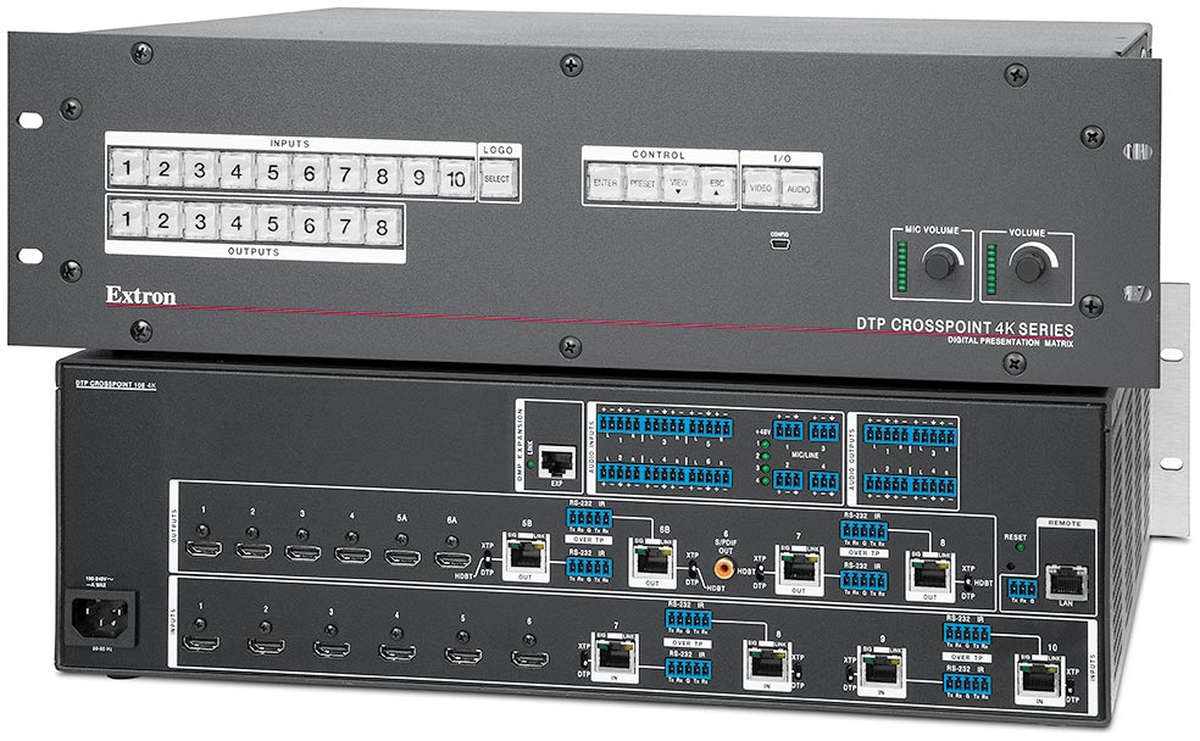

Extron DTP CrossPoint 108 4K (60-1381-01)

10×8 Seamless 4K Scaling Presentation Matrix Switcher

6 × HDMI, 4 × DTP/XTP inputs; 4 × HDMI, 4 × DTP/XTP/HDBaseT and Preamp outputs

For pricing and configuration options please call or email us.

Extron DTP CrossPoint 108 4K Key Features

• All‑in‑one 10x8 4K matrix switcher, scaler, audio DSP with AEC, audio power amplifier, and control processor - The DTP CrossPoint 108 4K delivers all of the core functionality of a large AV system. Advanced technological capabilities from Extron allow complete system design and integration from a single 3U device.
• Inputs: Six HDMI, four DTP® twisted pair inputs on RJ‑45, six stereo balanced/unbalanced audio inputs on captive screw, four mic/line audio inputs on captive screw
• Outputs: Four HDMI; four DTP twisted pair outputs on RJ‑45; one S/PDIF digital audio output on coaxial RCA; four variable audio outputs on captive screw; speaker outputs on 5 mm, 4‑pole captive screw connector - DTP CrossPoint® 108 4K IPCP SA or on 5 mm, 2‑pole captive screw connector - DTP CrossPoint 108 4K IPCP MA 70
• Four DTP inputs and six HDMI inputs
• Four HDMI outputs and four independently scaled DTP outputs
• Two DTP outputs feature mirrored HDMI connections to support local monitoring
• Integrated DTP inputs and outputs support transmission of video, control, and audio up to 330 feet (100 meters) over a shielded CATx cable - Four DTP inputs and four DTP outputs support digital signal transmission of HDMI, DisplayPort, DVI, or VGA plus control and Analogue audio up to 330 feet (100 meters) over a shielded CATx cable, providing high reliability and maximum performance on an easily installed cable infrastructure.
• Advanced Extron Vector™ 4K scaling engine - The Vector 4K scaling engine is specifically designed for critical-quality 4K imagery, with best‑in‑class image upscaling and downscaling. Image scaling and video format conversion are performed at full 4:4:4 chroma sampling to provide enhanced Colour accuracy and picture detail.
• Selectable scaled DTP output rates from 640x480 to 4K - The output rate can be individually selected for each of the four scaled DTP outputs. Available output rates include computer and video up to 4K, including 1080p/60 Deep Color.
• Compatible with DTP 230 Series and DTP 330 Series, plus XTP® CrossPoint matrix switchers - Enables mixing and matching with desktop and wallplate transmitters and receivers, as well as other DTP‑enabled products. The DTP CrossPoint 108 4K can also be integrated with an XTP CrossPoint matrix switcher to provide connectivity between presentation spaces and a larger, facility-wide system.
• DTP outputs are compatible with HDBaseT-enabled displays - The DTP outputs can be configured to send video and embedded audio, plus bidirectional RS‑232 and IR signals to HDBaseT-enabled displays.
• Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CATx shielded twisted pair cable - The DTP CrossPoint 108 4K fully supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid centre conductor sizes of 24 AWG or better is recommended for optimal performance.
• Remote powering of select DTP transmitters and receivers - The DTP CrossPoint 108 4K can provide power to select DTP transmitters and DTP receivers over the twisted pair connections, eliminating the need for separate power supplies at the remote units.
• RS‑232 insertion from the Ethernet control ports - System level device control to all remote locations via the matrix switcher's Ethernet ports, providing comprehensive control of endpoints and attached devices without needing additional equipment.
• Bidirectional RS‑232 and IR insertion for AV device control - Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal over DTP connections, allowing the remote device to be controlled without the need for additional cabling. Bidirectional control insertion eliminates the need for control system wiring to remote devices.
• Available with integrated IPCP Pro 355M control processor - DTP CrossPoint 108 4K IPCP models include a built in IPCP Pro 355M control processor for complete AV system control.
• Supports TouchLink® Pro touchpanels, eBUS® button panels, and Network Button Panels
• Integrated three-port AV LAN switch allows AV devices to be isolated from the corporate network - Enables local control of AV devices connected to the AV LAN switch while isolating the AV LAN network traffic from outside interference or intrusion.
• AV LAN only permits communications from the Ethernet port for remote management and firmware updates to Extron devices - Allows Extron devices on the AV LAN to receive firmware updates and be remotely monitored, managed, and controlled through Extron GlobalViewer Enterprise.
• Supports secure industry standard communications protocols - Uses industry standard communication protocols, including HTTP (insecure), HTTPS, SSH, SFTP, SMTP, NTP, Discovery Service, DHCP, DNS, ICMP, and IPv4.
• Supports LinkLicense® - Extron LinkLicense unlocks features that add convenience, expand system functionality, and enhance the capabilities of Extron products.
• Two bidirectional RS‑232 ports with software handshaking - Captive screw serial ports that can control two RS‑232 devices.
• One bidirectional RS‑232/RS‑422/RS‑485 port with hardware and software handshaking - Captive screw serial port that can communicate with one RS‑232/RS‑422/RS‑485 serially controlled device.
• Two IR/Serial ports for one-way control of external devices
• Four Digital I/O ports - Allows for interfacing with other systems in the room.
• Four relays for controlling room functions - Enables control of lighting, screen settings, and other device functions.
• eBUS port for connecting eBUS button panels and accessories
• Ethernet monitoring and control on each Ethernet port - Manage, monitor, and control AV devices using a standard Ethernet network.
• DHCP server for AV LAN - Automatically distributes IP addresses and network configuration parameters for AV devices connected to the local AV LAN, which streamlines system setup and management.
• Supports popular BMS – Building Management System protocols, such as BACnet, KNX, and DALI - These protocols allow for centralized monitoring and control of mechanical and electrical systems that include HVAC, lighting, power, fire, and security.
• Supports 10/100/1000Base‑T
• Supports Ethernet-controllable devices - Allows for control of multiple Ethernet-enabled AV devices such as displays, switchers, and sources.
• Automatic clock synchronization allows touchpanel to display the accurate time and date
• Supports control system synchronization - Synchronization will allow users to retain and recover the state of their configured endpoints in case of network or power failure.
• Front panel port status indicators
• Multi-level password protection - Allows security to be set based on user roles.
• Fully customizable using Extron control system software - GUI Designer can be combined with Global Configurator® Plus or Global Configurator Professional.
• Create controller groups - Allows multiple IP Link Pro control processors to be grouped together to function as one when configured with Global Configurator Professional.
• Library of enhanced Extron Certified device drivers - Device drivers allow Extron products to control various display and source devices, such as projectors, flat-panel displays, and Blu‑ray players. Extron has produced fully tested Ethernet, serial, and IR device drivers.
• Stereo audio embedding and de-embedding - Analogue audio signals can be embedded onto the DTP and HDMI outputs, and embedded two-channel PCM audio can be extracted to the Analogue outputs.
• Output volume control - The DTP CrossPoint 108 4K provides master volume control for the variable line level and amplified audio outputs, as well as a separate control for mic volume.
• Audio input gain and attenuation - Gain or attenuation can be adjusted for each two‑channel audio input to eliminate noticeable differences when switching between sources.
• Audio breakaway - Provides the capability to break two‑channel audio away from its corresponding video signal and route to the audio outputs, allowing the audio and video signals from one source to be switched to different destinations.
• S/PDIF audio output - The DTP CrossPoint 108 4K includes an S/PDIF output for two‑channel PCM audio or encoded bitstream audio for Dolby® or DTS® multi-channel surround sound.
• Four mic/line inputs with 48 volt phantom power - Four mic or line level audio sources can be independently mixed with program audio. Selectable 48 volt phantom power allows the use of condenser microphones.
• Integrated audio digital signal processor with ProDSP™ 32/64‑bit floating point signal processing - The DTP CrossPoint 108 4K features 32/64‑bit floating point audio DSP processing, which maintains very wide dynamic range and audio signal transparency, to simplify management of gain staging while reducing the possibility of DSP signal clipping.
• Four channels of AEC - acoustic echo cancellation - The DTP CrossPoint 108 4K includes four independent channels of high performance AEC, as well as selectable noise cancellation. Extron AEC features advanced algorithms that deliver fast echo canceler convergence for optimal intelligibility in situations that challenge AEC performance, including double talk and the use of wireless microphones at the near end.
• Automixer with eight groups - The DTP CrossPoint 108 4K features an automixer with gated and gain sharing modes for managing up to eight groups of microphone signals. Gating threshold, signal level reduction, and timing parameters are user adjustable per channel, allowing for fine tuning to avoid the "chopped" sound characteristic of a traditional automixer when a mic is gated off.
• Digital audio expansion port provides interfacing to an Extron DMP 128 Plus processor for audio system scalability - An expansion port allows the DTP CrossPoint 108 4K and any DMP 128 Plus model to be linked together via a single shielded CAT 6 cable for a 16x16 I/O channel transport between devices. This allows for audio system scalability with expanded audio processing and signal routing capabilities.
• Mic ducking - Automatically reduces program audio when a microphone or other incoming audio signal is detected, replacing the need for a separate audio ducking processor.
• Studio grade 24‑bit/48 kHz analog‑to‑digital and digital‑to‑Analogue converters - Professional converters fully preserve the integrity of the original audio signal.
• Low latency DSP processing - The DTP CrossPoint 108 4K features very low, deterministic latency from input to output, regardless of the number of active channels or processes. While latency increases marginally in channels with AEC enabled, overall latency remains extremely low. This keeps audio in sync with video, and prevents distractions to presenters or performers resulting from delayed live audio.
• DSP Configurator™ Software - A powerful yet user-friendly PC based software tool for managing all audio operations of the DTP CrossPoint 108 4K. It enables complete setup and configuration of digital audio processing tools on the ProDSP platform, as well as routing and mixing.
• Group masters - The DTP CrossPoint 108 4K provides the capability to consolidate gain or mute control throughout the system. Gain or mute controls can be selected and added to a group master, which can then be controlled by a single master fader or mute control. Up to 32 group masters can be created.
• Soft limits provide optimal group master adjustment range - The group master volume range can be limited using soft limits to maintain optimal minimum and maximum levels when using external volume control. This prevents operators from over or under-adjusting levels when using Ethernet, USB, or RS‑232 control. The DSP Configurator Software provides quick drag-and-drop adjustment of soft limits from the Group Controls screen.
• 32 DSP Configurator presets - Using the DSP Configurator Software, any or all parameters for DSP processing, levels, AV matrix switching ties, and audio matrix mixing can be saved as presets.
• Flexible matrix design provides output, virtual, and expansion routing options - The DSP architecture of the DTP CrossPoint 108 4K employs an intuitive matrix design that offers substantial flexibility in routing, mixing, and processing audio input sources. An output matrix allows any of the four microphone inputs to be matrix mixed to any or all of the eight stereo outputs of the AV switcher block. If desired, any of the microphone inputs or AV switcher outputs can first be directed into a virtual matrix, which routes the inputs to eight virtual buses, before being mixed back into the output matrix. Virtual buses allow inputs to be processed together as a group. The expansion inputs and outputs provide signal routing between the DTP CrossPoint 108 4K and a DMP 128 Plus processor linked via the expansion port.
• Building Blocks processor settings - A collection of pre‑designed processor settings optimized for a specific type of input or output device, such as microphones and Extron speakers, with preset levels, filters, dynamics, and more. Flexible Building Blocks are available on each I/O strip and allow system designers to fully customize and save their own Building Blocks, further streamlining audio system design and integration.
• Supports Extron DSP Templates that are preconfigured as starting points to facilitate and simplify system configuration - Our DSP templates are designed for ease of use and education. Technicians and Junior Engineers alike can use them to get a system up and running with minimal effort, saving time and Labour costs and learning while they do so. Senior Engineers can relax knowing their technical staff are implementing systems in a methodical and consistent manner.
• Available with energy efficient Class D stereo or mono amplifier:
• 2 × 50 watts @ 4 ohms; 2 × 25 watts @ 8 ohms
• 1 × 100 watts @ 70 volts - DTP CrossPoint 108 4K power amplifiers feature an Extron-exclusive, highly efficient, advanced Class D amplifier design with CDRS - Class D Ripple Suppression, an Extron patented technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifier designs. CDRS eliminates the high frequency switching ripple characteristic of Class D amplifiers, a source of RF emissions which can interfere with sensitive AV equipment such as wireless microphones.
• Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Colour up to 12‑bit, 3D, and HD lossless audio formats
• HDCP compliant - Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
• User-selectable HDCP authorization - Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
• Logo image keying and display - A logo graphic may be placed at any position on any scaled video output as a foreground image. Logo graphics in BMP, JPG, PNG, or TIFF format may be uploaded to the unit. Full screen images up to 4096x2400 resolution can also be displayed to eliminate blank screens between presentations.
• Selectable seamless switching transitions - Seamless freeze/cut, freeze/fade, cut through black, and fade through black transition effects are available at the scaled video outputs.
• Key Minder® continuously verifies HDCP compliance for quick, reliable switching - Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.
• Comprehensive EDID management - Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.0 software is available for advanced EDID editing and creating custom EDID files.
• EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that all sources power up properly and reliably output content for display.
• SpeedSwitch® Technology provides exceptional switching speed for HDCP-encrypted content
• Supports custom EDID and output resolutions - User-defined output resolutions up to 300 MHz pixel clock can be supported by uploading custom EDID files or capturing EDID from a display or other destination device.
• HDCP authentication and signal presence confirmation - Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through RS‑232, USB, or Ethernet, providing valuable feedback to a system operator or helpdesk support staff.
• HDCP Visual Confirmation - When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• High performance, motion-adaptive deinterlacing for signals up to 1080i - The Extron exclusive scaling engine features highly accurate, motion adaptive deinterlacing for all interlaced signals up to 1080i. It ensures absolute detail and fidelity in the reconstructed progressive video frames, such as 1080p/24 content.
• HDMI to DVI Interface Format Correction - Automatically enables or disables embedded audio and InfoFrames, and sets the correct Colour space for proper connection to HDMI and DVI displays.
• QS‑FPC™ - QuickSwitch Front Panel Controller with tri‑Colour backlit buttons - Provides a discrete button for each input and output, allowing for simple, intuitive operation. Buttons can be custom labeled for easy identification. The buttons illuminate red, green, or amber depending on function, for ease of use in low light environments.
• View I/O mode - Users can easily view which inputs and outputs are actively connected.
• Global presets - Frequently used I/O configurations may be recalled either from the QuickSwitch Front Panel Controller, Ethernet, USB, or RS‑232 serial control.
• Output muting control - Provides the capability to mute one or all outputs at any time. This allows, for example, content to be viewed on a local monitor prior to appearing on the main presentation display.
• Aspect ratio control - For the scaled DTP outputs, the aspect ratio of the video can be controlled by selecting a FILL mode, which provides a full screen output, or a FOLLOW mode, which preserves the original aspect ratio of the input signal.
• Auto Input Memory - When activated for the scaled DTP outputs, the unit automatically stores size, position, and picture settings based on the incoming signal. When the same signal is detected again, these image settings are automatically recalled from memory.
• Output Standby Mode - The unit can be set to automatically mute video and sync output to the display device when no active input signal is detected. This allows the projector or flat-panel display to automatically enter into standby mode to save energy and enhance lamp or panel life.
• Picture controls for brightness, contrast, color, tint, detail, as well as horizontal and vertical positioning, and sizing - DTP outputs
• User presets - Memory presets are available for each input to store and recall optimized image settings.
• Internal video test patterns for calibration and setup - The unit offers several video test patterns for the scaled DTP outputs, to facilitate proper system setup and calibration of display devices.
• Automatic input cable equalization to 100 feet (30 meters) at 1080p/60 with 8‑bit Colour when used with Extron HDMI Pro cables - Actively conditions incoming HDMI signals to compensate for signal loss when using long cables, low quality cables, or source devices with poor HDMI signal output. 4K and 2560x1600 @ 60 Hz resolutions are equalized to 50 feet (15 meters).
• Automatic HDMI output reclocking - Reshapes and restores timing of digital video signals at each HDMI output, eliminating high frequency jitter to ensure reliable transmission over long cables.
• Provides +5 VDC, 250 mA power on each HDMI output for powering external peripheral devices - Power provided via an HDMI output eliminates the need of a separate power supply for the connected peripheral device.
• Front panel security lockout - Prevents unauthorized use in non‑secure environments. In lockout mode, a special button combination is required to operate the matrix switcher from the front panel controller.
• Ethernet monitoring and control - Enables control and proactive monitoring over a LAN, WAN, or the Internet.
• Built‑in Web pages - Enables the use of a standard browser for device monitoring and troubleshooting over an intuitive Web interface
• RS‑232 control port - Enables the use of serial commands for integration into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
• RJ‑45 signal and link LED indicators for DTP ports - Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
• JITC Certified - Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
• Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
• Rack-mountable 3U, full rack width metal enclosure
• Includes LockIt® HDMI cable lacing brackets
• Internal Extron Everlast™ power supply - Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost
• Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty
• Front panel USB configuration port - Enables easy configuration without having to access the rear panel.
