Extron DTP T HWP 232 D (60-1365-63)

2:1 Auto Switching DTP Transmitter for HDMI with Audio Embedding

2 × HDMI inputs; 1 × DTP output; Decorator-Style Wall plate, White, Max 70 m@2K

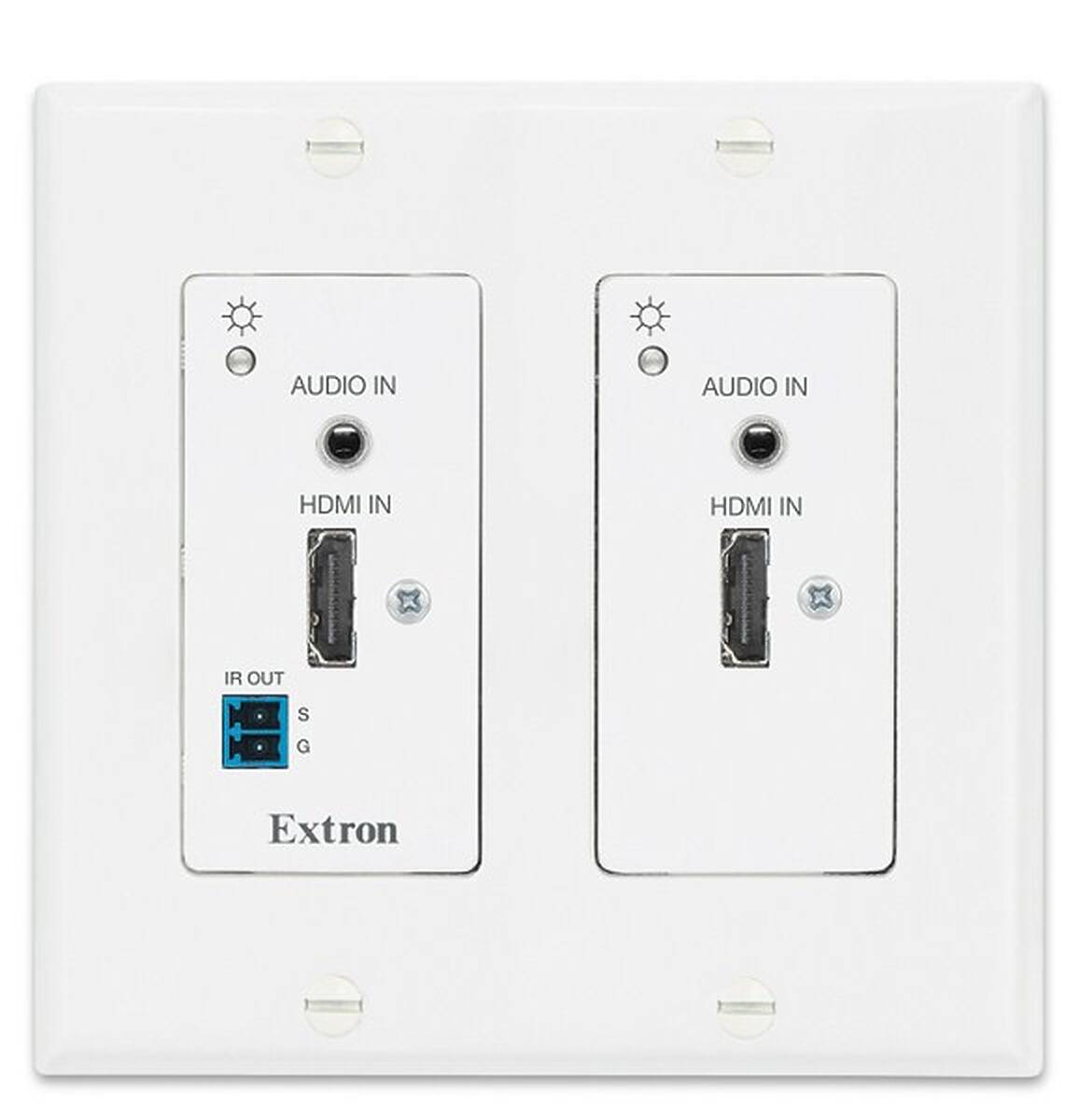

Extron DTP T HWP 232 D 60-1365-63 product image

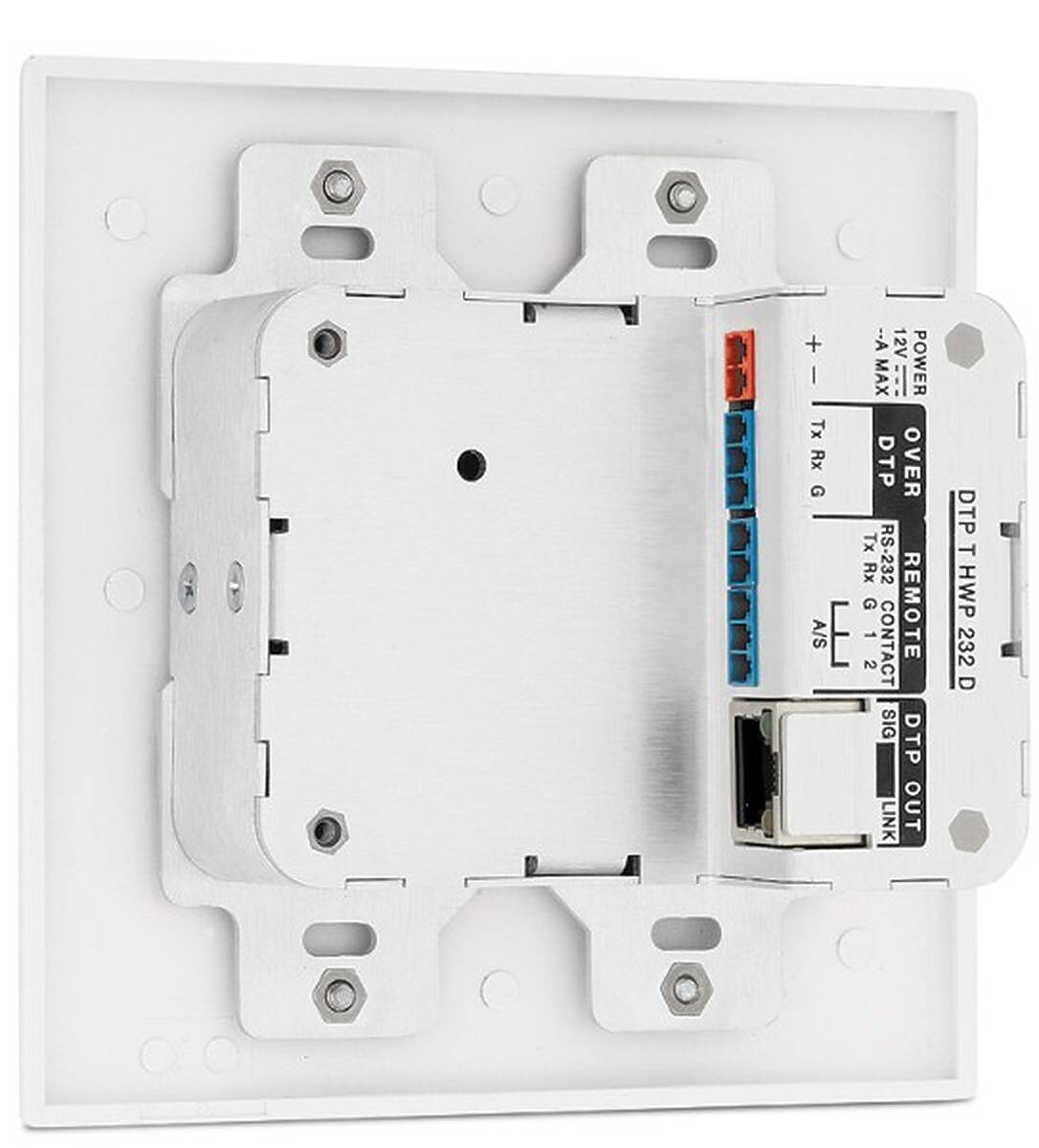

Extron DTP T HWP 232 D 60-1365-63 connectivity (terminals) product image

For pricing and configuration options please call or email us.

The Extron DTP T HWP 232 D is a two input decorator-style transmitter for sending HDMI, audio, and control up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP®‑enabled products. It is HDCP compliant and provides two HDMI inputs, both with independent Analogue stereo audio connections. The DTP T HWP 232 D supports video signals at resolutions up to 1920x1200, including 1080p/60 and 2K. The transmitter also offers many integrator‑friendly features such as Analogue stereo audio embedding, EDID Minder®, auto‑switching between inputs, remote power capability, and bidirectional RS‑232 and unidirectional IR pass‑through for remote AV device control. The wall‑mountable design of the DTP T HWP 232 D provides the convenience of placing input connections precisely where they are needed.

The DTP T HWP 232 D provides reliable switching and transmission of HDMI signals. The DTP T HWP 232 D can automatically switch between the digital sources, and it supports RS-232 remote control for easy operation in unmanaged locations. In addition, the transmitter features independent connections for embedding stereo Analogue audio onto the digital video output signal for transport over DTP. To suit the needs of the application, there is also the option to send Analogue audio alongside the video and control signals over the shielded CATx cable to a DTP‑enabled matrix switcher, switcher, or signal processor.

To enhance and simplify integration of sources and displays, and to help ensure optimal system performance, the DTP T HWP 232 D features EDID Minder. EDID Minder is an Extron‑exclusive technology that manages EDID communication between the display device and input sources to ensure that the correct video formats are displayed reliably.

The DTP T HWP 232 D supports simultaneous transmission of bidirectional RS‑232 and unidirectional IR signals from a control system for AV device control. For added installation flexibility, the DTP T HWP 232 D transmitter can be remotely powered over the shielded twisted pair cable by a DTP‑enabled product. This simplifies installation and allows both devices to share one power supply. The DTP T HWP 232 D can be integrated with an Extron DTP CrossPoint® Presentation Matrix Switcher, or other DTP‑enabled products to support sources at remote locations. The transmitter mounts in an included two‑gang decorator-style wall plate, allowing for discreet placement in walls, lecterns, and floor boxes.

Extron recommends Extron‑certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz and utilises a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Extron DTP T HWP 232 D Key Features

Transmits HDMI, control, and Analogue audio up to 230 feet (70 meters) over a shielded CATx cable - The DTP T HWP 232 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
Inputs: Two HDMI, two 3.5 mm stereo mini jacks for audio
Output: One DTP® 230 twisted pair output on RJ‑45
Auto‑switching between inputs - Auto‑switching allows for simple, unmanaged installation in locations such as in a lectern or floor box. When multiple inputs are active, the highest‑numbered input with an active video signal takes priority.
Supports computer and video resolutions up to 1920x1200, including 1080p/60 and 2K - The DTP T HWP 232 D supports digital signal transmission up to 230 feet (70 meters) over a shielded twisted pair cable and maintains superior image quality at the highest resolutions.
Analogue stereo audio embedding - Analogue stereo audio signals can be selectively embedded onto the digital video output signal and transported over DTP. The HDMI inputs can be set to pass the embedded digital audio, embed the Analogue audio, or to automatically embed the Analogue audio when no digital audio is detected.
Remote power capability - For simplified installation, the transmitter can be remotely powered by a DTP‑enabled product over the twisted pair connection.
Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
Compatible with CATx shielded twisted pair cable - The DTP T HWP 232 D fully supports a maximum transmission distance of 230 feet (70 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid centre conductor sizes of 24 AWG or better is recommended for optimal performance.
Independent Analogue audio inputs - The DTP T HWP 232 D provides two independent stereo Analogue audio connections for simultaneous transmission over the same shielded twisted pair cable.
Supported HDMI specification features include data rates up to 6.75 Gbps, 3D, and HD lossless audio formats
Supports multiple embedded audio formats - The DTP T HWP 232 D is compatible with a broad range of multi‑channel audio signals, providing reliable operation with HDMI sources.
Bidirectional RS‑232 and unidirectional IR pass‑through for AV device control - Bidirectional RS‑232 control and unidirectional IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
HDCP compliant - Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
User-selectable HDCP authorization - Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that all sources power up properly and reliably output content for display.
HDMI to DVI Interface Format Correction - Automatically enables or disables embedded audio and InfoFrames, and sets the correct Colour space for proper connection to HDMI and DVI displays.
Automatic Colour bit depth management - Automatically adjusts Colour bit depth based on the display EDID, preventing Colour compatibility conflicts between source and display.
Compatible with all DTP 230 Series receivers and DTP‑enabled products - Enables mixing and matching with desktop and wallplate receivers, as well as other DTP‑enabled products to meet application requirements.
RS‑232 control port - Enables the use of serial commands for integration into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
Contact closure control port - Can be used for external control of input switching.
Front panel USB configuration port
LED indicators for signal presence, HDCP, and power - Provides visual indication of system status for real‑time feedback and monitoring of key performance parameters.
RJ‑45 signal and link LED indicators for DTP port - Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
JITC Certified - Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
Mounts in an included two-gang decorator‑style wallplate - The two‑gang decorator‑style wallplate is available in black or white to blend with a wide range of environments.
External Extron Everlast™ power supply included, replacement part #70-1174-01 - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty
