Extron DTP DVI 4K 330 Tx (60-1360-12)

1:1 DVI-D Twisted Pair Transmitter

max. 100m @ 1920×1200 or 4K using Shielded Twisted Pair Cable

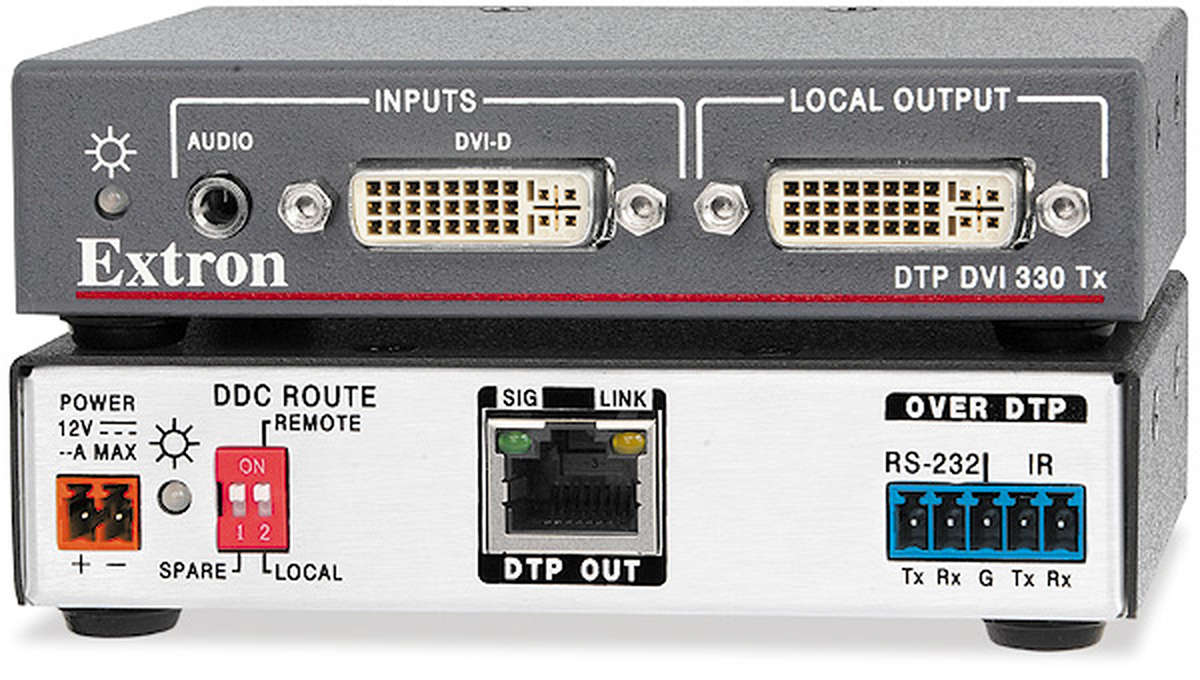

Extron DTP DVI 4K 330 Tx 60-1360-12 product image

For pricing and configuration options please call or email us.

The Extron DTP DVI 330 Tx is a transmitter for long distance transmission of DVI-D video, audio, and bidirectional RS-232 and IR signals over a shielded CATx cable to Extron DTP 330-enabled products. It provides an effective means for extending single link DVI-D or HDMI signals. In addition, the DTP DVI 330 Tx supports pass-through Analogue stereo audio signals for simultaneous transmission over the same shielded twisted pair cable. It is capable of sending 1920x1200, 1080p/60 Deep Color, UHD, and 4K signals up to 330 feet (100 meters). The transmitter is equipped with a buffered DVI loop-through output to support a local computer monitor. The compact enclosure size and remote power capability make the DTP DVI 330 Tx ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.

The DTP DVI 330 Tx enables the reliable, long distance transmission of DVI-D signals, and is fully compatible with HDMI signals when used with the appropriate DVI-HDMI adapters from Extron. The twisted pair transmitter can extend HDMI signals, supporting Deep Colour up to 12-bit, CEC pass-through, and embedded HD lossless audio formats. In addition, DDC communication of EDID and HDCP is continuously maintained between a source and display, ensuring direct compatibility and optimal signal transmission between devices. The DTP DVI 330 Tx also supports a direct pass-through connection for stereo Analogue audio to a DTP 330-enabled matrix switcher. The Analogue stereo audio signal is sent over the same shielded twisted pair cable as the DVI-D and control signals, eliminating the need for a separate cable run to support Analogue audio at the DTP 330-enabled product.

The twisted pair transmitter provides other convenient, integrator-friendly features designed to help simplify installation. The DTP DVI 330 Tx supports simultaneous transmission of bidirectional RS-232 and IR signals from a control system for AV device control. Also, the transmitter can be remotely powered over the shielded twisted pair cable by a DTP 330-enabled product, allowing both devices to share one power supply.

The DTP DVI 330 Tx can be integrated with an Extron DTP CrossPoint® 84 Presentation Matrix Switcher to support inputs at remote locations. The transmitter is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure. The low profile design of the DTP DVI 330 Tx allows for discreet placement in lecterns and beneath tables.

Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Extron DTP DVI 4K 330 Tx Key Features

Transmits single link DVI-D plus control and analog audio up to 330 feet (100 meters) over a shielded CATx cable - The DTP DVI 330 Tx provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
Inputs: One DVI-D, DVI-D loop-through, one 3.5 mm stereo mini jack for audio
Output: One DTP 330 twisted pair output on RJ-45
Supports computer-video to 1920x1200, HDTV 1080p/60 Deep Color, UHD, and 4K resolutions
Compatible with CATx shielded twisted pair cable - The DTP DVI 330 Tx fully supports a maximum transmission of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
Accepts additional analog stereo audio signals - The DTP DVI 330 Tx supports a direct pass-through connection for stereo analog audio signals for simultaneous transmission over the same shielded twisted pair cable. Analog audio is not embedded onto the digital video signal.
DVI input loop-through - The DTP DVI 330 Tx features a DVI-D output for connection to a local monitor.
Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC pass-through
HDCP compliant
Supports EDID and HDCP transmission - DDC channels are actively buffered allowing continuous communication between source and display.
DDC routing to local or remote display - Gives the option of which display receives the EDID and HDCP information.
Bidirectional RS-232 and IR pass-through for AV device control - Bidirectional RS-232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
Remote power capability - For simplified installation, the transmitter can be remotely powered by a DTP 330-enabled product over the twisted pair connection.
Compatible with all DTP 330 Series receivers and DTP 330-enabled products - Enables mixing and matching with desktop and wallplate receivers, as well as other DTP 330-enabled products to meet application requirements.
LED indicator for signal presence and power - Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
RJ-45 signal and link LED indicators for DTP port - Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
Supports HDMI signals when used with optional Extron DVI-HDMI adapters - Supports HDMI embedded audio and CEC - Consumer Electronics Control signal transmission.
1" (2.5 cm) high, quarter rack width metal enclosure - With a low profile enclosure, the device can be installed discreetly wherever needed.
Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 - Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
