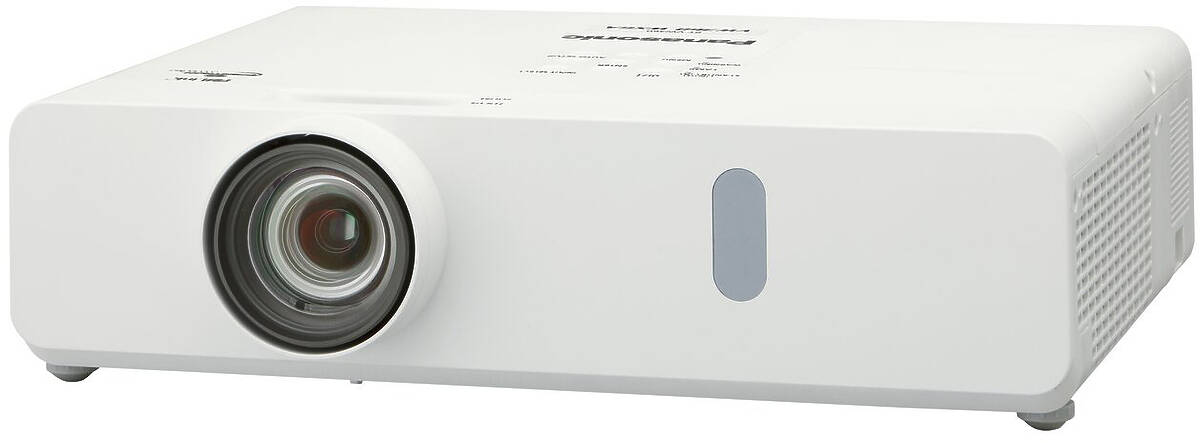

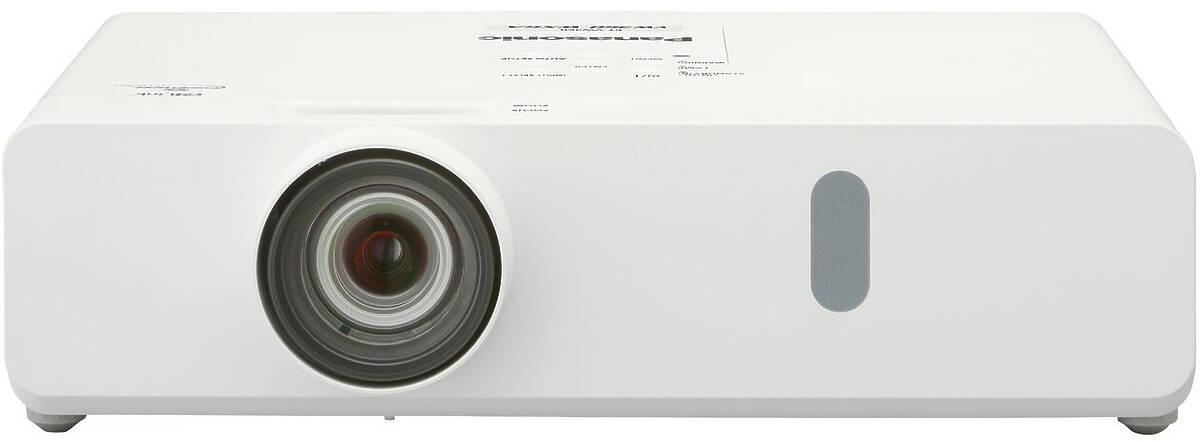

Panasonic PT-VX430EJ Projector

£692 (£830.40 inc. VAT)
Availability: Please Call

Panasonic PT-VX430EJ Key Features

• LCD Display Technology
• 4,500 Lumens
• XGA 1024*768 Native Resolution
• 5,000 hour lamp life (typical)
• 20,000:1 Contrast Ratio
• 3.3kg (7.3lb.)
• Wide zoom range for flexible placement
• PC Free Presentations
• Horizontal & Vertical Keystone Correction
• Monitor Out
• Network Control

Panasonic PT-VX430EJ Downloads

Brochure

• Conference rooms (20 - 50 people)
• Meeting Room Projectors
• PC Free Presentations

Panasonic PT-VX430EJ Throw Chart (Click for details)

Panasonic PT-VX430EJ Specifications

Categories	Office / Desktop PC Free Portable Short Throw Zoom
Manufacturer	Panasonic (Click for rest of range)
Panasonic PT-VX430EJ Optical Features
System	3×0.63" LCD
Resolution	XGA (1024*768)
Aspect Ratio	4:3
Lumens	4,500
Contrast	20,000:1
Lamp	240W UHP
Lamp Life	5,000hrs. (7,000hrs. ECO mode)
Lens	F1.60 -1.90, f=15.31-26.24mm
Interchangeable	No
Zoom Range	1.6x
Throw Ratio	1.18 - 1.9:1
Image Size	30"-300" diagonal
Throw Distance	0.69-11.56m
Throw distance for 100" image	2.40 - 3.86m
Lens Shift	No
KeystoneCorrection	±35° (Vertical)
	±35° (Horizontal)
Panasonic PT-VX430EJ Compatibility
Computer Resolutions	UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions	4K, UHD, HD, 720p, PAL, SECAM, NTSC
Panasonic PT-VX430EJ Terminals
HDMI	2
RGBHV (15-pin HD)	2
Composite	1
Monitor Out	Yes
Audio In	3
Audio Out	1
USB	2
RS-232	1
Network Ready	Yes
Panasonic PT-VX430EJ General
Speakers	10w Mono
Remote Control	Panasonic PT-VX430EJ only
Noise	37db (29db ECO mode)
Dimensions	352*98*279mm (W*H*D)
Weight	3.30kg
Power Supply	AC 100 - 240 V, 50 Hz/60 Hz
Power Consumption	320Watts
Manufacturers Warranty	3 years/10,000 hours (whichever first) Collect & Return
Light Source Warranty	6 months/500 hours (whichever first)
Additional Specs

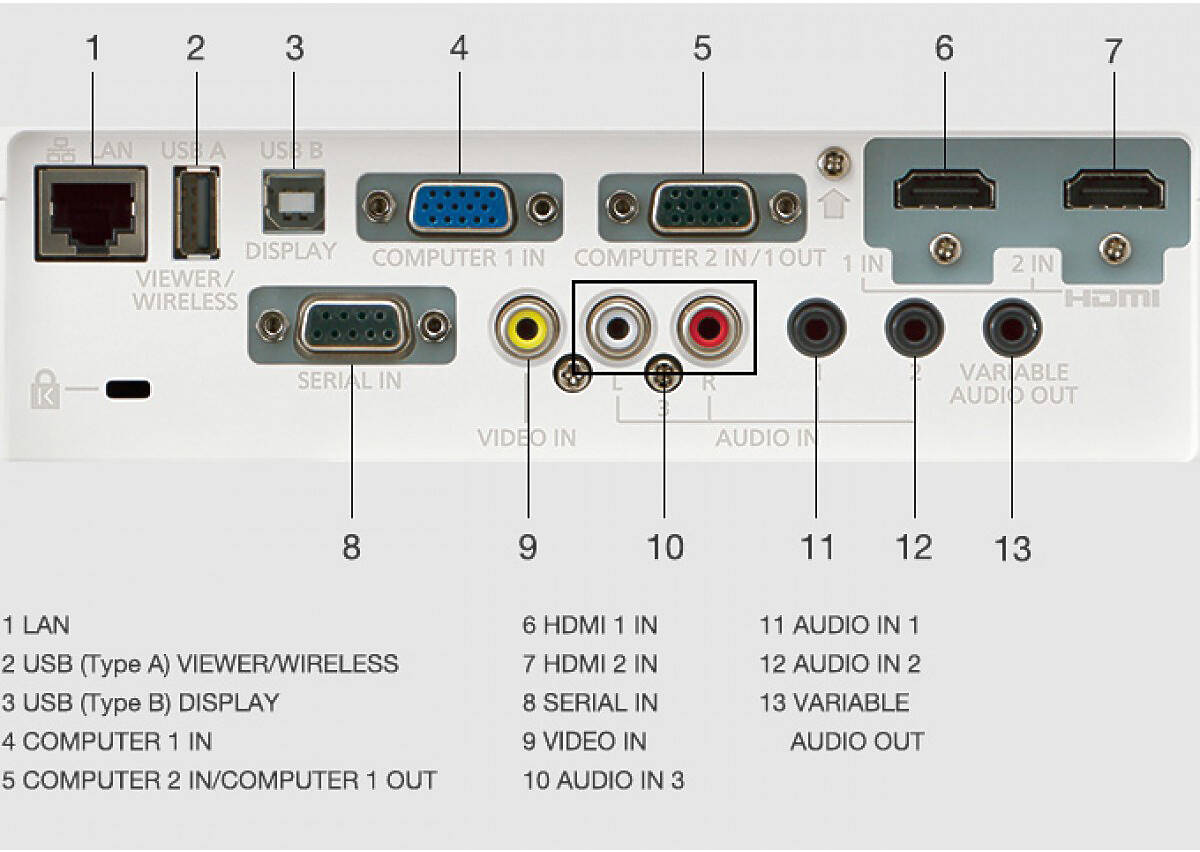

Connectivity Details	HDMI 19-pin × 2 (compatible with HDCP, Deep Color), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) D-sub HD 15-pin (female) × 1 (RGB/YPBPR/YCBCR) D-sub HD 15-pin (female) × 1 (RGB), (input/output selectable using on-screen menu) Pin jack × 1 (Composite VIDEO) M3 × 1 (L-R × 1) M3 × 1 (L-R × 1) for audio input or for microphone connection (variable) Pin jack × 2 (L, R × 1) M3 × 1 (L-R × 1) for output (variable) RJ-45 × 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink) D-sub 9-pin (female) × 1 for external control (RS-232C compliant) Memory Viewer / Wireless Module (DC 5 V, max 500 mA) For USB Display

Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.

Panasonic PT-VX430EJ Accessories

Description	Price	Inc. VAT
Seddon Flight Case 05 Hard case for projectors weighing 3-5kg	£133.00	£159.60
