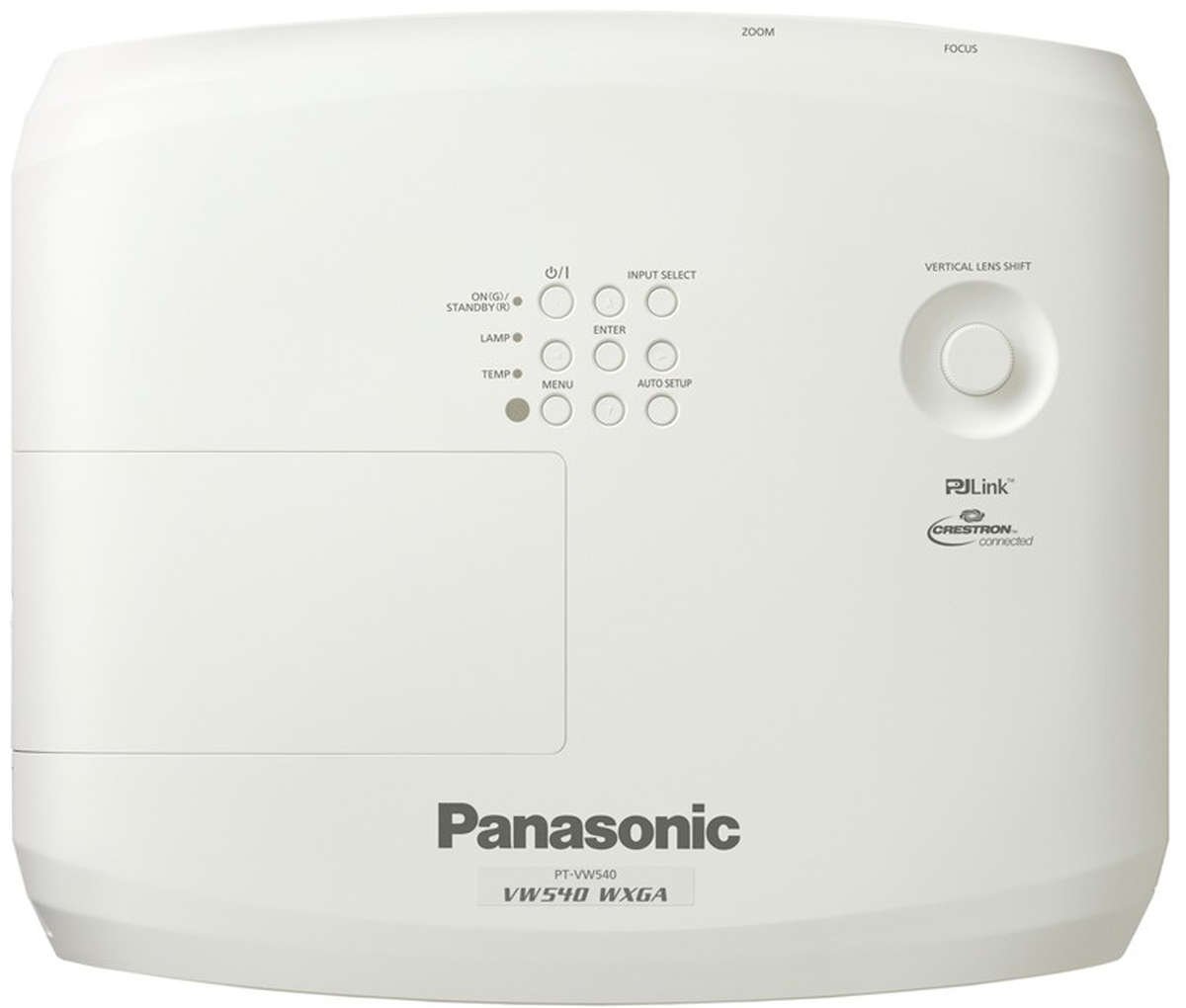

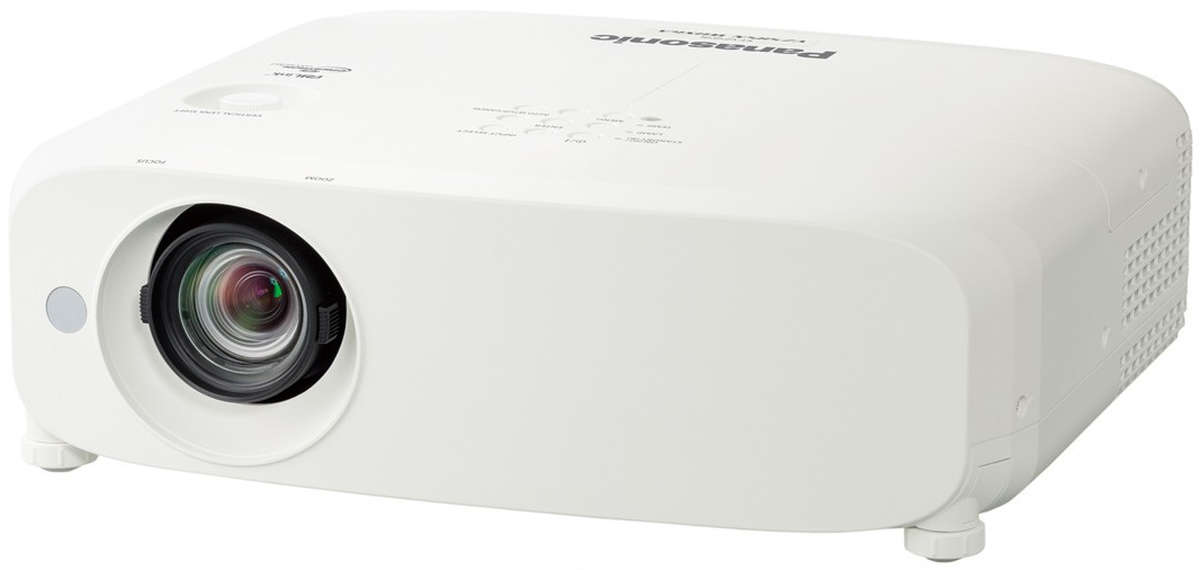

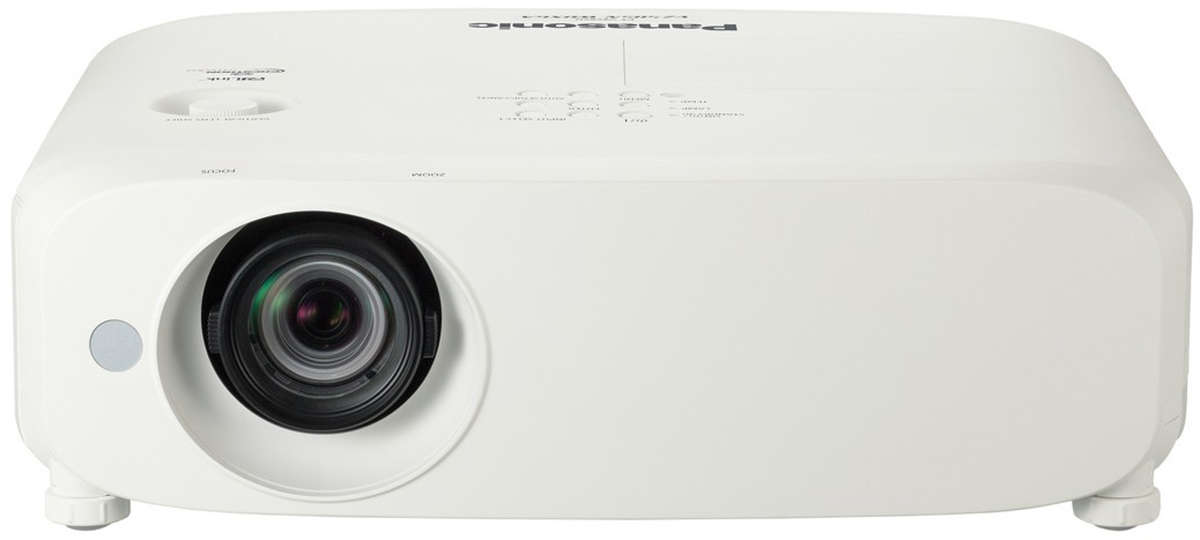

Panasonic PT-VW545NEJ Projector
Panasonic PT-VW545NEJ Key Features
- LCD Display Technology
- 5500 Lumens Colour Light Output
- Wide XGA Resolution
- 16,000:1 Contrast Ratio
- 4.9kg (10.8lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- PC Free Presentations
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Display Via USB to PC Connection
- Miracast
- Logo capture and display
- Monitor Out
- Network Control
Panasonic PT-VW545NEJ Specifications
| Categories | Lens Shift Office / Desktop PC Free Short Throw Zoom |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-VW545NEJ Optical Features |
|
| System | 3 * 0.64" LCD |
| Resolution | WXGA (1280*800) |
| Aspect Ratio | 16:10 |
| Lumens | 5,500 |
| Colour Light Output | 5500 Lumens |
| Contrast | 16,000:1 |
| Lamp | 280W UHM |
| Interchangeable | No |
| Zoom Range | 1.6x |
| Throw Ratio | 1.08 - 1.76:1 |
| Image Size | 30"-300" diagonal |
| Throw Distance | 0.68-11.43m |
| Throw distance for 100" image | 2.33 - 3.79m |
| Lens Shift | Vertical.+40% |
| Keystone |
±35° (Vertical) |
| ±35° (Horizontal) | |
Panasonic PT-VW545NEJ Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
Panasonic PT-VW545NEJ Terminals |
|
| HDMI | 1 |
| RGBHV (15-pin HD) | 2 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 3 |
| Audio Out | 1 |
| USB | 2 |
| RS-232 | 1 |
| Network Ready | Yes |
Panasonic PT-VW545NEJ General |
|
| Speakers | 10w Mono |
| Remote Control | Panasonic PT-VW545NEJ only |
| Noise | 35db (29db ECO mode) |
| Dimensions | 389*125*332mm (W*H*D) |
| Weight | 4.90kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 400Watts |
| Manufacturers Warranty | 3 year loan support (if loan unit available) |
| Light Source Warranty | 90 Days/1000 hours (whichever first) |
Panasonic PT-VW545NEJ Package Contents |
|
| Accessories | Wireless Remote Control + Batteries Power Cord Software CD-ROM RGB Cable Lens Cap |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
