Panasonic PT-RW430EA Projector
Panasonic PT-RW430EA Key Features
- DLP Display Technology
- 3,500 Lumens
- Wide XGA Resolution
- 20,000 hour lamp life (typical)
- 20,000:1 Contrast Ratio
- 11kg (24.3lb.)
- Scheduling Function
- Wide zoom range for flexible placement
- Native Widescreen
- HDCP Compliant DVI
- Lens Shift
- Portrait Mode
- 1080p/24FPS compatible
- Can Be Installed Vertically
- Lens-centred Design
- PIN Code Security
- Quick Power On
- Quick Power Off
- Warrantied for 24/7 use
- Edge Blending
- DICOM Simulation Mode
- 3D Projection Ready
- Monitor Out
- Network Control
Links
Panasonic PT-RW430EA review on Projector Central - "The Panasonic RW430U is a truly unique product, and as such it is difficult to judge its value relative to the competition. If you can benefit from the wide array of features provided by the RW430U, it is quite simply the only viable option...." Click to read more
Panasonic PT-RW430EA Downloads
Panasonic PT-RW430EA Specifications
| Categories | LED/Laser Lens Shift |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-RW430EA Optical Features |
|
| System | 1 * 0.65" DMD |
| Resolution | WXGA (1280*800) |
| Aspect Ratio | 16:10 |
| Lumens | 3,500 |
| Contrast | 20,000:1 |
| Lamp | LED/Laser-combined |
| Lamp Life | 20,000hrs. |
| Interchangeable | No |
| Zoom Range | 2x |
| Throw Ratio | 1.53 - 3.09:1 |
| Image Size | 40"-300" diagonal |
| Throw Distance | 1.30-20.60m |
| Throw distance for 100" image | 3.30 - 6.66m |
| Lens Shift | Vertical: +73/-48% Horizontal: +27/-35% |
| Keystone |
±40° (Vertical) |
Panasonic PT-RW430EA Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 24-120Hz |

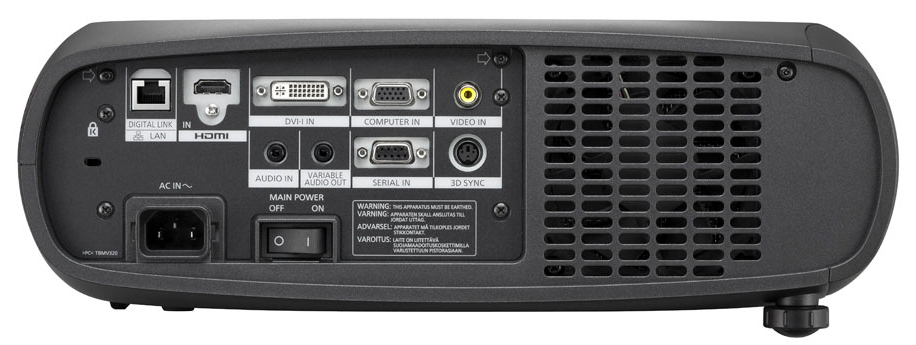

Panasonic PT-RW430EA Terminals |
|
| DVI | 1 (HDCP Compliant) |
| HDMI | 1 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 1 |
| Audio Out | 1 |
| RS-232 | 1 |
| Network Ready | Yes |
Panasonic PT-RW430EA General |
|
| Speakers | No |
| Remote Control | Panasonic PT-RW430EA only |
| Noise | 34db (29db ECO mode) |
| Dimensions | 455*137*415mm (W*H*D) |
| Weight | 11.00kg |
| Power Supply | 100-240 V AC, 5.2-2.0 A, 50/60 Hz |
| Power Consumption | 460Watts |
| Manufacturers Warranty | 3 collect/return with loan if available |
| Light Source Warranty | 3 years/10,000 hours (whichever first) |
Panasonic PT-RW430EA Package Contents |
|
| Accessories | Power cord (with secure lock) x 1*8 wireless remote control unit batteries for remote control (R6/LR6/AA type x 2) software CD-ROM (Logo Transfer Software Multi Projector Monitoring & Control Software) |
