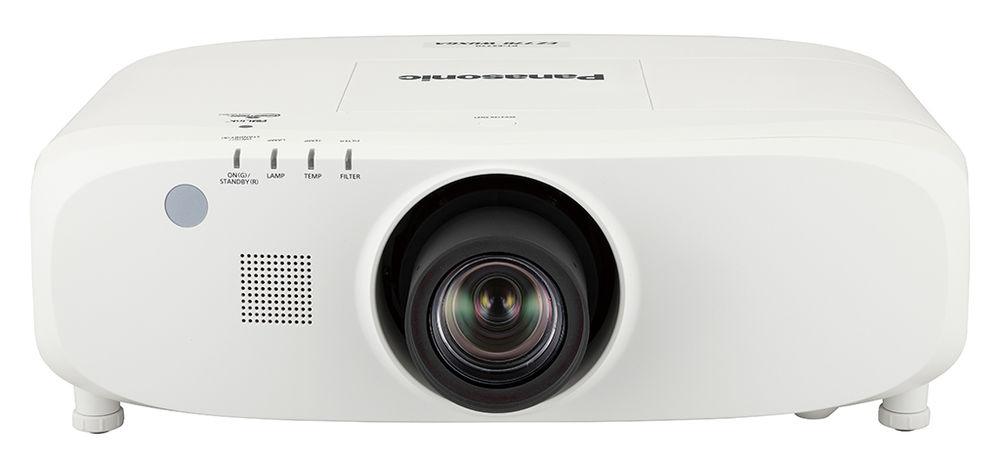

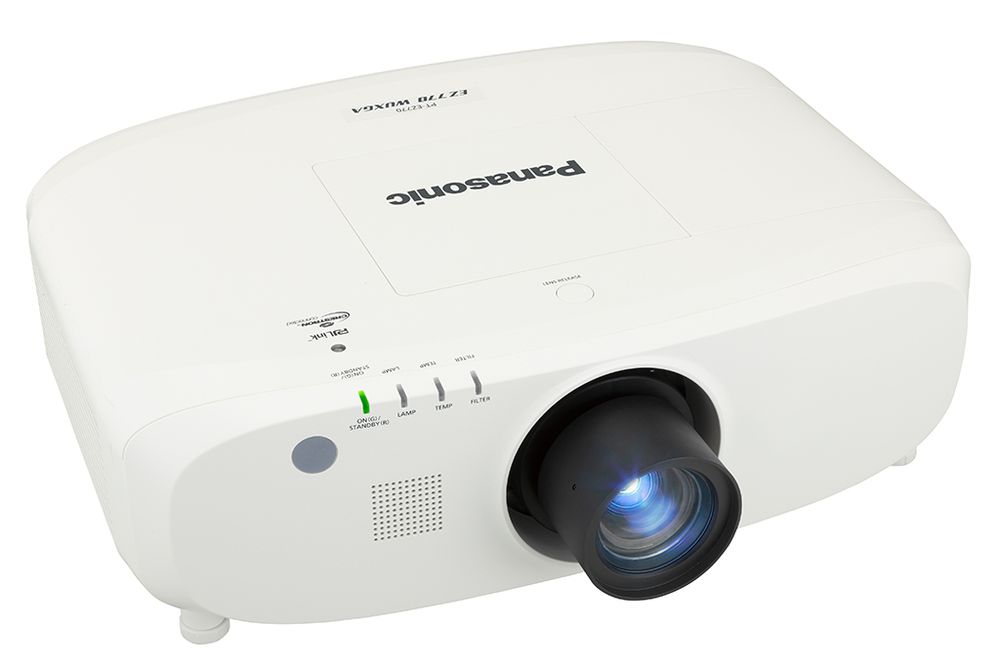

Panasonic PT-EX800ZE Projector


Panasonic PT-EX800ZE Key Features

  • LCD Display Technology
  • 7,500 Lumens
  • 0 Optional Lenses (Click Here)
  • XGA 1024*768 Native Resolution
  • 3,000 hour lamp life (typical)
  • 5,000:1 Contrast Ratio
  • 10.6kg (23.4lb.)
  • Wide zoom range for flexible placement
  • HDCP Compliant DVI
  • Lens Shift
  • Corner Projection
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Picture-In-Picture
  • Picture-and-Picture
  • Interchangeable Lens System
  • Can Be Installed Vertically
  • Lens-centred Design
  • Mechanical Shutter
  • Logo capture and display
  • PIN Code Security
  • Digital (HDMI/DVI/DisplayPort) Input
  • DICOM Simulation Mode
  • Motorised Zoom and Focus
  • Monitor Out
  • Network Control

Panasonic PT-EX800ZE Specifications

Categories Conference / Large Venue
Interchangeable Lens
Lens Shift
Manufacturer Panasonic (Click for rest of range)

Panasonic PT-EX800ZE Optical Features

System 3 * 0.79" LCD
Resolution XGA (1024*768)
Aspect Ratio 4:3
Lumens 7,500
Contrast 5,000:1
Lamp 400W UHM
Lamp Life 3,000hrs. (4,500hrs. ECO mode)
Interchangeable Yes
Throw Ratio 1.7 - 2.8:1
Image Size 40"-400" diagonal
Throw Distance 1.30-24.48m
Throw distance for 100" image 3.45 - 5.69m
Lens Shift Vertical: 50%
Horizontal: 10%
KeystoneCorrection 40° (Vertical)
30° (Horizontal)

Panasonic PT-EX800ZE Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. 15.75-91kHz
Vertical Freq. 24-120Hz

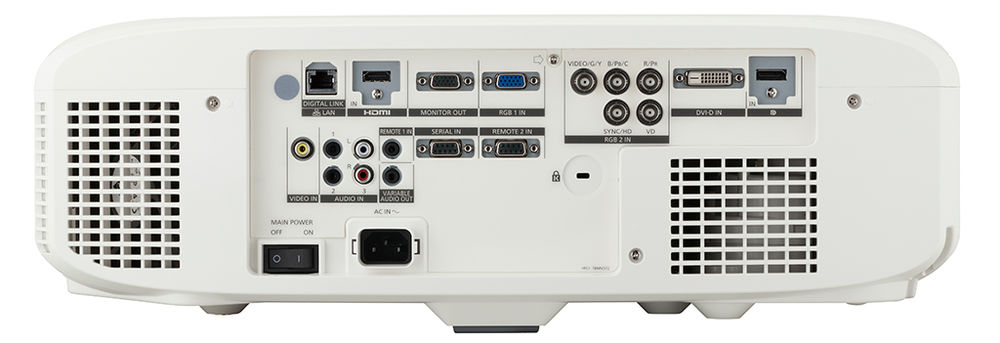

Panasonic PT-EX800ZE Terminals

DVI 1 (HDCP Compliant)
HDMI 1
DisplayPort 1
RGBHV (15-pin HD) 1
RGBHV (BNC/RCA) 1
S-Video 1
Composite 1
Monitor Out Yes
Audio In 3
Audio Out 1
RS-232 1
Network Ready Yes

Panasonic PT-EX800ZE General

Speakers 10W mono

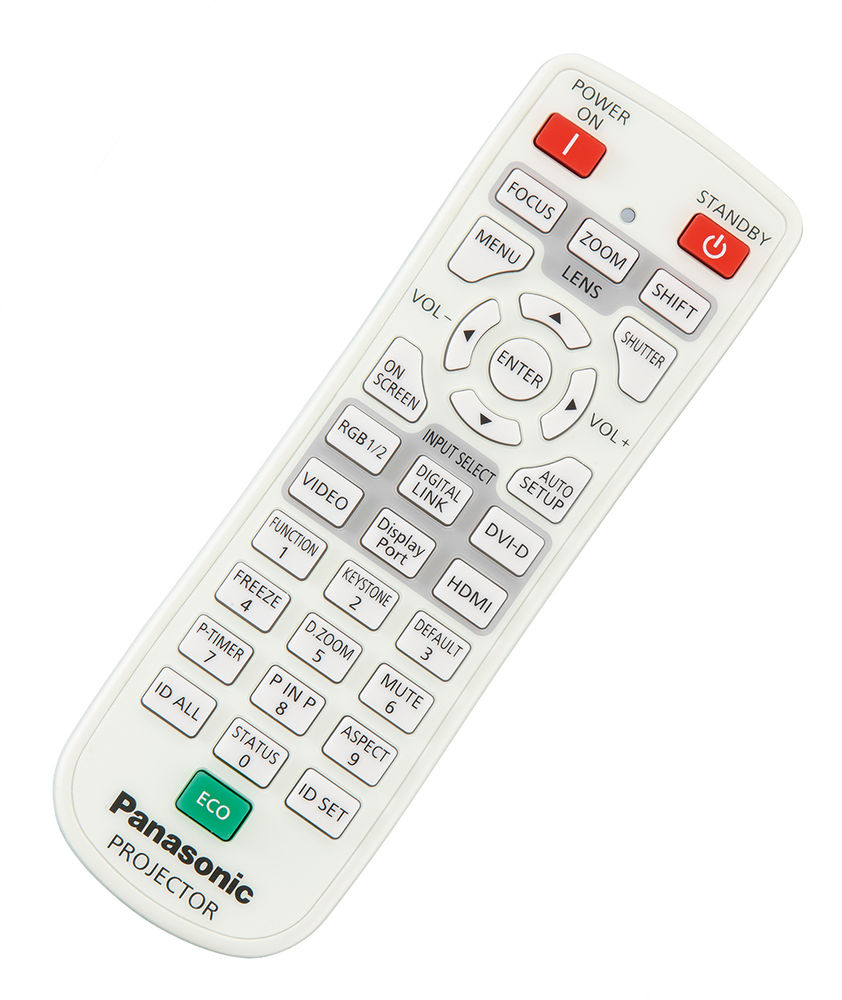

Remote Control Panasonic PT-EX800ZE only
Noise 37db (29db ECO mode)
Dimensions 530*177*385mm (W*H*D)
Weight 10.60kg
Power Supply 100-240 V AC, 50/60 Hz
Power Consumption 575Watts
Manufacturers Warranty 3 year collect/return with loan if available
Light Source Warranty 6 Months/1000 hours (whichever first)

Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.

Panasonic PT-EX800ZE Optional Lenses

Projector lens
Description Price Inc. VAT
Panasonic ET-ELW21 Fixed Short Throw Lens £1286 £1543.20
Panasonic ET-ELW20 Short Throw Zoom Lens £1286 £1543.20
Panasonic ET-ELT20 Semi-long throw zoom Lens Discontinued
Panasonic ET-ELT21 Long Throw Zoom Lens Discontinued
