Panasonic PT-EX620EJ Projector
Panasonic PT-EX620EJ Key Features
- LCD Display Technology
- 6200 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- XGA 1024*768 Native Resolution
- 4,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 8.4kg (18.5lb.)
- PJLink
- Wide zoom range for flexible placement
- Lens Shift
- Curved Surface Projection
- Horizontal & Vertical Keystone Correction
- Direct Power Off

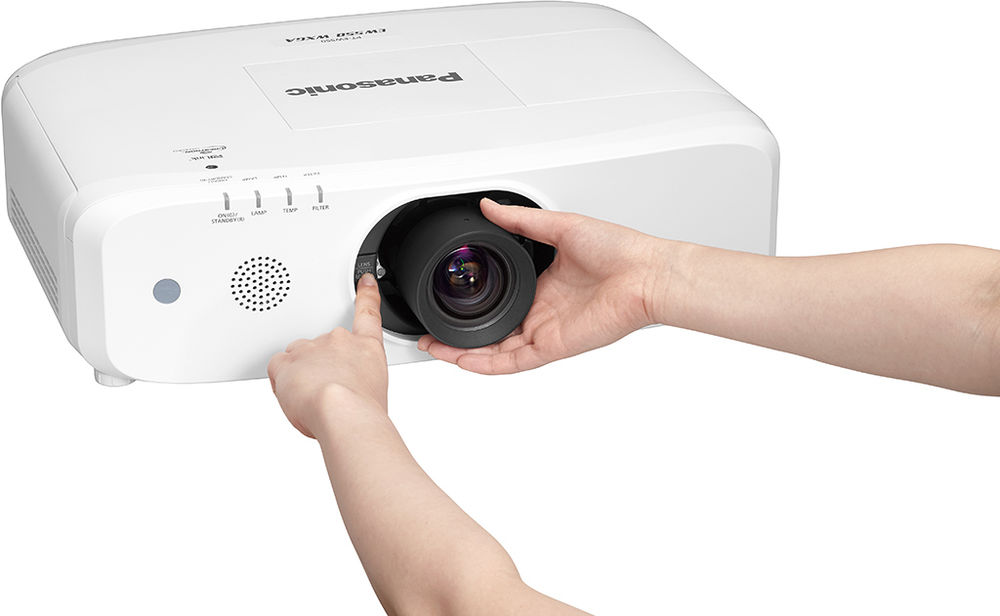

- Interchangeable Lens System
- Lens-centred Design
- Mechanical Shutter
- PIN Code Security
- DICOM Simulation Mode
- Monitor Out
Panasonic PT-EX620EJ Specifications
| Categories | Interchangeable Lens Lens Shift |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-EX620EJ Optical Features |
|
| System | 3 * 0.63" LCD |
| Resolution | XGA (1024*768) |
| Aspect Ratio | 4:3 |
| Lumens | 6,200 |
| Colour Light Output | 6200 Lumens |
| Contrast | 10,000:1 |
| Lamp | 320W UHM |
| Lamp Life | 4,000hrs. (5,000hrs. ECO mode) |
| Interchangeable | Yes |
| Throw Ratio | 1.32 - 2.44:1 |
| Image Size | 40"-400" diagonal |
| Throw Distance | 1.05-19.99m |
| Throw distance for 100" image | 2.68 - 4.96m |
| Lens Shift | Horizontal: 25% Vertical: 50% |
| Keystone |
±35° (Vertical) |
| ±35° (Horizontal) | |
Panasonic PT-EX620EJ Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080i, 720p |

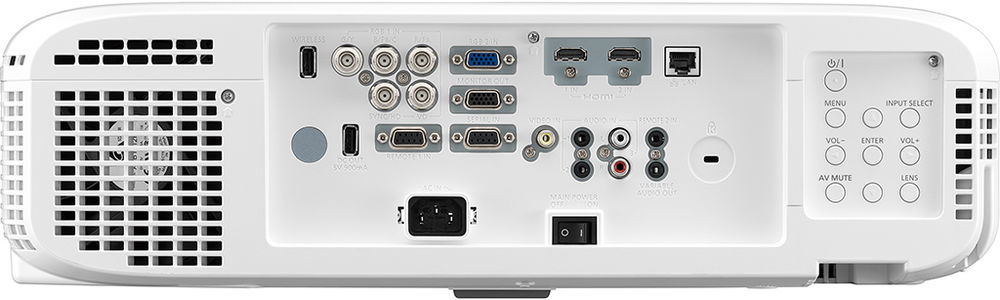

Panasonic PT-EX620EJ Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
Panasonic PT-EX620EJ General |
|
| Speakers | 10w Mono |
| Remote Control | Panasonic PT-EX620EJ only |
| Noise | 35db (29db ECO mode) |
| Dimensions | 498*145*398mm (W*H*D) |
| Weight | 8.40kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 424Watts |
| Manufacturers Warranty | 3 year collect/return with loan if available |
| Light Source Warranty | 6 months/500 hours (whichever first) |
Panasonic PT-EX620EJ Package Contents |
|
| Accessories | Power cord (including power cord holder) x 1*10 wireless remote control unit x1 batteries for remote control (AAA/R03/LR03 type) x 2 software CD-ROM (Logo Transfer Software Multi Monitoring & Control Software) x 1 |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-EX620EJ Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-ELW31 Ultra Short Throw Zoom Lens | £2316 | £2779.20 |
| Panasonic ET-ELW30 Short Throw Zoom Lens | Discontinued | |
| Panasonic ET-ELT30 Semi Long Throw Zoom Lens | £1342 | £1610.40 |
| Panasonic ET-ELT31 Long Throw Zoom Lens | £1342 | £1610.40 |
Panasonic PT-EX620EJ Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 10 Hard case for projectors weighing 5-10kg | £153.00 | £183.60 |
