Panasonic PT-DX100ELK Projector


Panasonic PT-DX100ELK Key Features

  • FREE Delivery on this item
  • DLP Display Technology
  • 10,000 Lumens
  • 0 Optional Lenses (Click Here)
  • XGA 1024*768 Native Resolution
  • 4,000 hour lamp life (typical)
  • 10,000:1 Contrast Ratio
  • 18.3kg (40.3lb.)
  • HDCP Compliant DVI
  • Lens Shift
  • Direct Power Off
  • Picture-In-Picture
  • Interchangeable Lens System
  • Can Be Installed Vertically
  • Lens-centred Design
  • Mechanical Shutter
  • Logo capture and display
  • PIN Code Security
  • Warrantied for 24/7 use
  • Edge Blending
  • DICOM Simulation Mode
  • 3D Projection Ready
  • Motorised Zoom and Focus
  • sRGB Colour Mode
  • Monitor Out
  • Network Control

Panasonic PT-DX100ELK Specifications

Categories Conference / Large Venue
Interchangeable Lens
Lens Shift
Manufacturer Panasonic (Click for rest of range)

Panasonic PT-DX100ELK Optical Features

System 1 * 0.7" DMD
Resolution XGA (1024*768)
Aspect Ratio 4:3
Lumens 10,000
Contrast 10,000:1
Lamp 2 * 420 W UHM lamp
Lamp Life 4,000hrs.
Interchangeable Yes
Lens Shift Vertical: 50%
Horizontal: 10
KeystoneCorrection ±40° (Vertical)

Panasonic PT-DX100ELK Compatibility

Computer Resolutions VGA, SVGA, XGA, SXGA, SXGA+
Video Resolutions PAL, SECAM, NTSC, 720p, 1080i, 1080p
Horizontal Freq. 15-100kHz
Vertical Freq. 24-120Hz

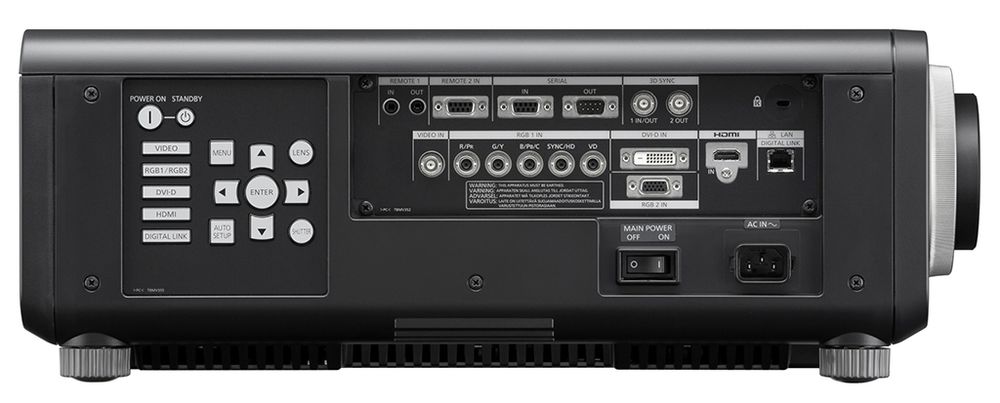

Panasonic PT-DX100ELK Terminals

DVI 1 (HDCP Compliant)
HDMI 1
RGBHV (15-pin HD) 1
RGBHV (BNC/RCA) 1
Composite 1
Monitor Out Yes
RS-232 2
Network Ready Yes

Panasonic PT-DX100ELK General

Speakers No
Remote Control Panasonic PT-DX100ELK only
Noise 40db (35db ECO mode)
Dimensions 498*200*556mm (W*H*D)
Weight 18.30kg
Power Supply 120-240 V AC, 10-5.2 A, 50/60 Hz
Power Consumption 1030Watts
Manufacturers Warranty 3 year with loan support (if available)
Light Source Warranty 90 days/1000 hours (whichever first)

Panasonic PT-DX100ELK Package Contents

Accessories Power cord with secure lock

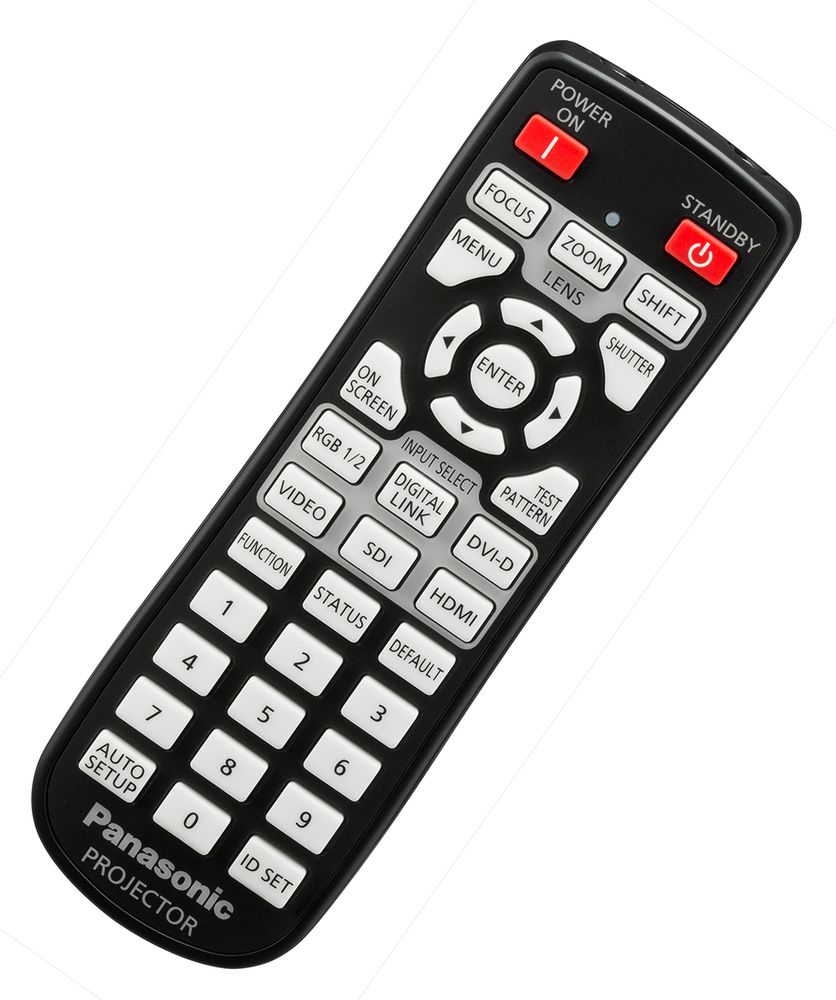

wireless/wired remote control unit
batteries (R03/AAA type x 2)
software CD-ROM (Logo Transfer Software
Multi Projector Monitoring & Control Software)

Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
