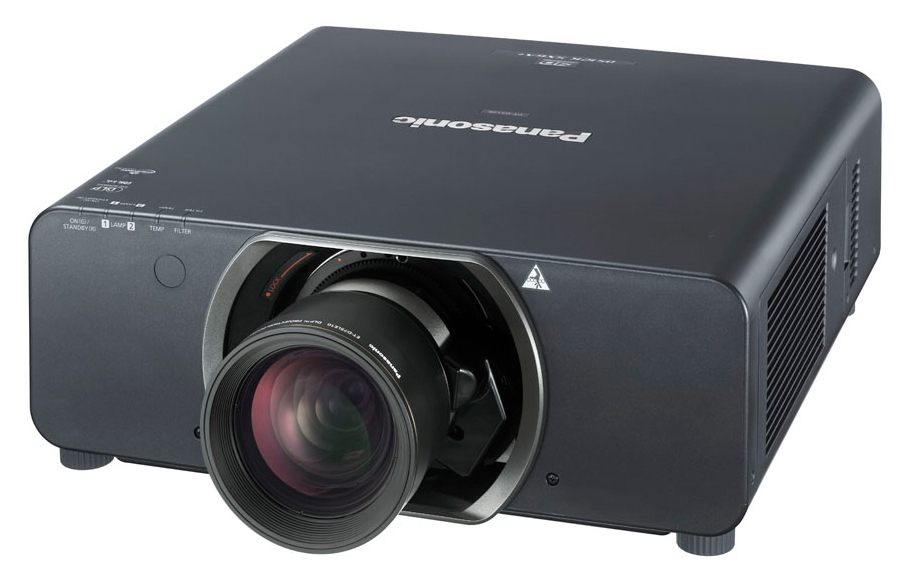

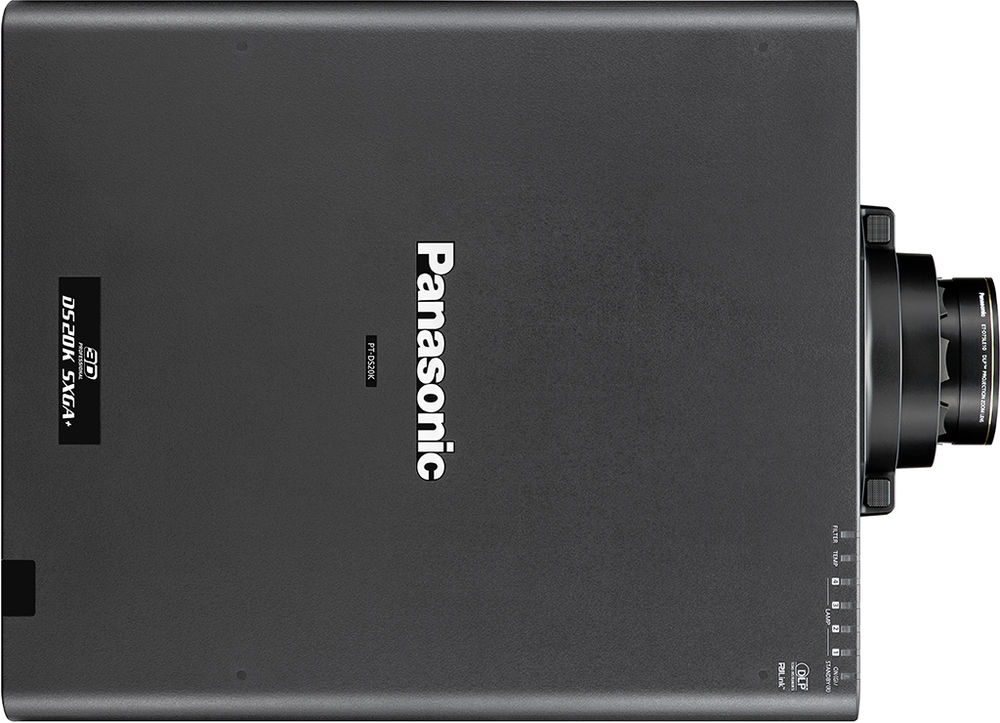

Panasonic PT-DS20K2EJ Projector
Panasonic PT-DS20K2EJ Key Features
- 3 CHIP DLP Display Technology
- 20,000 Lumens
- 0 Optional Lenses (Click Here)
- SXGA+ 1400*1050 Native Resolution
- 1,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 43kg (94.8lb.)
- HDCP Compliant DVI
- Lens Shift
- Horizontal & Vertical Keystone Correction
- Picture-In-Picture
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Mechanical Shutter
- Logo capture and display
- Edge Blending
- DICOM Simulation Mode
- 3D Projection Ready
- Network Control
Panasonic PT-DS20K2EJ Downloads
- Exhibitions and large venues
- Horizontal Surface Projection
- Medical Imaging
- Super bright applications
Panasonic PT-DS20K2EJ Specifications
| Categories | Conference / Large Venue Interchangeable Lens Lens Shift |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-DS20K2EJ Optical Features |
|
| System | 3 * 0.95" DLP |
| Resolution | SXGA+ (1400*1050) |
| Aspect Ratio | 4:3 |
| Lumens | 20,000 |
| Contrast | 10,000:1 |
| Lamp | 4 * 432W UHP |
| Lamp Life | 1,000hrs. (2,000hrs. ECO mode) |
| Interchangeable | Yes |
| Image Size | 70"-1000" diagonal |
| Lens Shift | Vertical: 50% Horizontal: 30% |
| Keystone |
±40° (Vertical) |
| ±40° (Horizontal) | |
Panasonic PT-DS20K2EJ Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080i, 720p |

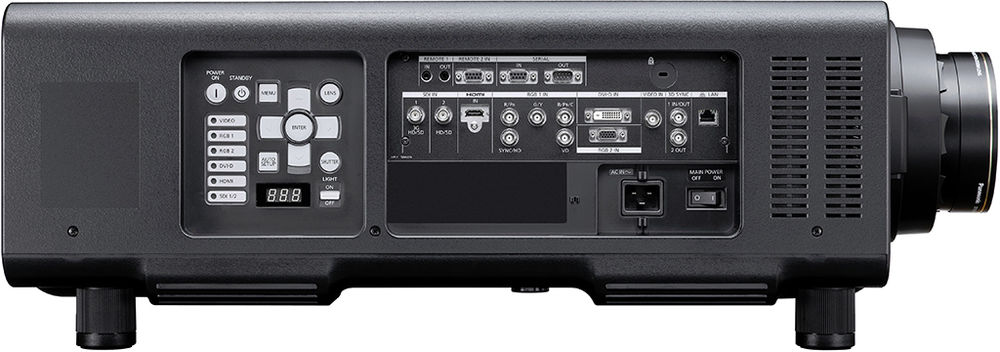

Panasonic PT-DS20K2EJ Terminals |
|
| DVI | 1 (HDCP Compliant) |
| HDMI | 1 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| Composite | 1 |
| HD-SDI | 2 |
| RS-232 | 1 |
| Network Ready | Yes |
Panasonic PT-DS20K2EJ General |
|
| Speakers | No |
| Remote Control | Panasonic PT-DS20K2EJ only |
| Noise | 49db |
| Dimensions | 620*291*800mm (W*H*D) |
| Weight | 43.00kg |
| Power Supply | 200-240V AC; 50-60Hz |
| Power Consumption | 2060Watts |
| Manufacturers Warranty | 3 years |
| Light Source Warranty | 90 Days/1000 hours (whichever first) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-DS20K2EJ Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-D75LE50 Short throw fixed Lens | Discontinued | |
| Panasonic ET-D75LE6 Ultra short throw zoom Lens | Discontinued | |
| Panasonic ET-D75LE10 Semi-short Throw Zoom Lens | Discontinued | |
| Panasonic ET-D75LE20 Mid range zoom Lens | Discontinued | |
| Panasonic ET-D75LE30 Semi-long throw zoom Lens | Discontinued | |
| Panasonic ET-D75LE40 Long throw zoom Lens | Discontinued | |
| Panasonic ET-D75LE8 Ultra long throw zoom Lens | Discontinued | |
Panasonic PT-DS20K2EJ Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case XL Hard case with castors for projectors weighing over 25kg | £247.00 | £296.40 |
| Unicol PSU Bespoke projector bracket for projectors up to 40kg (Finished in black or white) | £111.00 | £133.20 |
