Optoma UHZ65LV Projector

No Longer Available

Click for Current Optoma range

Optoma UHZ65LV Key Features

• FREE Delivery on this item
• DLP Display Technology
• 5,000 Lumens
• UHD 3840*2160 Native Resolution
• 20,000 hour lamp life (typical)
• 2,000,000:1 Contrast Ratio
• 9.8kg (21.6lb.)
• Wide zoom range for flexible placement
• Native Widescreen
• Lens Shift
• 12v Trigger
• Laser Pointer Remote
• MHL
• Lens-centred Design
• PIN Code Security
• High Dynamic Range (HDR) Ready
• DICOM Simulation Mode
• sRGB Colour Mode
• Network Control

Instruction Manual

• Boardroom Projectors
• CAD, engineering and precision presentations
• Conference rooms (20 - 50 people)
• Home cinema and business dual use
• LED/Laser
• Medical Imaging
• Museums

Optoma UHZ65LV Specifications

Categories	Lens Shift Installation HD LED/Laser HD
Manufacturer	Optoma (Click for rest of range)
Optoma UHZ65LV Optical Features
System	1 * DMD
Resolution	UHD (3840*2160)
Aspect Ratio	16:9
Lumens	5,000
Contrast	2,000,000:1
Lamp	Laser
Lamp Life	20,000hrs. (30,000hrs. ECO mode)
Interchangeable	No
Zoom Range	1.6x
Throw Ratio	1.39 - 2.22:1
Image Size	26"-302" diagonal
Throw Distance	1.30-9.30m
Throw distance for 100" image	3.08 - 4.91m
Lens Shift	Vertical: +15%
Optoma UHZ65LV Compatibility
Computer Resolutions	UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions	480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz), 2160p(50/60Hz)
Horizontal Freq.	31-135kHz
Vertical Freq.	24-120Hz

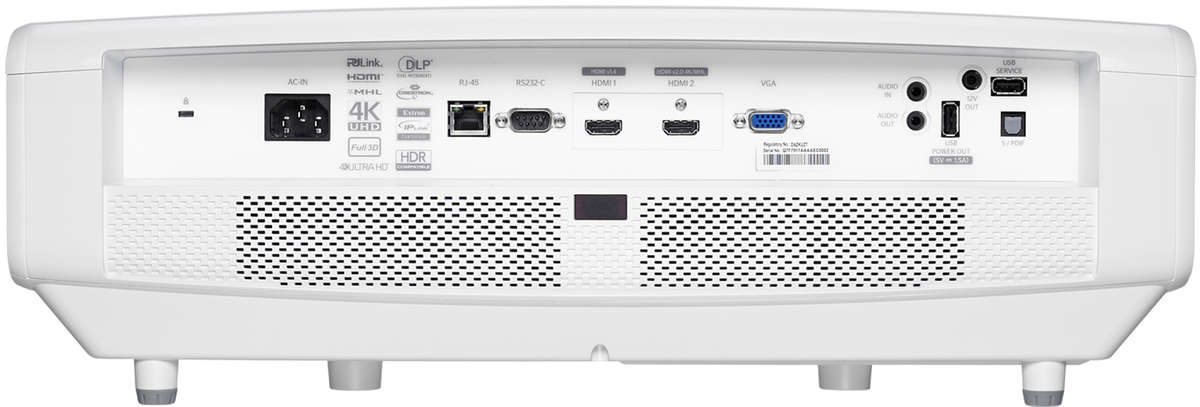

Optoma UHZ65LV Terminals
HDMI	2
RGBHV (15-pin HD)	1
Audio In	1
Audio Out	2
USB	2
RS-232	1
12v Trigger	Yes
Network Ready	Yes
Optoma UHZ65LV General
Speakers	4w Stereo

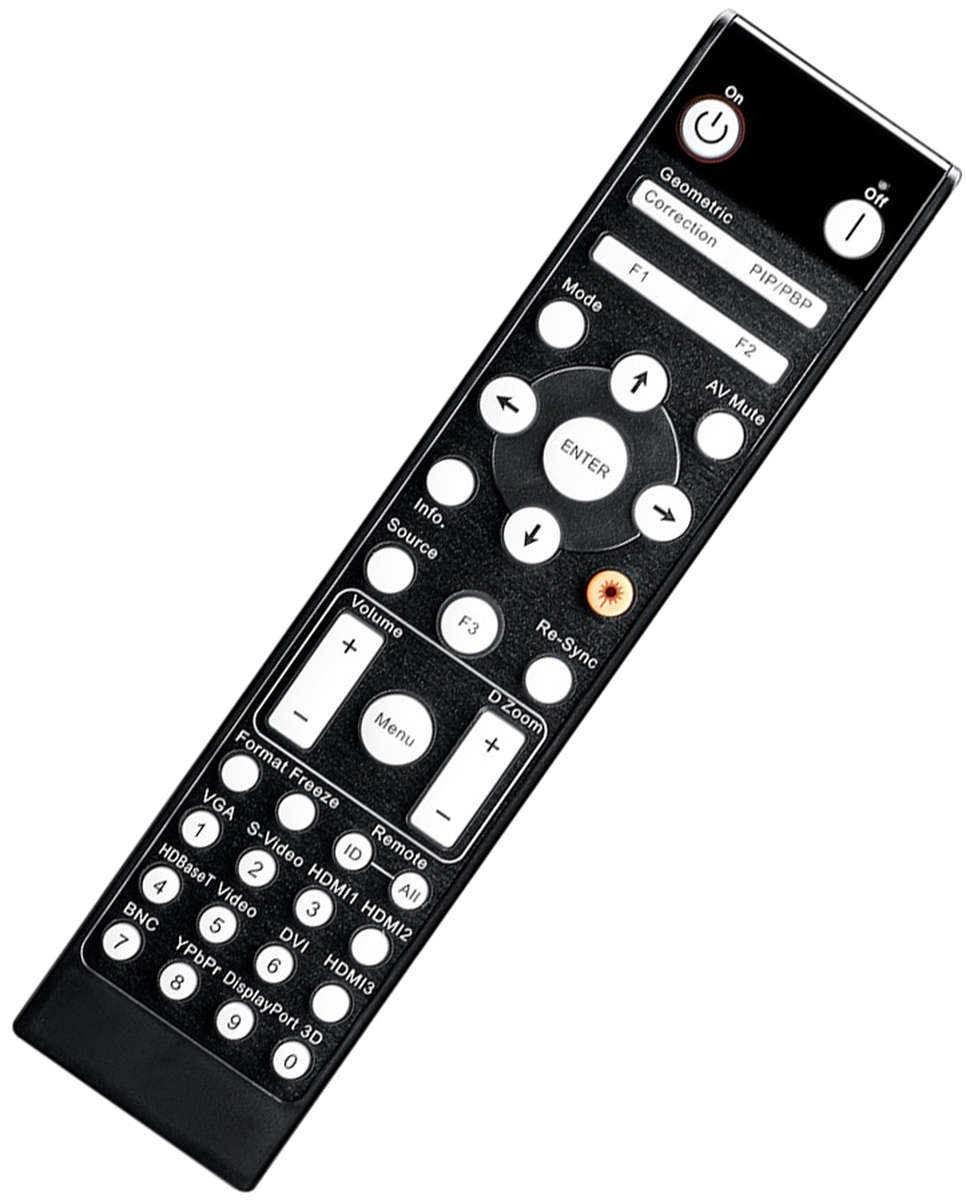

Remote Control	Optoma UHZ65LV + Laser Pointer
Noise	29db
Dimensions	298*171*331mm (W*H*D)
Weight	9.80kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	368Watts
Manufacturers Warranty	3 year return to base
Light Source Warranty	5 years/12,000 hours (whichever first)
Optoma UHZ65LV Package Contents
Accessories	AC power cord Remote control 2x AAA batteries Lens cap Basic user manual
Additional
3D compatibility	Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
Security	Security bar, Kensington Lock, Password protected interface

Ivojo Multimedia are approved Optoma dealers and supply only UK products with full UK warranties.

Optoma UHZ65LV Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
