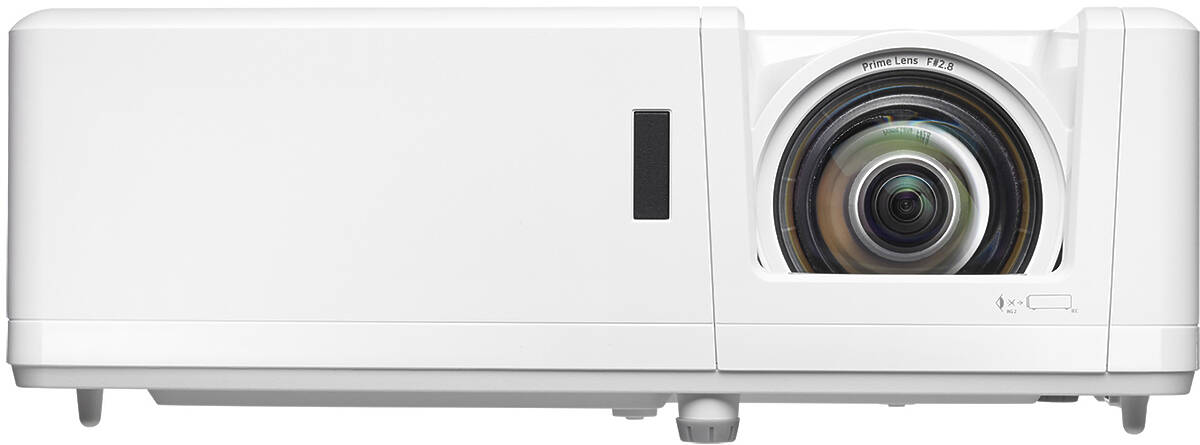

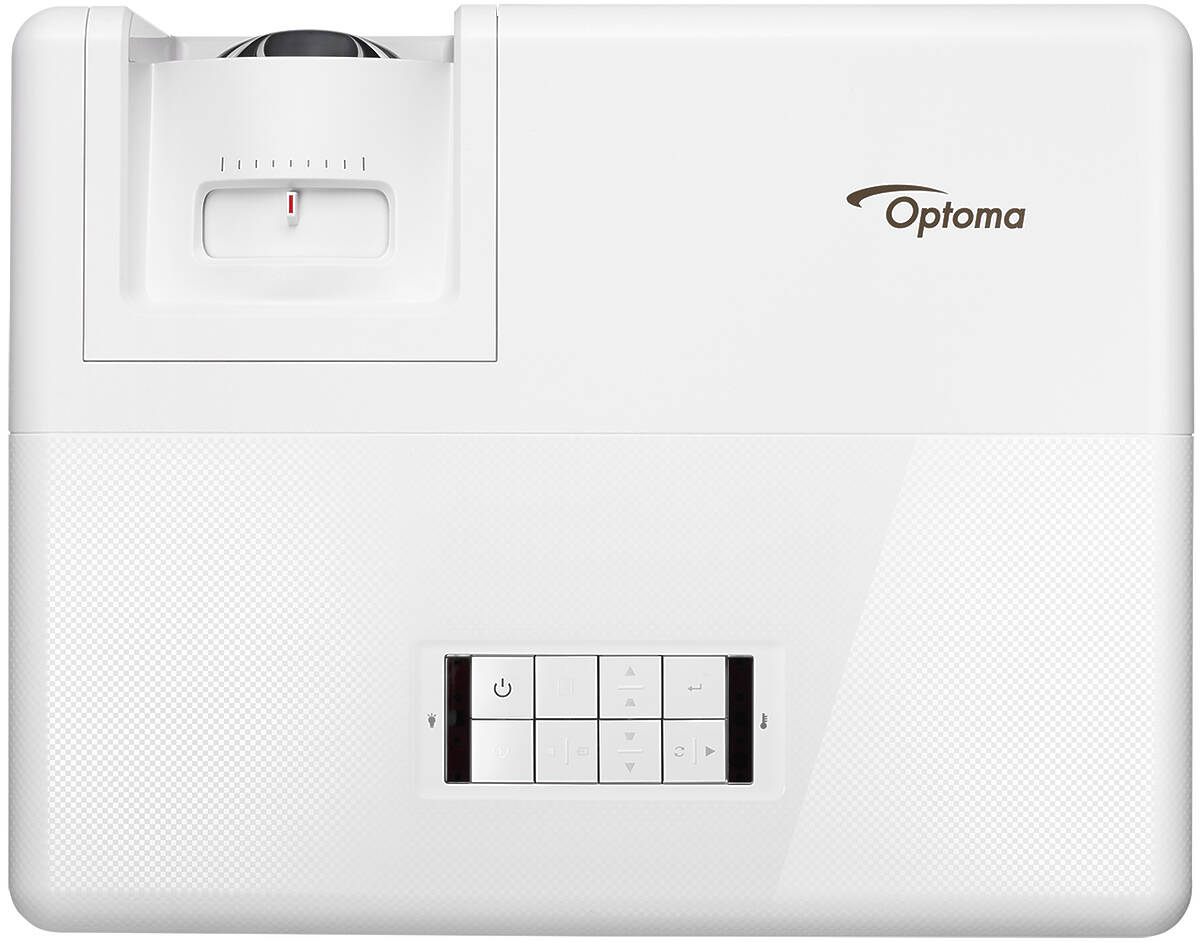

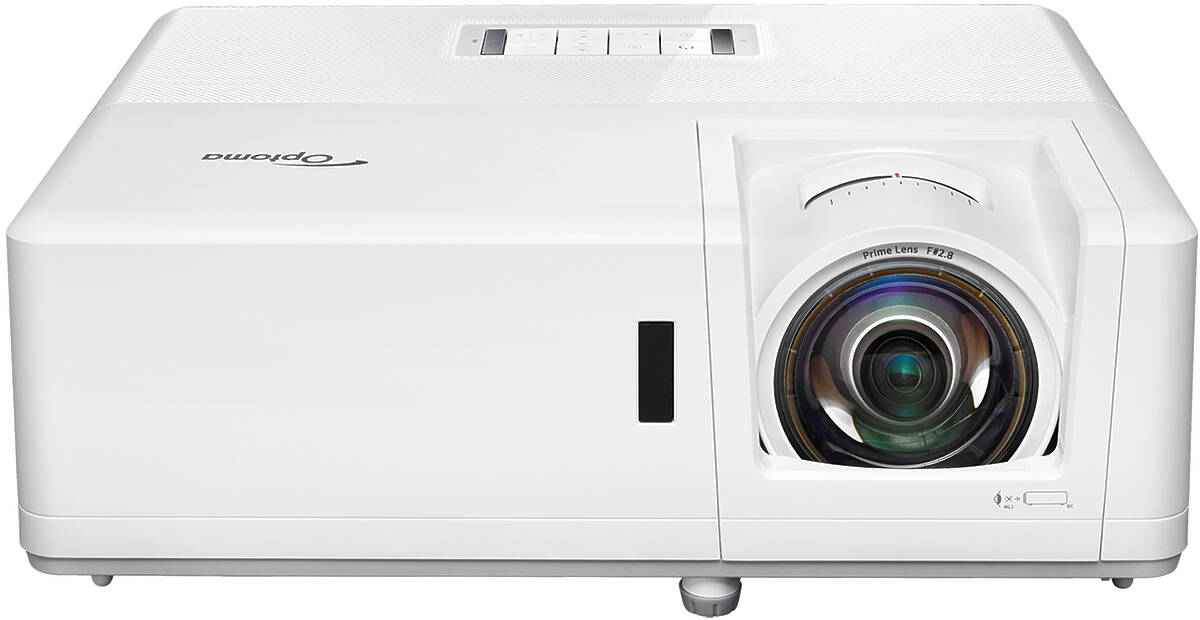

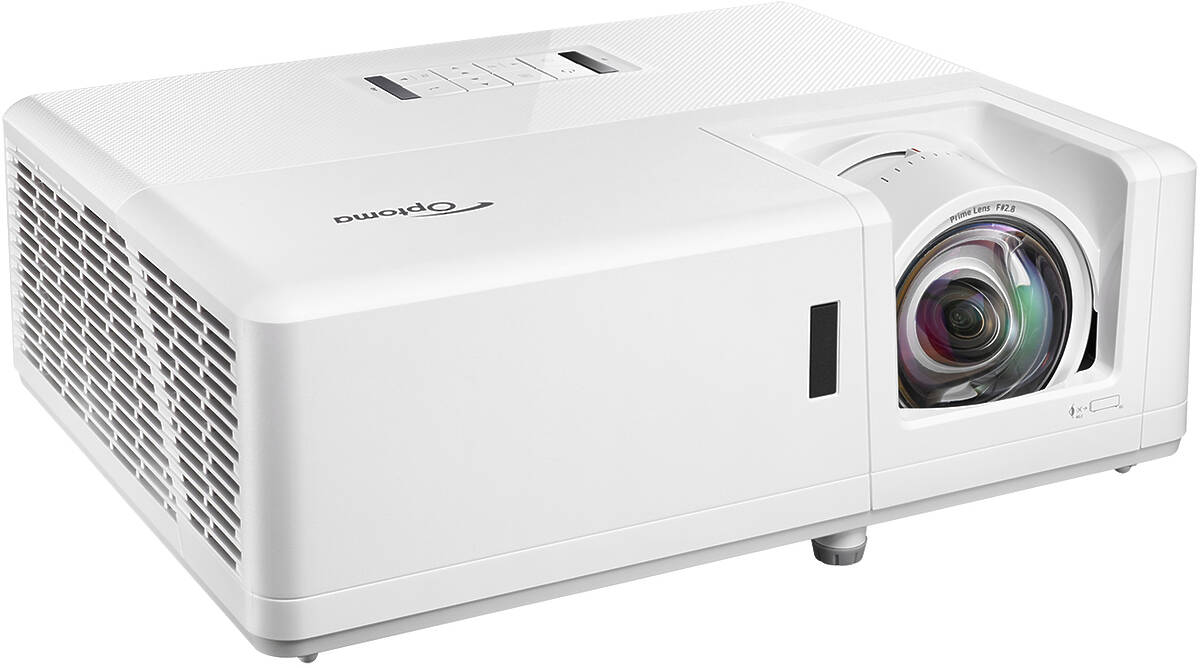

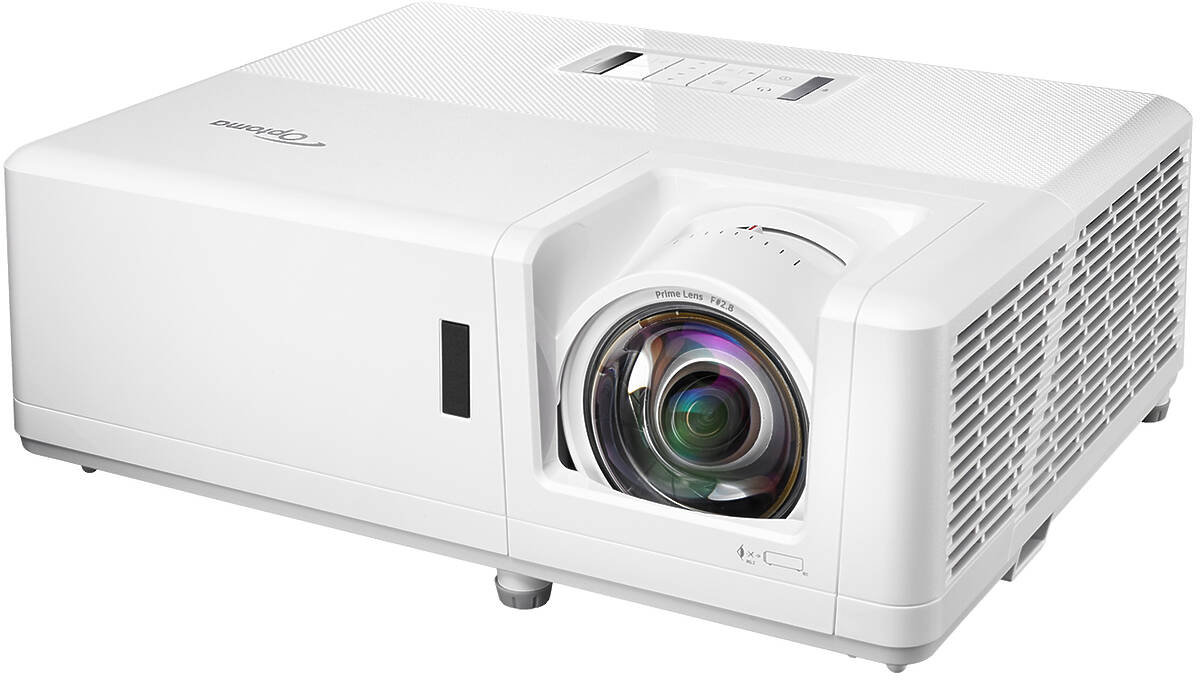

Optoma HZ40STx Projector

No Longer Available

Click for Current Projector range

Optoma HZ40STx Key Features

• DLP Display Technology
• 4,000 Lumens
• 1080P 1920*1080 Native Resolution
• 30,000 hour lamp life (typical)
• 2,500,000:1 Contrast Ratio
• 5.5kg (12.1lb.)
• Ultra Short Throw (0.5:1)
• Native Widescreen
• 12v Trigger
• Mouse Emulation Remote
• Laser Pointer Remote
• PIN Code Security
• Warrantied for 24/7 use
• 3D Projection Ready
• Network Control

Optoma HZ40STx Downloads

Instruction Manual

• Boardroom Projectors
• Conference rooms (20 - 50 people)
• Home cinema and business dual use
• LED/Laser
• Ultra short throw

Optoma HZ40STx Specifications

Categories	Ultra Short Throw HD LED/Laser HD
Manufacturer	Optoma (Click for rest of range)
Optoma HZ40STx Optical Features
System	1 * DMD
Resolution	1080P (1920*1080)
Aspect Ratio	16:9
Lumens	4,000
Contrast	2,500,000:1
Lamp	Laser
Lamp Life	30,000hrs. (30,000hrs. ECO mode)
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.5 - 0.5:1
Image Size	36"-299" diagonal
Throw Distance	0.40-3.31m
Throw distance for 100" image	1.11 - 1.11m
Lens Shift	No
KeystoneCorrection	±30° (Vertical)
	±30° (Horizontal)
Optoma HZ40STx Compatibility
Computer Resolutions	FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions	NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)

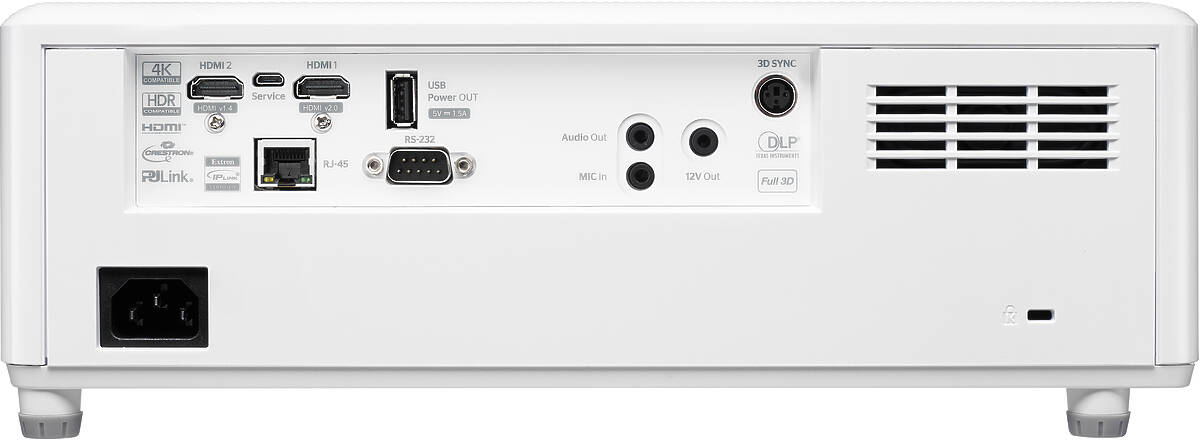

Optoma HZ40STx Terminals
HDMI	2
Audio In	2
Audio Out	1
USB	2
RS-232	1
12v Trigger	Yes
Network Ready	Yes
Optoma HZ40STx General
Speakers	10W Mono

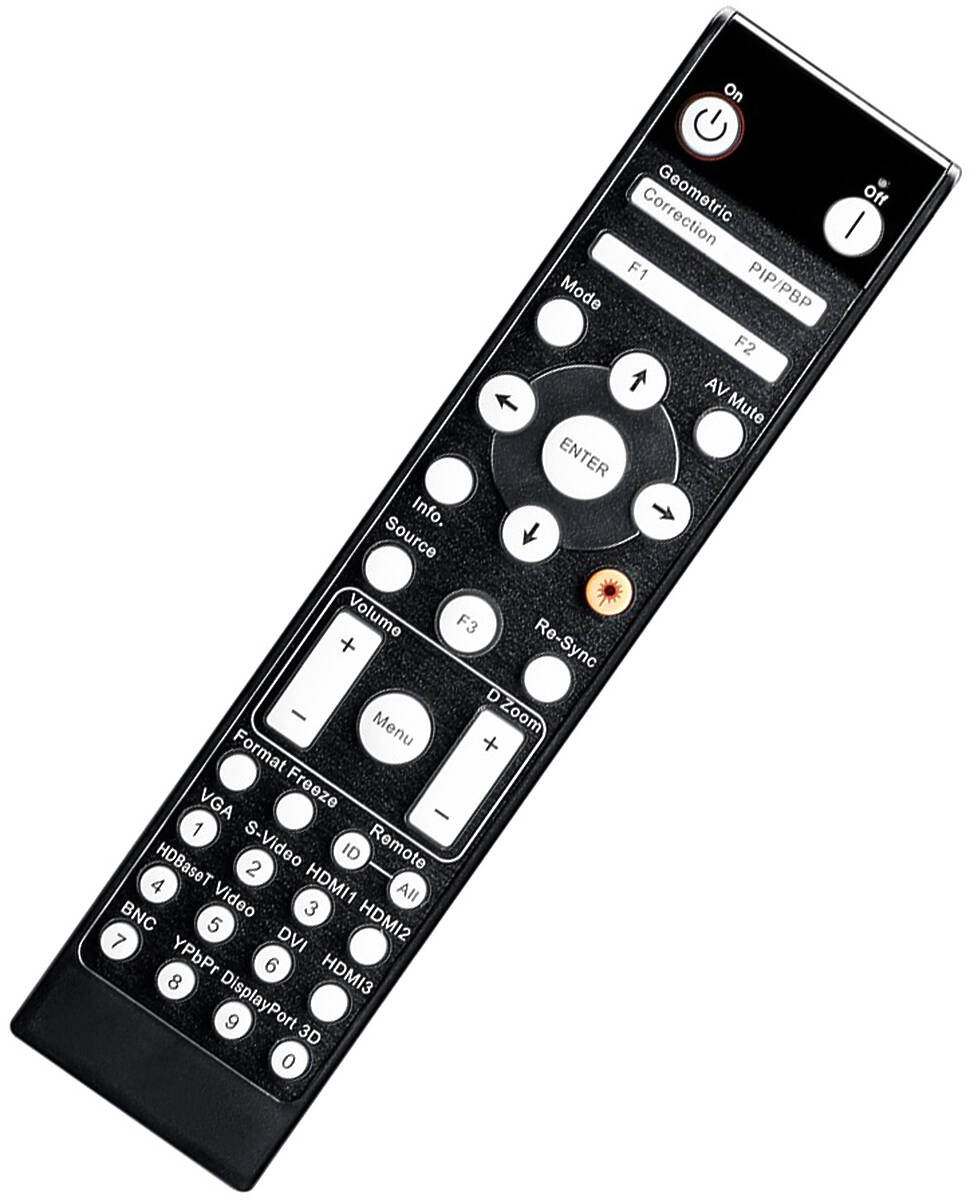

Remote Control	Optoma HZ40STx + Mouse Emulation + Laser Pointer
Noise	32db (30db ECO mode)
Dimensions	337*123*265mm (W*H*D)
Weight	5.50kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	269Watts
Manufacturers Warranty	2 Year Return to Base
Light Source Warranty	5 years/12,000 hours (whichever first)
Optoma HZ40STx Package Contents
Accessories	AC power cord Remote control 2x AAA batteries Basic user manual
Additional
3D compatibility	Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
Security	Security bar, Kensington Lock, Password protected interface
Input lag	8.20ms

Ivojo Multimedia are approved Optoma dealers and supply only UK products with full UK warranties.
