Optoma DZ500 Projector

No Longer Available

Click for Current Optoma range

Optoma DZ500 Key Features

• DLP Display Technology
• 5,500 Lumens
• 1080P 1920*1080 Native Resolution
• 30,000 hour lamp life (typical)
• 250,000:1 Contrast Ratio
• 5.5kg (12.1lb.)
• Wide zoom range for flexible placement
• Native Widescreen
• Lens Shift
• 12v Trigger
• Direct Power On
• Portrait Mode
• Can Be Installed Vertically
• Logo capture and display
• PIN Code Security
• 3D Projection Ready
• Monitor Out
• Network Control

Instruction Manual

• Church Projectors
• Horizontal Surface Projection
• LED/Laser
• Museums
• Portrait Mode Applications

Optoma DZ500 Specifications

Categories	Lens Shift LED/Laser HD
Manufacturer	Optoma (Click for rest of range)
Optoma DZ500 Optical Features
System	1 * DMD
Resolution	1080P (1920*1080)
Aspect Ratio	16:9
Lumens	5,500
Contrast	250,000:1
Lamp	Laser
Lamp Life	30,000hrs.
Interchangeable	No
Zoom Range	1.6x
Throw Ratio	1.4 - 2.24:1
Image Size	28"-300" diagonal
Throw Distance	1.00-10.00m
Throw distance for 100" image	3.10 - 4.96m
Lens Shift	Vertical: 103 - 118%
KeystoneCorrection	±30 (Vertical)
	±30 (Horizontal)
Optoma DZ500 Compatibility
Computer Resolutions	UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions	4K, UHD, HD, 720p, PAL, SECAM, NTSC
Horizontal Freq.	15.375-91.146kHz
Vertical Freq.	50-85+120Hz

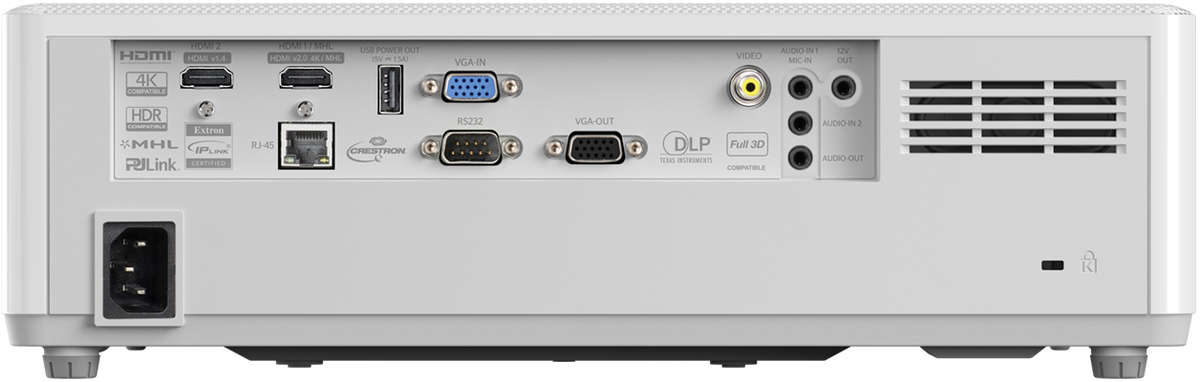

Optoma DZ500 Terminals
HDMI	2
RGBHV (15-pin HD)	1
Composite	1
Monitor Out	Yes
Audio In	3
Audio Out	1
USB	1
RS-232	1
12v Trigger	Yes
Network Ready	Yes
Optoma DZ500 General
Speakers	10w Stereo

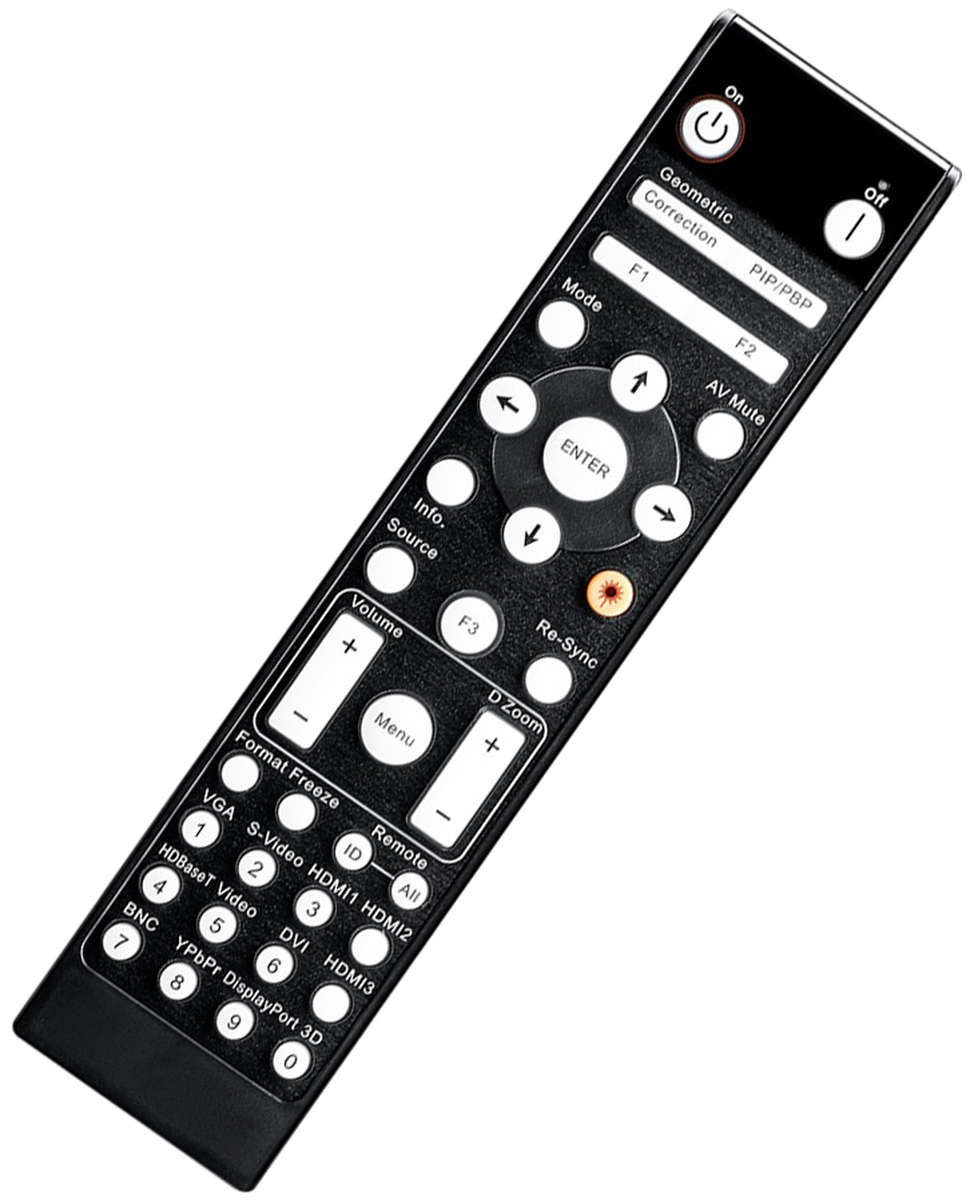

Remote Control	Optoma DZ500 only
Noise	33db (28db ECO mode)
Dimensions	374*117*302mm (W*H*D)
Weight	5.50kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	341Watts
Manufacturers Warranty	1 year Return To Base
Light Source Warranty	5 Years/12,000 hours (whichever first)
Optoma DZ500 Package Contents
Accessories	AC power cord Remote control 2x AAA batteries Basic user manual
Additional
3D compatibility	Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
Security	Security bar, Kensington Lock, Password protected interface
