NEC UM361X Projector

No Longer Available

Click for Current NEC range

NEC UM361X Key Features

• LCD Display Technology
• 3,600 Lumens
• XGA 1024*768 Native Resolution
• 3,800 hour lamp life (typical)
• 4,000:1 Contrast Ratio
• 5.6kg (12.3lb.)
• Ultra Short Throw (0.36:1)
• PC Free Presentations
• Direct Power Off
• Mouse Emulation Remote
• Includes Wall Bracket
• Micro Lens Array
• Logo capture and display
• PIN Code Security
• Quick Power On
• Quick Power Off
• DICOM Simulation Mode
• Monitor Out
• Network Control

• PC Free Presentations
• Ultra short throw

NEC UM361X Specifications

Categories	PC Free Ultra Short Throw
Manufacturer	NEC (Click for rest of range)
NEC UM361X Optical Features
System	3 * 0.59" LCD
Resolution	XGA (1024*768)
Aspect Ratio	4:3
Lumens	3,600
ECO Mode Lumens	2,160
Contrast	4,000:1
Lamp	255W/160W Eco
Lamp Life	3,800hrs. (6,000hrs. ECO mode)
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.36 - 0.36:1
Image Size	58"-110" diagonal
Throw Distance	0.45-0.85m
Throw distance for 100" image	0.73 - 0.73m
KeystoneCorrection	±10° (Vertical)
NEC UM361X Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080i, 720p
Horizontal Freq.	15-100kHz
Vertical Freq.	24-120Hz

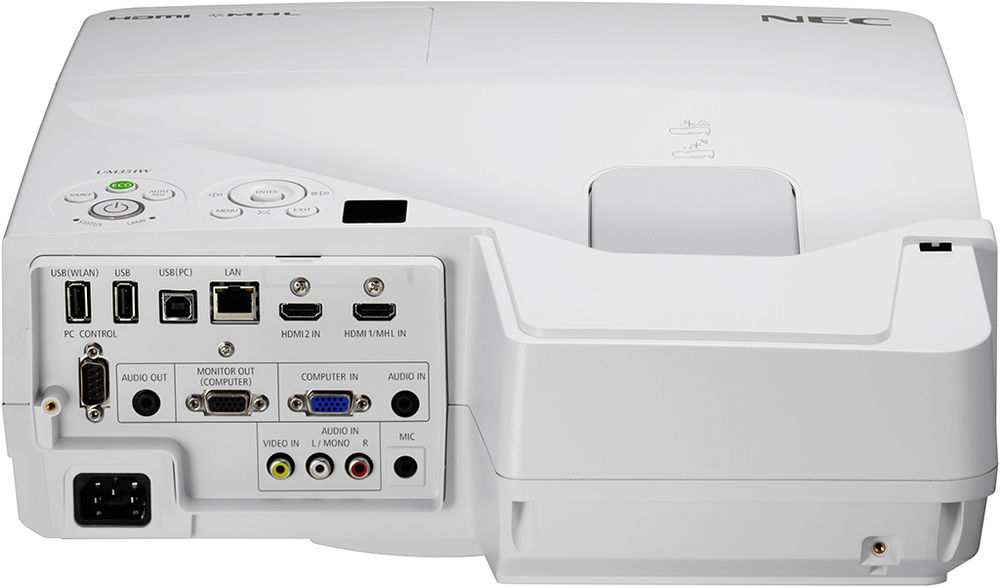

NEC UM361X Terminals
HDMI	2
RGBHV (15-pin HD)	1
Composite	1
Monitor Out	Yes
Audio In	2
Audio Out	1
USB	3
RS-232	1
Network Ready	Yes
NEC UM361X General
Speakers	20w mono
Remote Control	NEC UM361X + Mouse Emulation
Noise	35db (27db ECO mode)
Dimensions	378*112*428mm (W*H*D)
Weight	5.60kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	337Watts
Manufacturers Warranty	3 year pan European loan support
Light Source Warranty	6 months/1000 hours (whichever first)
NEC UM361X Package Contents
Accessories	IR Remote Control (RD-448E); Mini D-SUB Signal Cable; Power Cord (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Wall-mount kit NP04WK

Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
