NEC UM351W Projector

No Longer Available

Click for Current NEC range

NEC UM351W Key Features

• LCD Display Technology
• 3,500 Lumens
• Wide XGA Resolution
• 3,800 hour lamp life (typical)
• 4,000:1 Contrast Ratio
• 5.6kg (12.3lb.)
• Ultra Short Throw (0.36:1)
• Native Widescreen
• PC Free Presentations
• Direct Power Off
• Mouse Emulation Remote

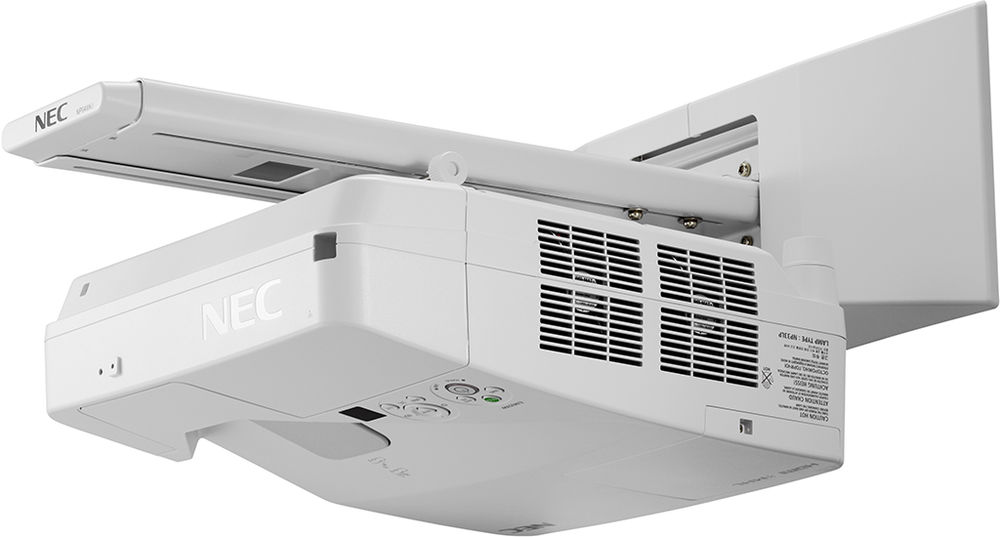

• Includes Wall Bracket
• Micro Lens Array
• Logo capture and display
• PIN Code Security
• Quick Power On
• Quick Power Off
• DICOM Simulation Mode
• Monitor Out
• Network Control

NEC UM351W
Brochure

Instruction Manual

• PC Free Presentations
• Ultra short throw

NEC UM351W Specifications

Categories	PC Free Ultra Short Throw
Manufacturer	NEC (Click for rest of range)
NEC UM351W Optical Features
System	3 * 0.59" LCD
Resolution	WXGA (1280*800)
Aspect Ratio	16:10
Lumens	3,500
ECO Mode Lumens	2,100
Contrast	4,000:1
Lamp	255W/160W Eco
Lamp Life	3,800hrs. (6,000hrs. ECO mode)
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.36 - 0.36:1
Image Size	58"-110" diagonal
Throw Distance	0.45-0.85m
Throw distance for 100" image	0.78 - 0.78m
KeystoneCorrection	±10° (Vertical)
NEC UM351W Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080i, 720p
Horizontal Freq.	15-100kHz
Vertical Freq.	24-120Hz

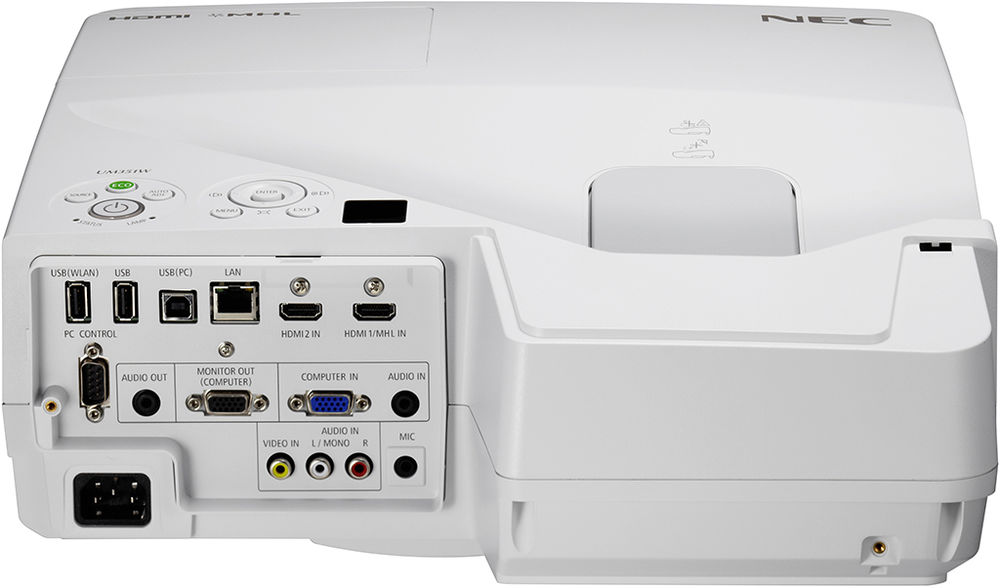

NEC UM351W Terminals
HDMI	2
RGBHV (15-pin HD)	1
Composite	1
Monitor Out	Yes
Audio In	2
Audio Out	1
USB	3
RS-232	1
Network Ready	Yes
NEC UM351W General
Speakers	20w mono
Remote Control	NEC UM351W + Mouse Emulation
Noise	38db (28db ECO mode)
Dimensions	378*112*428mm (W*H*D)
Weight	5.60kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	344Watts
Manufacturers Warranty	3 year pan European loan support
Light Source Warranty	6 months/1000 hours (whichever first)
NEC UM351W Package Contents
Accessories	IR Remote Control (RD-448E); Mini D-SUB Signal Cable; Power Cord (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Wall-mount kit NP04WK

Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.

NEC UM351W Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
