NEC PA804UL BK Projector

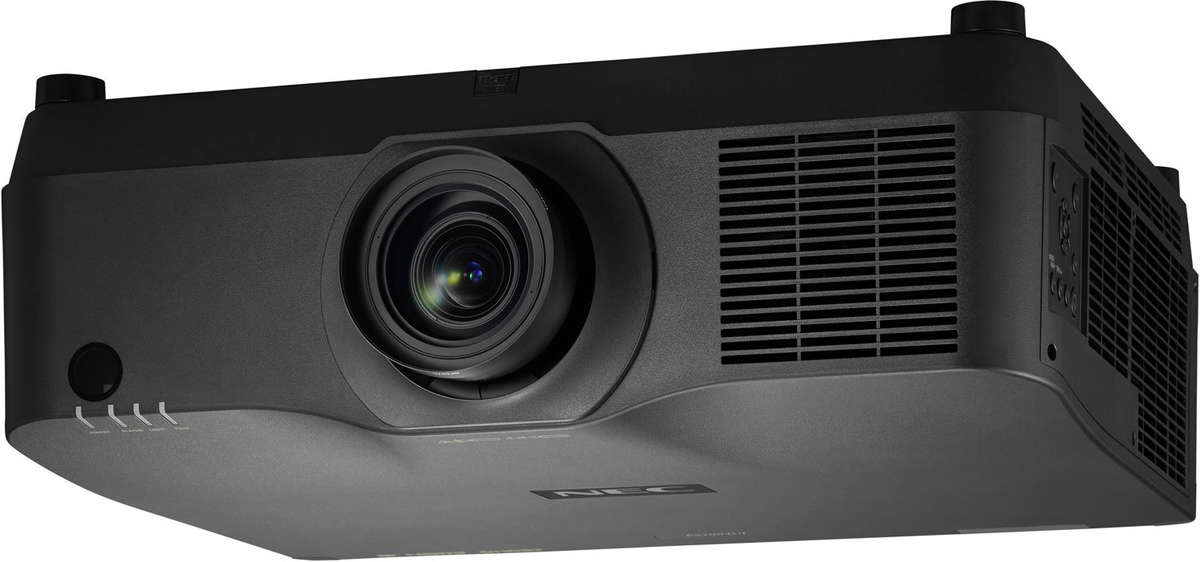

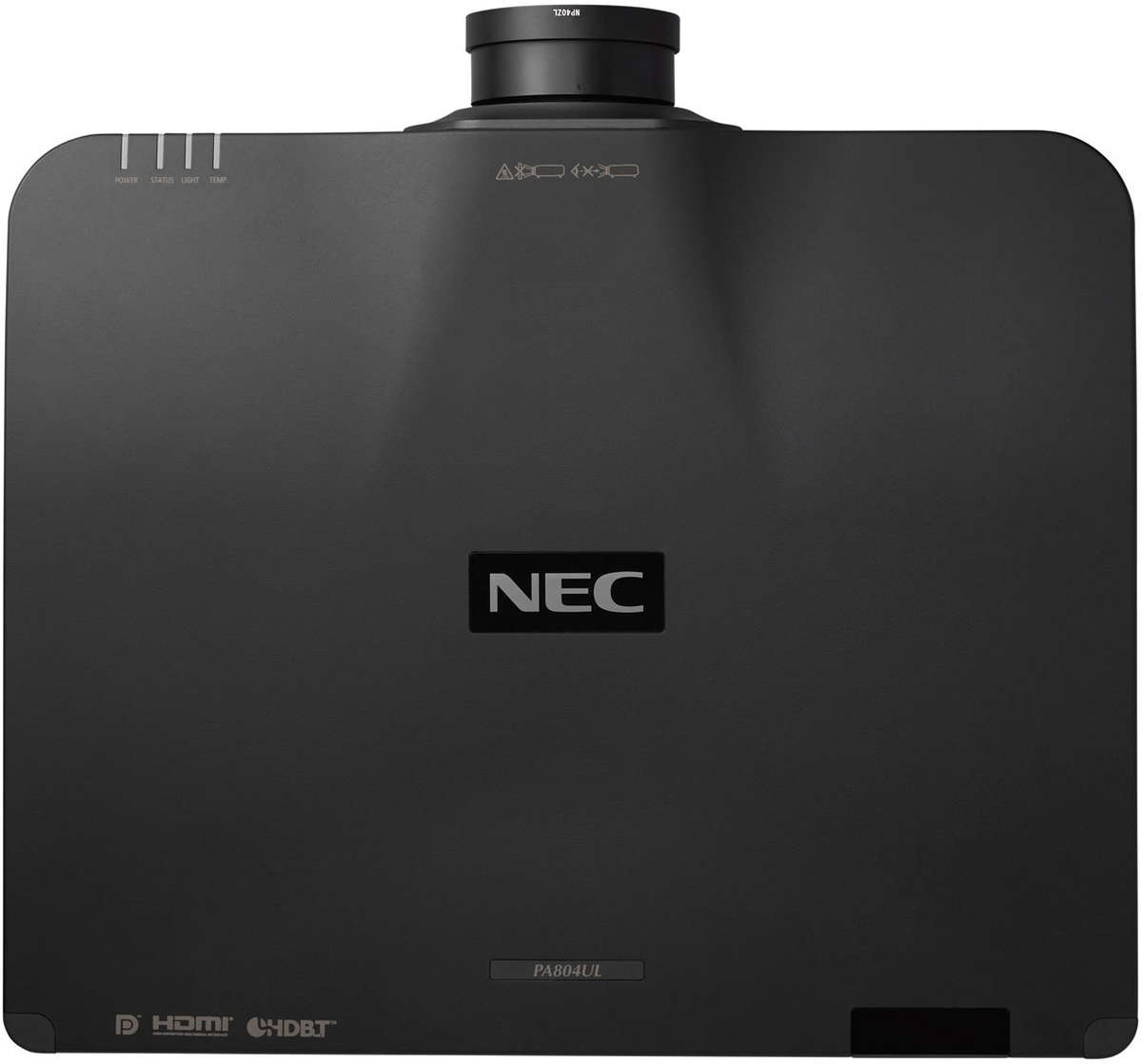

NEC PA804UL BK 8200 Lumens WUXGA projector product image. Click to enlarge.
NEC PA804UL BK 8200 Lumens WUXGA projector product image NEC PA804UL BK 8200 Lumens WUXGA projector connectivity (terminals) product image NEC PA804UL BK 8200 Lumens WUXGA projector product image NEC PA804UL BK 8200 Lumens WUXGA projector product image NEC PA804UL BK 8200 Lumens WUXGA projector product image
£5406 (£6487.20 inc. VAT)
Availability: In stock

NEC PA804UL BK Key Features

  • LCD Display Technology
  • 8200 Lumens Colour Light Output
  • 6 Optional Lenses (Click Here)
  • WUXGA 1920*1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 3,000,000:1 Contrast Ratio
  • 24.1kg (53.1lb.)
  • Finished in Black
  • 360° Installation
  • Native Widescreen
  • Lens Shift
  • Seamless Switching
  • Portrait Mode
  • HDBaseT
  • Picture-In-Picture
  • Picture-and-Picture
  • Interchangeable Lens System
  • Can Be Installed Vertically
  • Lens-centred Design
  • Logo capture and display
  • PIN Code Security
  • Warrantied for 24/7 use
  • DICOM Simulation Mode
  • 3D Projection Ready
  • Stacking Function
  • Monitor Out
  • Network Control

NEC PA804UL BK Downloads


NEC PA804UL BK Specifications

Categories 3D Ready
Conference / Large Venue
HDBaseT
Interchangeable Lens
Lens Shift
LED/Laser HD
Manufacturer NEC (Click for rest of range)

NEC PA804UL BK Optical Features
System 3 * LCD
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
Lumens 8,200
ECO Mode Lumens 6,560
Colour Light Output 8200 Lumens
Eco Mode CLO 6560 Lumens
Contrast 3,000,000:1
Lamp Laser Light Source
Lamp Life 20,000hrs.
Lens Click for optional lenses
Interchangeable Yes
Image Size 30"-300" diagonal
Lens Shift H:±20, V:+10, -50
KeystoneCorrection ±40° (Vertical)
±40° (Horizontal)

NEC PA804UL BK Compatibility
Computer Resolutions 4K, UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions 4K, UHD, HD, 720p, PAL, SECAM, NTSC

NEC PA804UL BK Terminals
HDMI 2
DisplayPort 1
RGBHV (15-pin HD) 1
Monitor Out Yes
Audio In 2
Audio Out 1
USB 1
RS-232 1
HDBaseT 1
Network Ready Yes

NEC PA804UL BK General
Speakers No
Remote Control NEC PA804UL BK only
Noise 30db (28db ECO mode)
Dimensions 599*208*490mm (W*H*D)
Weight 24.10kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 615Watts
Manufacturers Warranty 3 year pan European
Light Source Warranty 3 years/10000 hours (whichever first)

NEC PA804UL BK Package Contents
Accessories IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM

Additional Specs
Special Characteristics 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control

Green Features
Energy Efficiency ECO scheduler; Intelligent Power Management; Less than 0.3W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function
Ecological Materials 100% recyclable packaging; Downloadable manuals
Ecological Standards ErP compliant

Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.

NEC PA804UL BK Optional Lenses

Projector lens
Description Price Inc. VAT
NEC NP44ML-PA4 Ultra Short Throw Mirror Lens £4033 £4839.60
NEC NP11FL Fixed wide angle for NEC PA series Lens Discontinued
NEC NP40ZL Motorized Ultra Short Throw Zoom Lens £972 £1166.40
NEC NP12ZL Short zoom for the NEC PA series Lens £815 £978.00
NEC NP41ZL Motorized Mid to Semi Long Throw Lens £400 £480.00
NEC NP13ZL Middle zoom for the NEC PA series Lens £230 £276.00
NEC NP14ZL Middle zoom for the NEC PA series Lens Discontinued
NEC NP43ZL Motorized Semi Long Throw Zoom Lens £756 £907.20

Back To Top

NEC PA804UL BK Accessories

Description Price Inc. VAT
Seddon Flight Case 25 Hard case for projectors weighing 10-25kg £167.00 £200.40
Projector brackets and stands

Projector ceiling mounts and brackets

 Projection Screens

Projection Screens

 Twisted Pair extenders for LCD and LED large format displays

Twisted pair extenders, distribution and switching

 HDMI, DVI, DisplayPort and twisted pair cables for large format displays

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

 Scalers and video processors for large format displays

Scalers, EDID emulators, multi-windows processors and capture hardware

NEC PA804UL BK Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
NEC PA804UL WH LCD 8200 24.1 £5406 £6487.20
BenQ LU9255 DLP 8500 25 £5596 £6715.20
Panasonic PT-REQ80BEJ DLP 8000 27 £14173 £17007.60
Panasonic PT-REQ80WEJ DLP 8000 27 £14487 £17384.40
Panasonic PT-REZ80BEJ DLP 8000 28.7 £11544 £13852.80
Panasonic PT-REZ80WEJ DLP 8000 28.7 £11544 £13852.80
Panasonic PT-RZ890WEJ DLP 8500 21.3 £11022 £13226.40
Vivitek DU6198Z DLP 8500 26 £7252 £8702.40
Vivitek DU7099Z-BK DLP 7600 20.6 £3972 £4766.40
Vivitek DU7199Z-BK DLP 8600 20.6 £4482 £5378.40
